HDMI , 200 Meters , Full HD 1080P , Extender

INTRODUCTION

The HDMI Extender over single CAT5e/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5e/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI Transmitter and Receiver, over ONE CAT5e/6 extender is your substantial HDMI extender tool. The HDMI Extender also support IR re-transmitting, so you can control the Source which is 120 meters outside using the HDMI extender.

SPECIFICATION

FEATURES

1. Signal transmission :CAT5e or CAT6(recommended) cables up to 120

meters instead of HDMI cables are connected between TX and RX

Extender.

2. Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

3. Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i.

4. Support CEC.

5. Support 20~60KHz IR working.

6. protocol compliant TCP/IP one transmitter and multiple receivers,

with a maximum of 253 receivers.

PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

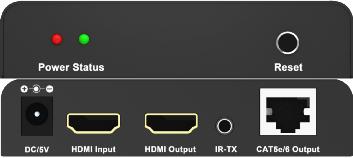

Power --------------------------------------Power Indicator

Status -----------------------------------Working Indicator

Reset ------------------------------------------Reset button

DC/5V ------------------------------------Power Input port

HDMI Input -------------------------------HDMI Input port

HDMI Output ------------------------------HDMI Loopout

IR-TX -----------------------------------------IR transmitter

CAT5e/6 Out -----------------------------CAT5e/6 output

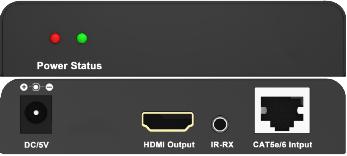

Power --------------------------------------Power Indicator

Status -----------------------------------Working Indicator

DC/5V ------------------------------------Power Input port

HDMI Output --------------------------------HDMI output

IR-RX --------------------------------------------IR receiver

CAT5e/6 Input ----------------------------CAT5e/6 Input

CONNECT AND OPERATE

Before installation, please make sure all devices you wish to connect have been turned off.

1. Connect HDMI signal source to the transmitter of HDMI extender.

2. Use LAN cable(Recommend:CAT5e/6) to connect transmitter and

receiver of HDMI Extender.

3. Connect the display equipment with HDMI connector to the receiver of

HDMI extender.

4. Power on all connected devices, Choose the input of the display device

to its HDMI channel.
