HDMI Over Coaxial , With IR , Distance Of 100-300 Meters , Extender

Introduction

HDMI to SDI extenders, HDMI signal can be transmitted over long distances via a single coaxial cable, which has extended transmission speed, uncompressed, zero latency, etc., can greatly reduce the cost of long-distance transmission of HDMI signal transmission distance of 100-300 meters.

Features

1. SDI interface operates at bit rates of 2.970 G bit/s, 2.970/1.001G bit/s, 1.485

G bit/s, 1.485/1.001G bit/s and 270 Mb/s.

2. Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60,

1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

3. HDMI TO SDI EXTEDNER:

(3.1) 480i/576i to SD-SDI (SMPTE 259M-C, at bit rates of 270 M bit/s)

720p/1080i to HD-SDI (SMPTE 292M, at bit rates of 1.485 G bit/s or

1.485/1.001 G bit/s)

(3.2 )1080p to 3G-SDI (SMPTE 424M/425M-AB, at bit rates of 2.970 G bit/s

and 2.970/1.001 G bit/s)

4. SDI Extender supports distance between TX to RX:100 meters (3G-SDI),

200 meters (HD-SDI), or 300 meters (SD-SDI)

5. Support 20~60KHz IR re-transmitting.

Panel descriptions

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

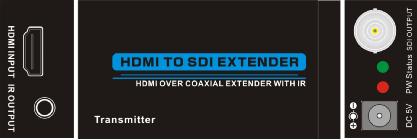

Transmitter Panel

HDMI INPUT ------------------------------- HDMI input Interface

IR OUTPUT ----------------------------------- IR output Interface

SDI OUTPUT ------------------------------- SDI output Interface

Status --------------------------------------- Input Status Indicator

PW--------------------------------------------------- Power Indicator

DC 5V-------------------------------------------5V Power Interface

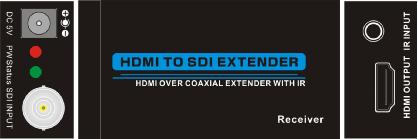

Receiver Panel

DC 5V-----------------------------------------5V Power Interface

IR INPUT -------------------------------------- IR Input Interface

PW------------------------------------------------- Power Indicator

Status---------------------------------------Input Status Indicator

SDI INPUT ---------------------------------SDI output Interface

HDMI OUTPUT ------------------------HDMI Output Interface

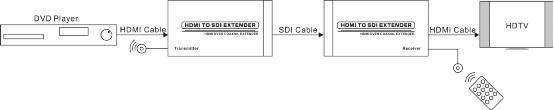

Installation and Operation

1. Connect the HDMI cable between TX and HDMI Source;

2. Connect SDI cable between TX and RX;

3. Connect the HDMI cable to RX and HDMI terminal display;

4. TX and RX respectively connected to power adapter;

5. Open the HDMI source and HDMI display device power products began

to work.
