4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
4K X 2K 60Hz 18Gbps 8 Port HDMI Switch
Specifications
Brand Name :
ZENHON
Model Number :
T-308E
Certification :
CE,ROHS,REACH
Place of Origin :
CHINA
MOQ :
50 sets
Payment Terms :
L/C, T/T
Supply Ability :
300000 sets per month
Delivery Time :
20-30 days
Packaging Details :
color box
Product name :
HDMI 8 x 1 , 4K x 2K , 60Hz , Switcher
Input :
HDMIx8
output :
HDMIx1
material :
iron
wright :
0.8kg
Max Resolution :
4K
size :
276*110*25mm
chip origin :
Taiwan
compatibility :
HDCP 2.2
Warranty :
2 year labor warranty, life time technology warranty
Price :
Negotiable
Description

HDMI 8 x 1 , 4K x 2K , 60Hz , Switcher

TECHNICAL PARAMETER IN DETAIL

Product 8X1 HDMI SWITCH
HDMI Source Input Port 8
Display Device Output Port 1
Source Port Connector 19 PIN HDMI(A TYPE)
Display Device Port Connector 19 PIN HDMI(A TYPE)
HDCP Compliant YES
Source Device Selection Push Button IR Remote Control
Input Video Signal 0.5-1.0 Volts P-P
Input DDC signal 5 Volts P-P(TTL)
Deep Color 48 bit
Single Link Range 3840x2160@60
HDMI Version HDMI2.0
Bandwidth Up to 600Mhz
Signal Speed Up to 18Gbps
The length of input cable ≤10M
The length of output cable ≤10M
The cable standard 28AWG HDMI2.0
Vertical Frequency Range 60Hz
Power Consumption(max) 6.5 Watts
Operation Temperature 0℃ TO 70℃
Working Voltage DC 5V
Power Adaptor 5V 2A
Net Weight(Kg) 0.8
Dimension: L×W×H(mm) 276×110×25

FEATURES

1. To support the simultaneous transmission of two video streams, multiple

video signals can be transmitted to the same screen;

2. Switching is done via itself automatically when signal present on the ports;

3. Compliant with HDMI2.0, HDCP2.2 and DVI 1.0;

4. Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR

4:4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4;

5. Support 3D frame sequential video format up to 1080p@60;

6. Support high resolution VESA mode video format up to QSXGA@60Hz;

PANEL INTRODUCTION

4K X 2K 60Hz 18Gbps 8 Port HDMI Switch

IR Ext ------------------------------IR Receiver Extension Port

IR -------------------------------------------------IR Receiver Port

L1-L8 -----------------------------------HDMI Input1-8 Indicator

SELECT -----------------------------------Input Selector button

POWER ------------------------------------------Power Indicator

ON/OFF ---------------------------------------------Power switch

4K X 2K 60Hz 18Gbps 8 Port HDMI Switch

DC/5V --------------------------------------DC Power Input Port

HDMI OUTPUT ------------------------------HDMI Output Port

HDMI INPUT1-8 ------------------------------HDMI Input Ports

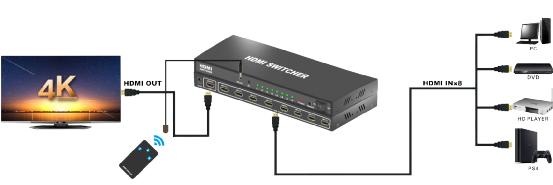

APPLICATION

It switches several routes HDMI signals from source device such as DVD, Satellite Receiver, Set-top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat Panel Display.

4K X 2K 60Hz 18Gbps 8 Port HDMI Switch

1. Connect high definition display device such as HDTV TO HDMI Switch's

output port.

2. Connect source device such as DVD and ps4 TO HDMI Switch's input

ports.

3. After all the connections have been successfully done and then power on,

you can select the information you want to view or listen
