Scart to HDMI, + Stereo, AV Signal Converter

1.0 INTRODUCTION

This scaler Box is designed to display your analog video/YC//RGB images on HDTV’s with better viewing resolutions. It can upscale any SCART input source to HDMI output with a wide-range of resolutions. Incredibly, this device can also transfer sounds allowing everyone to enjoy both HD images and sounds.

2.0 SPECIFICATIONS

3.0 FEATURES

1. Scales up SCART to HDTV resolution up to1080p;

2. Support input video systems NTSC/PAL/SECAM;

3. Digital Noise Reduction – Minimizes picture noise, reproducing images that are true to the original;

4. Block Noise Reduction – Effectively minimizes all MPEG noise, Improving the digital quality of HDTV broadcasts particularly, where block noise happens most;

5. MPEG Noise Reduction – Reduce mosquito noise for MPEG video images without losing detail;

6. 3D (frame based) motion adaptive noise reduction;

7. Advanced 3D motion adaptive de-interlace;

8. Automatic 2:2/3:2 film mode detection.

4.0 PACKAGE CONTENTS

Before attempting to use this unit please check the packing and make sure the following items are contained in the shipping carton:

1. Scart to HDMI Converter----------------------1Pcs

2. 5V DC Power Supply---------------------------1Pcs

3. User Manual--------------------------------------1Pcs

5.0 PANEL DESCRIPTIONS

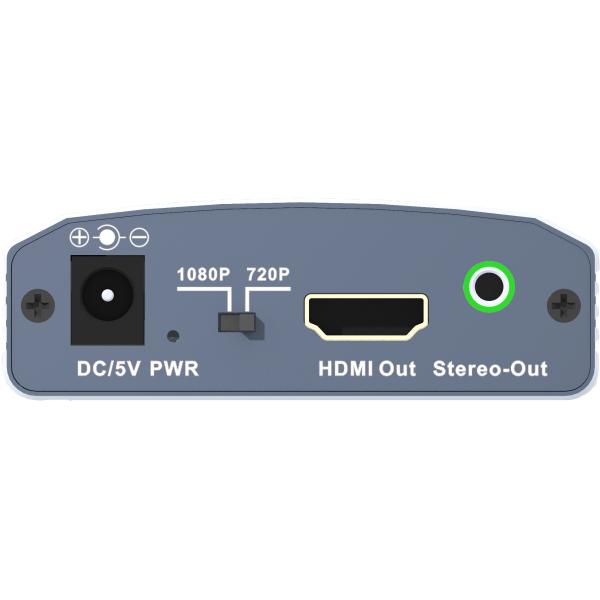

Please study the panel drawings below and become familiar with the signal input(S),output(S)and power requirements.

1. Scart Input -------------------------------------------Scart Input

2. DC/5V -----------------------------------------------DC 5V Input

3. PWR ---------------------------------------------Power Indicator

4. 720P/1080P--------------------------------720p/1080p switch

5. HDMI Out ------------------------------------------HDMI Output

6. Stereo-Out ----------------------------------------Stereo Output

6.0 CONNECTION AND OPERATION

Before installation, please make sure all devices you wish to connect have been turned off.

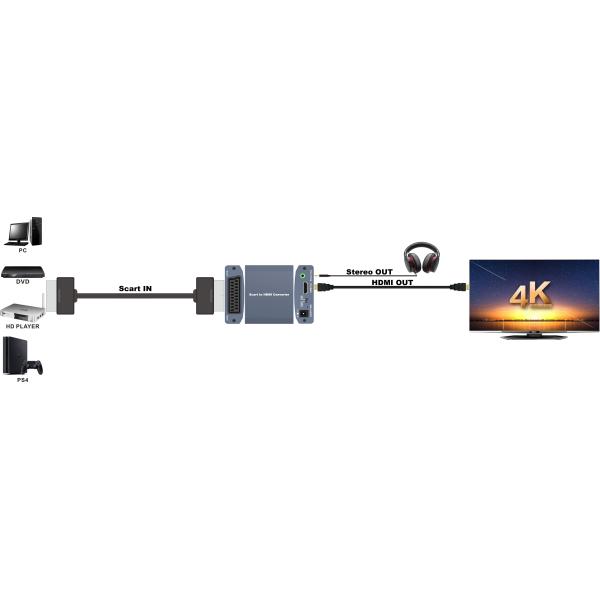

1. Connect the Scart input of this product to the Converter.

2. Connect the HDMI output from converter to the this Displayer.(Input cables are optional)

3. Insert the DC side of 5V power supply into this product and then connect the AC side of the power supply into the wall outlet.

4. Power on all connected devices, Choose the input of the display device to its HDMI channel.

5. The image does not need to be adjusted, the Converter will position it automatically, the user may adjust the horizontal position under some extreme condition.

Attention: Insert / Extract cable gently.

7.0 INSTALLATION AND PRECAUTIONS

To avoid electric shock , product damage and to protect your safety , please notice the following:

1. Please slowly plug or unplug signal cables and do not often plug , unplug , or shake them.

2. The equipment should not be placed under the sun , rain and damp or unventilated environment.

3. Liquid items should not be placed on the equipment.

4. Do not install the equipment near heat sources such as fire , power , or other amplifiers that produce heat.

5. Do not insert the metal or other objects to the equipment in addition to connecting cables to ports.

6. Do not demolish the equipment by yourself ; it should be maintained by professional maintenance staff.
