HDMI Over Single CAT5e/6(120M) , 4K x 2K , Extender

Introduction

The 4K 120M HDMI extender uses one single Cat5e/6(recommended)cable instead of HDMI cable,you can extend the 4K signal to 120 Meters.The purpose of the extender is to achieve long-distance signale transmission with low- cost wires.

Features

1. Signal transmission :cat5e or cat-6(recommended) cables up to 120

meters instead of HDMI cables are connected between TX and RX

Extender;

2. Support HDMI1.4v;

3. Support input/Output Resolution :

4Kx2K@30Hz/1080p/1080i/720p/576p/576i/480p/480i;

4. Support Multi-receiver cascade transmission;

5. Support 20~60KHz IR dual re-transmitting;

6. Support CEC;

7. Audio format support :

DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;

Panel Descriptions

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements.

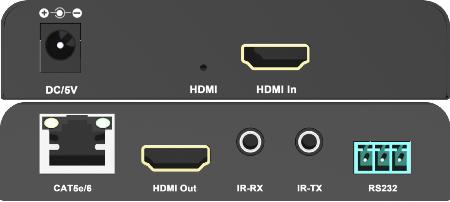

HDMI EXTENDER TX PANEL

DC 5V------------------------------------DC Power Input Port

HDMI -------------------------------------HDMI Input indicator

HDMI Input -----------------------------------HDMI Input port

Cat5e/6 -------------------------------LAN cable Output port

HDMI Output ------------------------------HDMI Output port

IR-RX ------------------------------------------IR receiver port

IR-TX --------------------------------------IR Transmitter port

RS232 ----------------------------------------------RS232 port

HDMI EXTENDER RX PANEL

DC 5V------------------------------------DC Power Input Port

Select -----------------------------switch input signal Button

RJ45 --------------------------------------RJ45 Input indicator

HDMI ------------------------------------HDMI Input indicator

HDMI Input ----------------------------------HDMI Input port

Cat5e/6 In ---------------------------------Cat5e/6 Input port

Cat5e/6 -------------------------------LAN cable Output port

HDMI Out ----------------------------------HDMI Output port

IR-RX ------------------------------------------IR receiver port

IR-TX --------------------------------------IR Transmitter port

RS232 ----------------------------------------------RS232 port

Connect and Operate

ApplicationⅠ

(Point to point application)

ApplicationⅡ

(Multi-receiver cascade transmission)

1. Connect source device with transmitter by one HDMI cable(Max=10M).

2. Connect display device with receiver by one HDMI cable(Max=10M).

3. Connect TX with RX by one cat5e/6(Max=120M).

4. One pair of IR-RX and IR-TX cable,connected to the 3.5mm IR-RX and

IR-TX ports of the transmitter and receiver respectively.

5. Connect the power supply to the TX and RX.

6. LED indicator:When a signal is input to work,steady blue light.

7. Select the input source via the select button on the RX.
