3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher
Specifications
Brand Name :
ZENHON
Model Number :
SDI-304
Certification :
CE,ROHS,REACH
Place of Origin :
CHINA
MOQ :
30 PCS
Payment Terms :
L/C, T/T
Supply Ability :
300000SETS,PER MONTH
Delivery Time :
20-30DAYS
Packaging Details :
COLOR BOX
PRODUCT NAME :
SD/HD/ 3G， SDI 4 x 1，SDI Signal Switcher
MATERIAL :
ALL-METAL
COLOR :
BLACK
SIZE :
150*64*25MM
WEIGHT :
0.36KG
CHIPSET :
TAIWAN
MAX RESOLUTION :
1080P
BRAND NAME :
ZENHON
INPUT :
SDIx4
OUTPUT :
SDIx1
MODEL NUMBER :
SDI-304
PLACE OF ORIGIN :
SHENZHEN,CHINA
SERVICE :
OEM
WARRANTY :
2 years labor warranty, life time technology warranty
Price :
Negotiable
Description

SD/HD/3G, SDI 4 x 1,SDI Signal Switcher

1.0 Specifications

Weight 350g
SDI Switcher Input Ports 4 x BNC Female input ports
SDI Switcher Output Port 1 x BNC Female output port
Dimensions (mm) 150 (L) X 65(W) X 25 (H)
ESD Protection Human Body Model ± 8kV (air-gap discharge)± 4kV (contact discharge)
Power Supply DC 5V 1A
Frequency Bandwidth 3Gbps
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature 20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 3.5W

2.0 Features

1. Supports 4 SDI input signal switch to 1 HD SDI monitor.

2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3. Built-in cable equilibrium, clock recovery and drive.

4. Supports resolutions up to 1920x1080@60Hz.

5. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.

6. Supports 5-12V wide voltage input.

3.0 Package

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

1. 4x1 SDI Switcher --------------------------------------------- 1PCS

2. 5V 1A DC Power Supply adapter ------------------------ 1PCS

3. Operation Manual -------------------------------------------- 1PCS

4.0 Operation controls and Functions

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

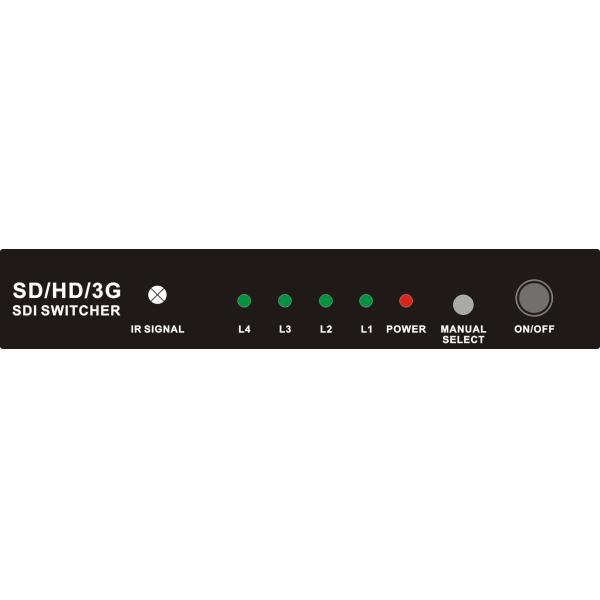

Front Panel

3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher

1. IR SIGNAL------------------------------IR Signal Receiver

2. L4------------------------------------------- Input 4 Indication

3. L3------------------------------------------- Input 3 Indication

4. L2--------------------------------------------Input 2 Indication

5. L1------------------------------------------- Input 1 Indication

6. POWER-----------------------------Power input Indication

7. MANUAL SELECT--------- Input Signal Switch Button

8. ON/OFF----------------------------------------Power Switch

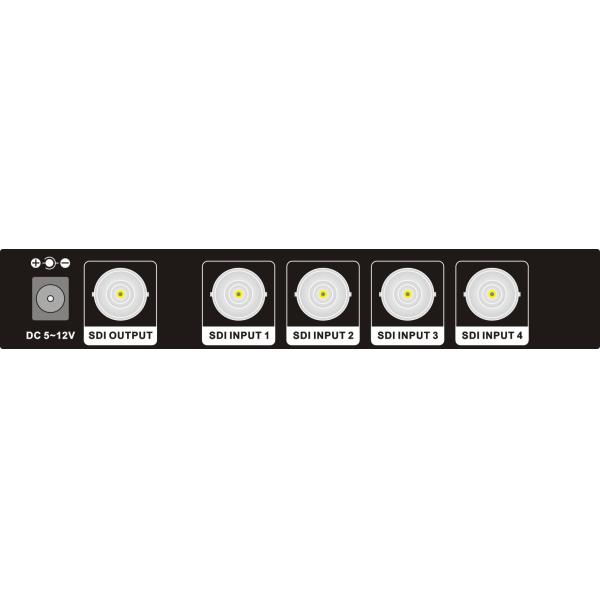

Rear Panel

3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher

9. DC 5V-12V-------------------------Power input Interface

10. SDI OUTPUT-----------------------SDI Output Interface

11. SDI INPUT1-4-------------------SDI Input 1-4 Interface

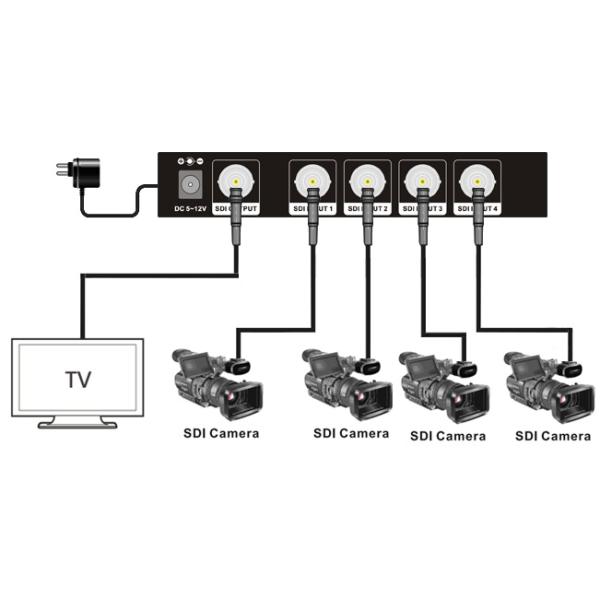

5.0 Application Example

3G 1920x1080 3Gbps 4 X 1 SDI Signal Switcher

1. Connect the Coaxial(RG6U) Cable between SDI signal source and SDI

INPUT of SDI Switcher.

2. Connect the Coaxial Cable between SDI Switcher and SDI display.

3. Connect the power adapter between SDI Switcher and outlet.

4. Open the power supply of SDI signal source and the display. Choose

corresponding input ports, then it works.

5. You can select the required signal source via a button or remote control.
