SD/HD/3G,SDI 2 x 1,SDI Signal Switcher

1.0 Introduction

This is a SDI signal switcher, It can switch more groups of SDI signal to a SDI HD monitor by manual button or remote control. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

2.0 Specifications

3.0 Features

1. Supports 2 SDI input signal switch to 1 HD SDI monitor.

2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3. Built-in cable equilibrium, clock recovery and drive.

4. Supports resolutions up to 1920x1080@60Hz.

5. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.

6. Supports 5-12V wide voltage input.

4.0 Package

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

(1). 2x1 SDI Switcher --------------------------------------------- 1PCS

(2). 5V 1A DC Power Supply adapter ------------------------ 1PCS

(3). Remote control-------------------------------------------------1PCS

(4). Operation Manual -------------------------------------------- 1PCS

5.0 Operation controls and Functions

Please study the panel drawings below and become familiar with the signal input(s), output(s) and power requirements.

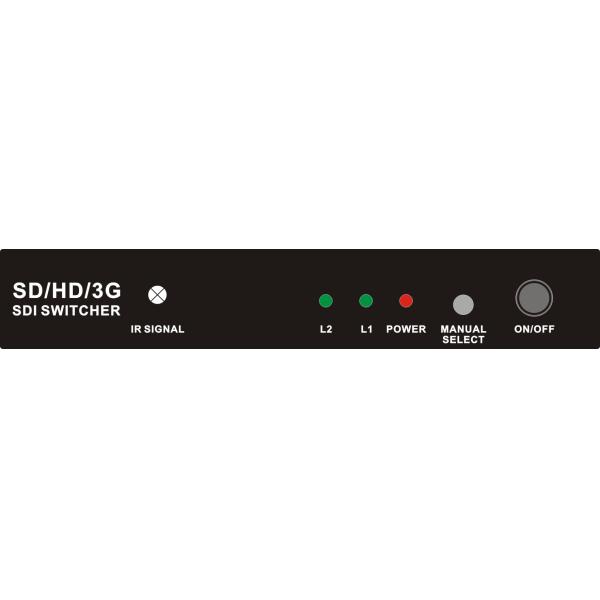

Front Panel

1. IR SIGNAL------------------------------IR Signal Receiver

2. L2--------------------------------------------Input 2 Indication

3. L1------------------------------------------- Input 1 Indication

4. POWER-----------------------------Power input Indication

5. MANUAL SELECT--------- Input Signal Switch Button

6. ON/OFF----------------------------------------Power Switch

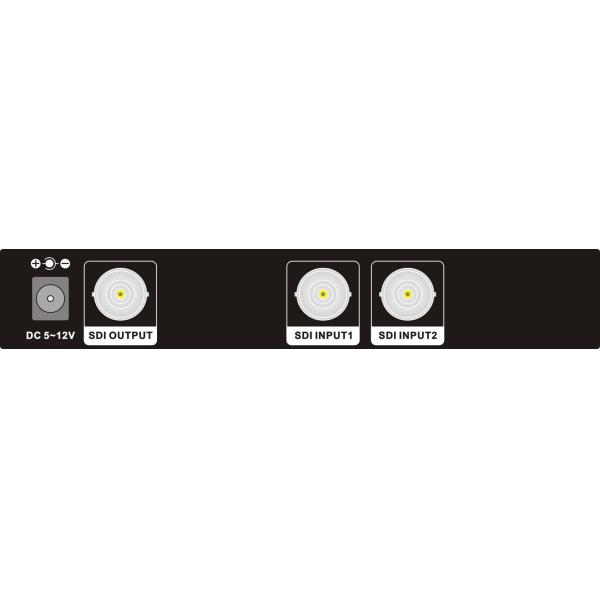

Rear Panel

7. DC 5V-12V-------------------------Power input Interface

8. SDI OUTPUT-----------------------SDI Output Interface

9. SDI INPUT1-2-------------------SDI Input 1-2 Interface

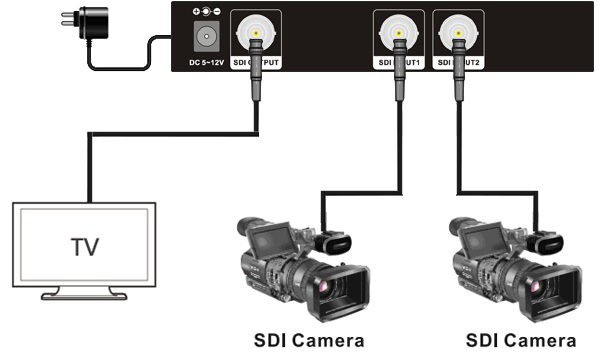

6.0 Application Example

1. Connect the Coaxial(RG6U) Cable between SDI signal source and SDI

INPUT of SDI Switcher.

2. Connect the Coaxial Cable between SDI Switcher and SDI display.

3. Connect the power adapter between SDI Switcher and outlet.

4. Open the power supply of SDI signal source and the display. Choose

corresponding input ports, then it works.

5. You can select the required signal source via a button or remote control.
