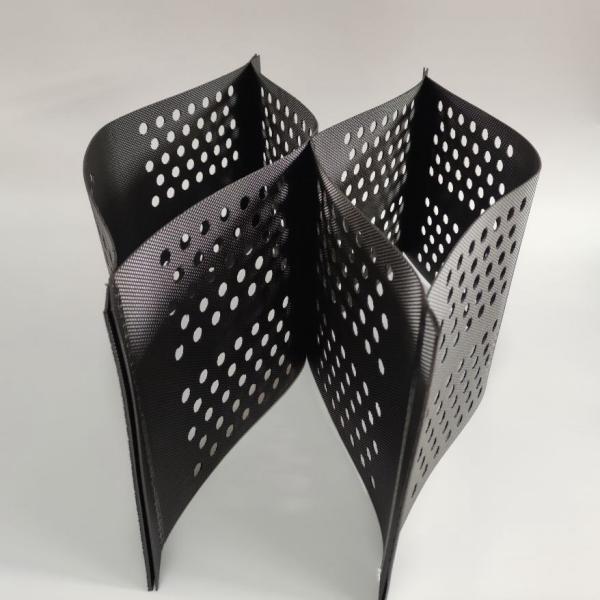

Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway
Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway
Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway
Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway
Specifications
Brand Name :
Geomax
Model Number :
100-356
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
1000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
2000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
HDPE
Type :
100-356
Color :
Black
Welding space :
356mm
Thickness :
1.5mm
Height :
100
Surface :
Perforated
Standard :
ASTM
Description

PRODUCT DESCRIPTION

Driveway Hdpe Geocell Gravel Stabilizer Grid Geocell

Product Introduction

Geocell Grid Panels are well known that an ideal soil material for use in civil engineering applications is one that compacts well and drains water freely. The problem is that the better draining soils are difficult to confine in place. Our Geo cellular
confinement system provides a solution. It is being widely used in construction, such as highway, railway, bridge, dyke, etc.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

Application

Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway

SOIL REINFORCEMETN

Geomax®(Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway

SLOPE PROTECTION

Geomax®(Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway

CHANNEL PROTECTION

Geomax®(Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway

RETAINING WALLS

Geomax®(Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

HCNS Manufacture

Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway

Exhibition Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway

Our Certificates and HDPE Geocell Testing reports

Railway Erosion Control Geocell Gravel Stabilizer Grid Roll For Driveway
