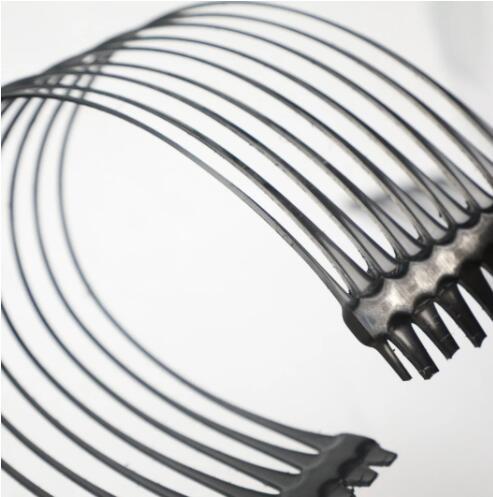

Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project
Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project
Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project
Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project
Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project
Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project
Specifications
Brand Name :
Geomax
Model Number :
Geogrids
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
5000 Square Meter
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
10000suqre Mater/Day
Delivery Time :
7 -15days
Packaging Details :
White or Yellow tape. We provide OEM mark
Material :
PP PET HDPE
Project Solution Capability :
graphic design, 3D model design, Others
Application: :
Basement, Road Construction .mine Laneway
Design Style :
Traditional
Product name: :
PP Uniaxial Geogrid
Color :
Black
Origin :
Anhui, China
Tensile strength :
47-85kn/m
Description

PRODUCT DESCRIPTION

Plastic Geogrids PP PE Uniaxial Geogrid For Road Railway Highway Project

Product Introduction

Product Features

Ecological balance Usually retaining walls are constructed of reinforced concrete, if an impermeable surface is not desired, it would be a sensible solution to create a filling area (but not for dam constructions). Choosing the ground reinforced with geogrid reinforcements instead of reinforced concrete retaining wall will also contribute to the ecological balance. While reinforced concrete wall surfaces cannot be vegetated, the surfaces of filled areas reinforced with geogrid reinforcements can be vegetated.

Easy installation
Geogrid is lightweight and easy to install. It's flexible, with virtually no memory, so it lays flat after being unrolled. Just unroll and make sure the geogrid is rolled out continuously, perpendicular to the wall face.
Multiple choice
Geogrid comes in multiple strength types.

Specifications

Uniaxial Geogrid(HDPE)
Properties Test Method Units MD Values
GG60 GG80 GG120 GG160
Polymer - - HDPE HDPE HDPE HDPE
Minimum Carbon Black ASTMD 4218 % 2 2 2 2
Tensile Strength @2% Strain ASTMD 6637 KN/m 16 23 35 47
Tensile Strength @5% Strain ASTMD 6637 KN/m 31 44 65 85
Tensile Strength ASTMD 6637 KN/m 60 80 120 160
Strain @ Ultimate Strength ASTMD6637 % 10 10 10 10
UV Resistance ASTMD 4355 % 98 98 98 98
Oxidation Resistance EN ISO 13438 % 100 100 100 100
Brittleness WASHDOT T926 - Pass Pass Pass Pass
Roll Width m 1 1 1 1
Roll Length m 75 50 30 30
Roll Weight kg 34 30 26 33


Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project

HCNS Manufacture

Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project

Exhibition Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project

Our Certificates and HDPE Geocell Testing reports

Uniaxial Soil Reinforcement Geogrid PP PE For Railway Highway Project
