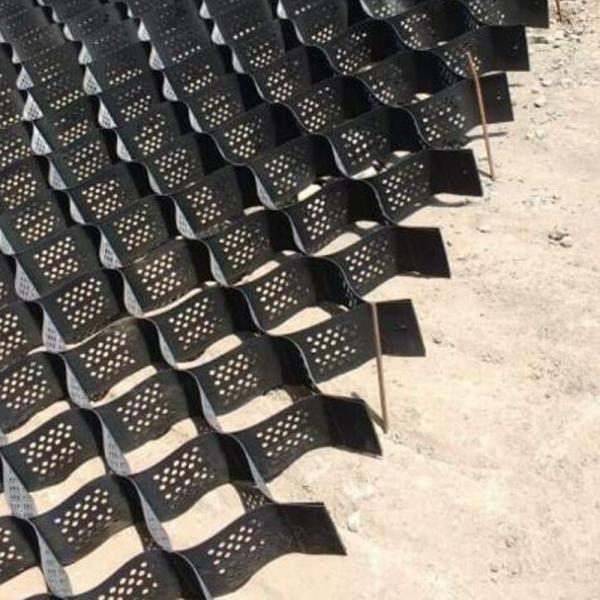

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
Specifications
Brand Name :
Geomax
Model Number :
1.5-100-445
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
1000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
2000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Raw Material :
HDPE Plastic
GeoMax Standard :
ASTM
Cell Height :
50mm-300mm
Geomax Model :
GM445
Color :
Black, green, brown, Black Yellow White Green, Green or as per request
Welding Space :
445mm
Cell Thickness :
1.5mm
Geocell Surface :
Textured&Perforated
Description

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

Product Introduction

Hdpe geocell, also known as "three-dimensional solid soil", is a new type of civil engineering material. It is made of high-strength polypropylene (PP) or polyethylene (PE) material, and on the basis of horizontal and vertical reinforcement, a honeycomb structure is formed by welding or fusion. This structure can effectively disperse and transfer loads, thereby improving the bearing capacity and stability of the soil.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

APPLICATION

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

INVENTION AND TESTING

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

PRODUCT AREA

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization

CERTIFICATES

Smooth And Perforated Honeycomb Black HDPE Geocell For Road Base Stabilization
