Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm
Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm
Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm
Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm
Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm
Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm
Specifications
Brand Name :
Geomax
Model Number :
1.5-100-445
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
1000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
2000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Raw Material :
HDPE Plastic
GeoMax Standard :
ASTM
Cell Height :
50mm-300mm
Geomax Model :
GM445
Color :
Black, green, brown, Black Yellow White Green, Green or as per request
Welding Space :
445mm
Cell Thickness :
1.5mm
Geocell Surface :
Textured&Perforated
Description

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

Product Introduction

Hdpe Geocells are a versatile and effective geosynthetic material used in various construction projects for soil stabilization, erosion control, and load support. They are honeycomb-like structures made from high-density polyethylene (HDPE) strips welded together at their intersections. Installing geocells properly is crucial for their effectiveness, and this guide will walk you through the steps involved in laying the best base for your next construction project.

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

APPLICATION

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

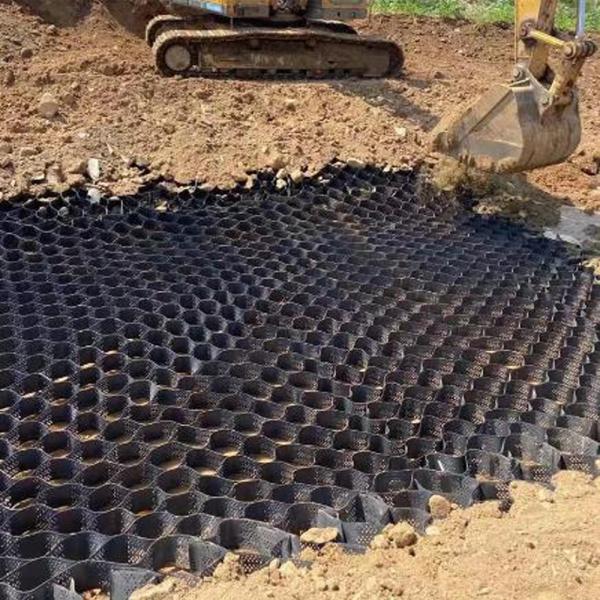

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

INVENTION AND TESTING

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

PRODUCT AREA

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm

CERTIFICATES

Plastic Hdpe Geocell Textured Geocell Geocell Used In Road Construction 356mm 445mm
