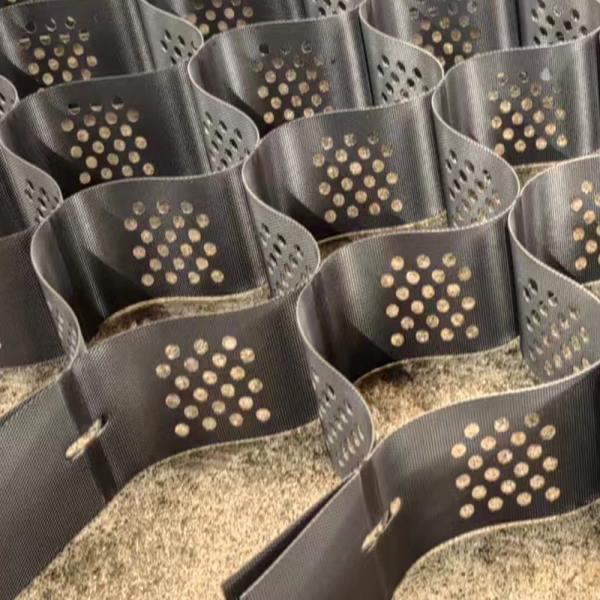

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver
HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver
HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver
HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver
HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver
HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver
Specifications
Brand Name :
Geomax
Model Number :
1.5-100-356
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
1000 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
2000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
GeoMax Material :
HDPE Plastic
GeoMax Standard :
ASTM
Cell Height :
100
Geomax Model :
GM356
Geocell Color :
black
Welding Space :
356mm
Cell Thickness :
1.5mm
Surface :
Textured&Perforated
Description

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver Slope Protection Geocell

Product Introduction

Hdpe geocell is a three-dimensional cellular structure that can be filled with soil, gravel, or other materials to stabilize steep slopes and prevent erosion. They are made of high-density polyethylene (HDPE) and have an open cellular structure that allows them to conform to the terrain.

Geocells are a revolutionary way of walling off and confining soil, aggregate, or other infill materials. These three-dimensional cellular structures can be expanded during installation so that they form flexible walls with interconnected strips reinforcing tensile strength while also preventing movement by holding everything in place through compression increases due to environmental factors like weathering.

When pressure is applied to the soil enclosed inside a geocell, as in a load support application, lateral strains are created on the perimeter cell walls. The 3D zone of confinement reduces soil particle lateral mobility, but vertical loading on the confined infill results in considerable lateral stress and resistan

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

APPLICATION

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver

INVENTION AND TESTING

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver

PRODUCT AREA

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver

CERTIFICATES

HDPE Black Driveway Grid Gravel Geocell 100mm 356mm For Gravel Driveway Paver
