Specifications
Brand Name :
GeoMax
Model Number :
GM200-445
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
2500 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
3000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
100% HDPE
Thickness :
1.5mm
Standard :
ASTM or GB Standard
Height :
200mm
Model Size :
200-445
Color :
Black; Yellow; Green
Welding Distance :
445mm
Surface :
Smooth;Textured
Density :
0.950 g/cm3
Description

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

GeoMax® Geocell Product Introduction

GeoMax® has been a trusted leader in the geotechnical industry for over 20 years, specializing in high-performance cellular confinement systems. With more than 100 patented innovations, our geocell products are designed to deliver exceptional strength, flexibility, and reliability — even for the most complex and demanding projects.
We are dedicated to upholding the highest quality standards throughout the entire production process. Every GeoMax® geocell system is manufactured in compliance with ISO and CE certifications, ensuring superior performance, safety, and global quality assurance for a wide range of engineering and environmental applications.

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

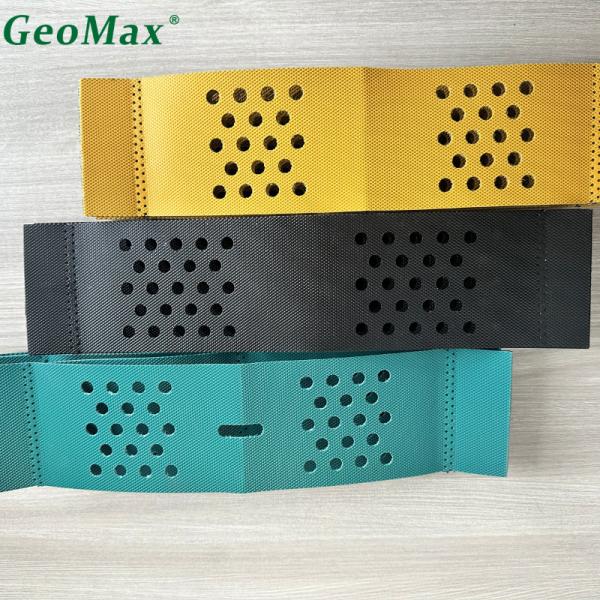

DETAILED PHOTOS

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

APPLICATIONS

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

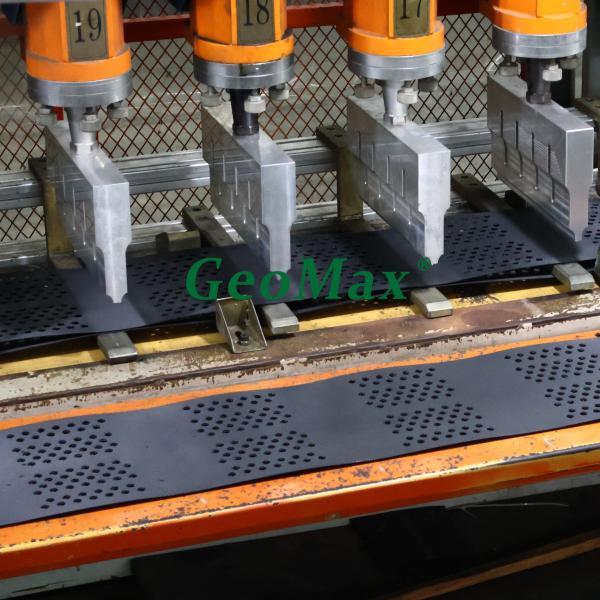

PRODUCTION LINE

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

INVENTION AND TESTING

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

PRODUCT AREA

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

CERTIFICATES

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

PHOTO OF THE EXHIBITION

Green Black HDPE Geocell 200mm Height 445mm Welding Space For Airport Runways Railways Support Pier

FAQ:

Q: What is Geocell made from?
A:
Our Geocell structures are made from thick high-density polyethylene (HDPE), offering strength comparable to concrete. The panels are ultrasonically welded for maximum durability and feature perforations for natural drainage.

Q: What if my project dimensions don’t match the Geocell panels?
A: No problem! We offer custom-designed Geocell grids to fit your project. The flexible panels can easily adjust around obstacles like drainage pipes, trees, and structures — something rigid materials like concrete or steel can't do.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Where is GeoMax Geocell produced?
A:
GeoMax Geocell is produced in Anhui, China, in facilities that follow strict quality control measures to ensure reliable, high-performance products.

Q: Do you offer customized sizes?
A: Yes, we can manufacture custom sizes based on your specific requirements.

Q: What standards do you follow?
A:
We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.

Q: What applications are best suited for Geocell?
A: Geocell is perfect for soil stabilization, erosion control, load support, and slope protection in projects like roads, railways, retaining walls, green roofs, and even landscaping.
