Specifications
Brand Name :
GeoMax
Model Number :
GM200-356
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
2500 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
3000㎡ per day
Delivery Time :
10-20 days
Packaging Details :

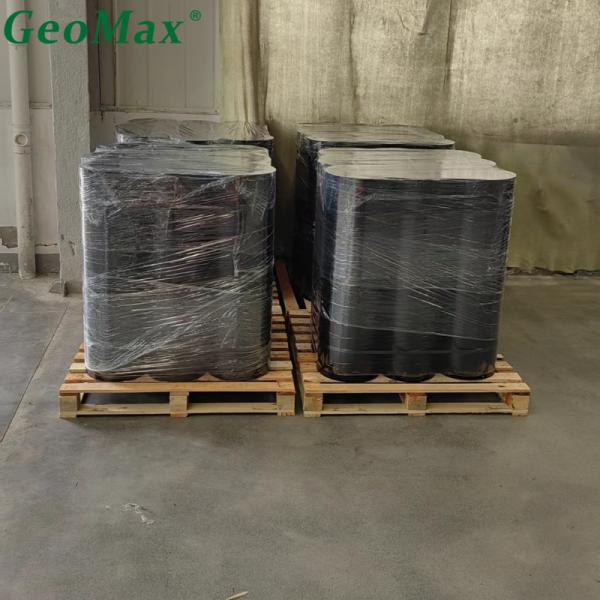

Folded strips are wrapped by film and layed on pallets or as requested
Geocell Material :
100% Virgin HDPE
Standard :
ASTM;GB Standard
Geocell Height :
200mm
Model :
200-356
Color :
Black;Yellow
Geocell Welding Space :
356mm
Thickness :
1.5mm
Geocell Surface :
Smooth;Textured;Perforated
Density :
0.935-0.965 g/cm3
Description

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

HDPE Geocell Product Introduction

With more than two decades of expertise, GeoMax® excels in the design and production of cellular confinement systems, offering cutting-edge, versatile products backed by over 100 patented innovations.

To guarantee top-tier performance, we manufacture the GeoMax® system in full compliance with ISO and CE standards, ensuring optimal quality. The system’s performance relies on superior seam strength, weld integrity, and high-quality materials. Our state-of-the-art manufacturing processes and strict quality control procedures enable us to provide reliable, high-performance solutions for a wide range of applications.

• Conforming to ISO 9001:2016 International Quality Standards
• CE Certified for Enhanced Safety and Performance
• Engineered to Deliver Consistent Results in Demanding Environments

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

DETAILED PHOTOS

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

APPLICATIONS

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

INVENTION AND TESTING

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

PRODUCT AREA

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

CERTIFICATES

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

PHOTO OF THE EXHIBITION

HDPE Geocell For Channel Protection Water Proof Ground Grid Gravel Mat 200mm Height 356mm Welding Space Textured Perforated

FAQ:

Q: What is Geocell made out of ?
A: Our honeycomb geocell structures are made out of a thick high-density polyethylene (HDPE) that's as strong as concrete. Engineers ultrasonically welded Geocell at certain intervals for maximum strength. Also, the product has perforation (holes) that provide natural drainage in your commercial project.

Q: What if my project dimensions are different than the Geocell panels ?
A: We can custom-design Geocell foundation grids to meet whatever project demands you have. Drainage pipes, trees, and other obstacles are not an issue when laying a solid geocell base. You can fit flexible Geocell panels around these objects that you can't do with concrete and steel.

Q: What GeoMax Geocell product testing has been done? Can I see the product specs?
A: Our support team would be glad to speak with you about product testing and specs. We consult your project through a free commercial evaluation to learn your specific needs. Schedule one now and we can get back to you in a few hours.

Q: Where is it manufactured ?
A: GeoMax geocell is manufactured in Anhui China.

Q: Can you do customize size ?
A: Yes, we can do customized strictly as your requirement.

Q: What Standard can you do?
A: We can do ASTM Standard and GB Standard, we can do customize standard as well.
