Specifications
Brand Name :
GeoMax
Model Number :
GM150-356
Certification :
CE
Place of Origin :
ANHUI CHINA
MOQ :
2500 ㎡
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
3000㎡ per day
Delivery Time :
10-20 days
Packaging Details :
Folded strips are wrapped by film and layed on pallets or as requested
Material :
100% Virgin HDPE Plastic
Standard :
ASTM OR GB
Geocell Height :
150mm
Model :
100-356
Geocell Color :
Black Or Customize
Welding Space :
356mm
Geocell Thickness :
1.5mm
Surface :
Smooth Textured Perforated
Density :
0.935-0.965 g/cm3
Keywords :
HDPE Geocell
Description

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

Geocell Product Introduction

Design vegetated reinforced and gravity walls that retain structural integrity even in poor base conditions with GEOMAX retaining walls. The GEOMAX hdpe geocell open-celled terraces create a natural environment for sustainable vegetation and allow stormwater infiltration. GEOMAX walls conform well to landscape contours, are resistant to environmental degradation, and install 25-30% faster than MSE block walls. HCNS hdpe geocell offers free design software to create GEOMAX Retaining Walls

Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150
Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

DETAILED PHOTOS

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

APPLICATIONS

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

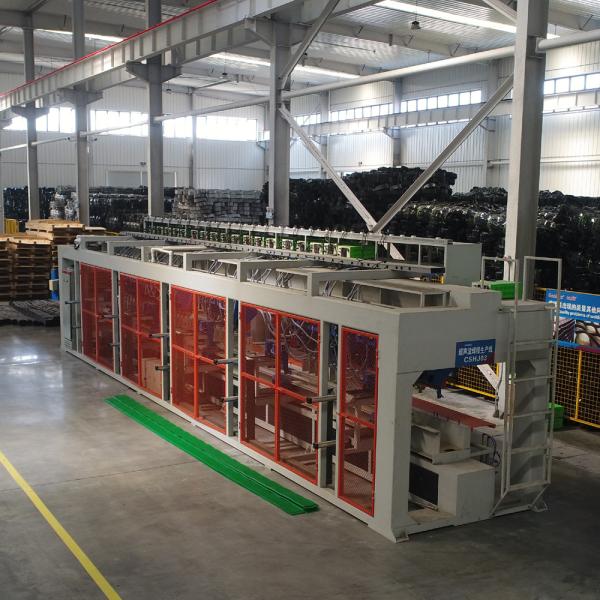

PRODUCTION LINE

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

INVENTION AND TESTING

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

PRODUCT AREA

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

CERTIFICATES

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

PHOTO OF THE EXHIBITION

Plastic HDPE Geocell Soil Stabilization Highway Driveway Construction Gravel Grid Geo Cell 150mm Height

FAQ:

Q: What is Geocell made out of ?
A: Our honeycomb geocell structures are made out of a thick high-density polyethylene (HDPE) that's as strong as concrete. Engineers ultrasonically welded Geocell at certain intervals for maximum strength. Also, the product has perforation (holes) that provide natural drainage in your commercial project.

Q: What if my project dimensions are different than the Geocell panels ?
A: We can custom-design Geocell foundation grids to meet whatever project demands you have. Drainage pipes, trees, and other obstacles are not an issue when laying a solid geocell base. You can fit flexible Geocell panels around these objects that you can't do with concrete and steel.

Q: What GeoMax Geocell product testing has been done? Can I see the product specs?
A: Our support team would be glad to speak with you about product testing and specs. We consult your project through a free commercial evaluation to learn your specific needs. Schedule one now and we can get back to you in a few hours.

Q: Where is it manufactured ?
A: GeoMax geocell is manufactured in Anhui China.

Q: Can you do customize size ?
A: Yes, we can do customized strictly as your requirement.

Q: What Standard can you do?
A: We can do ASTM Standard and GB Standard, we can do customize standard as well.
