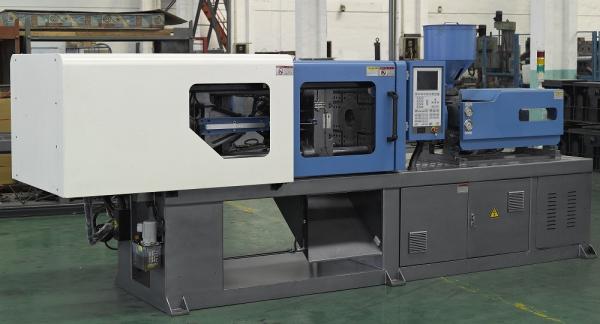

T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force
T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force
T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force
T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force
T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force
T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force
Specifications
Brand Name :
VAINO
Model Number :
HM-330
Certification :
CE/ISO9001:2008
Place of Origin :
Ningbo,China
MOQ :
1SET
Price :
Please Click Inquiry Button
Payment Terms :
T/T, L/C
Delivery Time :
15-60working days
Packaging Details :
wooden pallet(standard) wooden case(option)
Injection weight :
850-1150g
tie-bar space :
670*670mm
Clamping force :
3300kN
Description

excellent properties high speed injection molding machine HM-330 for AS PS Fans

HIGH SPEED:

Increase 20% performance capacity by using variable displacement pump than fixed pump

This series machine use a high response proportional variable-capacity system, make RMS of the hydraulic system match to the machine running energy, avoid throttling and loss of the overflow energy tremendously ,decrease the machine calorific value, and save the electricity from 30%-60% compared with the common standard machine .the economic efficiency will be more obvious ,which could provide our customers with broad room to choose.

OIL SAVING:

equipped with performance filter device to make sure that the hydraulic oil will keep long life

WATER SAVING:

No overflowing heating,low oil temperature saves cooling water,and increases the using life of the sealing elements

POWER SAVING:

Save power 30-60%

Specification:

HM-330
INJECTION UNIT UNIT A B C
SCREW DIAMETER mm 60 65 70
SCREW L/D RETIO L/D 22.5 20.7 19.1
INJECTION VOLUME cm3 933 1095 1270
INJECTION WEIHGT g 849 996 1156
oz 30 35.1 40.8
INJECTION RATE cm3/ s 250 293.4 340.3
INJECTION PRESSURE Mpa 213.6 182 157
CREW SPEED rpm 190
CLAMPING UNIT
CLAMPING FORCE kN 3300
MOLD OPEN STROKE mm 630
SPACE BETWEEN TIE BARS mm 670×670
MAX.MOLD HEIGHT mm 250～660
EJECTOR STROKE mm 160
EJECTOR FORCE kN 100
OTHERS
MAX.PUMP PRESSURE Mpa 16
PUMP MOTOR POWER kW 37
HEATER POWER kW 19.7
MACHINE DIMENSIONS mm 7×1.85×2.4
OIL TANK CAPACITY L 580
MACHINE WEIGHT t 12.8

Advantage:

1. T Slot Platen;

2. Machine Weight more than most factory.

3. Machine base use rectangular Tube .4pcs safe door are moveable,maintain the machine more easy;

5. Hydraulic tank is moveable,more easy to clean the tank,

6. heating band is made by cermics,use life is long

7. prepare more spare parts for customer

Configuration:

COMPONENT BRAND&ORIGINAL
Fixed pump Servo
hydraulic system
HYDRAULIC MOTOR INTERMOT-ITALY-CHINA INTERMOT-ITALY-CHINA
SERVO MOTOR CONTROLLER / TONGLING-CHINA
HYD' PUMP FIXED VICKERS-USA OR YUKEN-JAPAN VICKERS-USA OR YUKEN-JAPAN
GEAR PUMP / SUMITOMO-JAPAN
DIRECTION VALVE VICKERS-USA OR YUKEN-JAPAN VICKERS-USA OR YUKEN-JAPAN
PP VALVE HNC-TAIWAN /
MOULD ADJUST MOTOR INTERMOT-ITALY-CHINA INTERMOT-ITALY-CHINA
electric system
CONTROLLER TECHMATION-TAIWAN TECHMATION-TAIWAN
RELAY SCHNEIDER-GERMANY SCHNEIDER-GERMANY
LINEAR TRANSDUCER MIRAN-CHINA MIRAN-CHINA
LIMITED SWITCH SCHNEIDER-GERMANY SCHNEIDER-GERMANY
BREAKER SCHNEIDER-GERMANY LS-KOREA
ELEC'MOTOR HUANQIU-CHINA /
others
HIGH PRESSURE PIPE GOODYEAR-USA GOODYEAR-USA
SEAL Helate-England Helate-England
AUTO LUBRICATION SL-CHINA SL-CHINA
SCREW AND BARREL 38CrMoAlA-China 38CrMoAlA-China

Platen drawing:

T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force

T Slot Plate High Speed Injection Molding Equipment With 3300 KN Clamping Force
