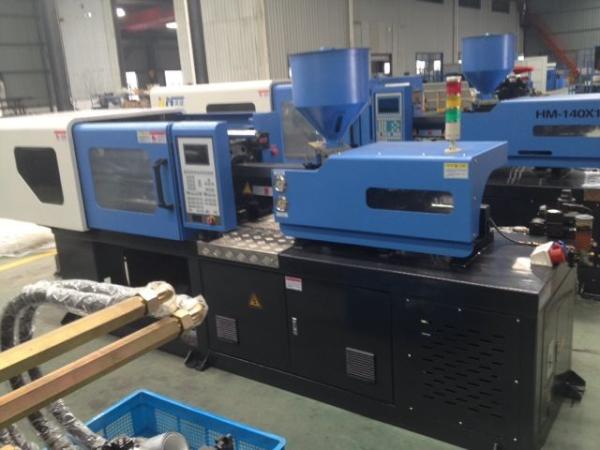

Hydraulic Injection Plastic Machine , 7.5KW Small Plastic Injection Moulders For Lids / Cap
Hydraulic Injection Plastic Machine , 7.5KW Small Plastic Injection Moulders For Lids / Cap
Hydraulic Injection Plastic Machine , 7.5KW Small Plastic Injection Moulders For Lids / Cap
Hydraulic Injection Plastic Machine , 7.5KW Small Plastic Injection Moulders For Lids / Cap
Hydraulic Injection Plastic Machine , 7.5KW Small Plastic Injection Moulders For Lids / Cap
Hydraulic Injection Plastic Machine , 7.5KW Small Plastic Injection Moulders For Lids / Cap
Specifications
Brand Name :
VAINO
Model Number :
HM70
Certification :
CE/ISO9001:2008
Place of Origin :
Ningbo,China
MOQ :
1SET
Price :
Please Click Inquiry Button
Payment Terms :
T/T, L/C
Delivery Time :
15-60working days
Packaging Details :
wooden pallet(standard) wooden case(option)
tie-bar space(mm) :
310*310
injection weight :
84,95,107
pump motor :
7.5KW
screw L/D Ratio :
23.7,22.2,20.7
Description

7.5KW Small Plastic Injection Molding Machine for lids and cap With hydraulic system

Quality control management, the main process parameters and the curves shows a list of statistics

PID barrel temperature control function automatically adjusts the parameters

1. features

ADJUSTMENT UNIT:

Automatic mold height adjustment save time and cost during the mould change

CLAMPING UNIT:

The plates are designed using FEM software,ensuring a stable and rigid clamping system.

Five point inward moving double toggle system ensures high rigidity and precision for mould clamping and also reducing stress and strain effect

HYDRAULIC UNIT:

The hydraulic system using the world famous pump and control valve can control the machine running precisely, ensuring the precision, reliability and durability of whole machine

INJECTION UNIT

Dual-pillar supporting and dual cylinder injection balance devices ensure the stress on screw balanced during injection

Special screw and barrel designs are available for processing different material requirements

ELECTRONICALLY CONTROLLED UNIT

High response PLC control system with frequency of 32MHZ

5-10inch LCD display ,showing independent CPU control

Master control frequency of 140hmz scan time 1 ms, The progress of fast response, high control accuracy

100-200group mold parameter storage space

2. Specification

HM-70
INJECTION UNIT UNIT A B C
SCREW DIAMETER mm 30 32 34
SCREW L/D RETIO L/D 23.7 22.2 20.7
INJECTION VOLUME cm3 92 105 118
INJECTION WEIHGT g 84 95 107
oz 2.95 3.35 3.79
INJECTION RATE cm3/ s 70.9 80.7 91
INJECTION PRESSURE Mpa 244 215 190
CREW SPEED rpm 220
CLAMPING UNIT
CLAMPING FORCE kN 700
MOLD OPEN STROKE mm 270
SPACE BETWEEN TIE BARS mm 310×310
MAX.MOLD HEIGHT mm 120～350
EJECTOR STROKE mm 70
EJECTOR FORCE kN 38
OTHERS
MAX.PUMP PRESSURE Mpa 16
PUMP MOTOR POWER kW 7.5
HEATER POWER kW 6.8
MACHINE DIMENSIONS mm 3.9×1.1×1.7
OIL TANK CAPACITY L 150
MACHINE WEIGHT t 2.5

3.Configuration:

COMPONENT BRAND&ORIGINAL
Fixed pump Servo
hydraulic system
HYDRAULIC MOTOR INTERMOT-ITALY-CHINA INTERMOT-ITALY-CHINA
SERVO MOTOR CONTROLLER / TONGLING-CHINA
HYD' PUMP FIXED VICKERS-USA OR YUKEN-JAPAN VICKERS-USA OR YUKEN-JAPAN
GEAR PUMP / SUMITOMO-JAPAN
DIRECTION VALVE VICKERS-USA OR YUKEN-JAPAN VICKERS-USA OR YUKEN-JAPAN
PP VALVE HNC-TAIWAN /
MOULD ADJUST MOTOR INTERMOT-ITALY-CHINA INTERMOT-ITALY-CHINA
electric system
CONTROLLER TECHMATION-TAIWAN TECHMATION-TAIWAN
RELAY SCHNEIDER-GERMANY SCHNEIDER-GERMANY
LINEAR TRANSDUCER MIRAN-CHINA MIRAN-CHINA
LIMITED SWITCH SCHNEIDER-GERMANY SCHNEIDER-GERMANY
BREAKER SCHNEIDER-GERMANY LS-KOREA
ELEC'MOTOR HUANQIU-CHINA /
others
HIGH PRESSURE PIPE GOODYEAR-USA GOODYEAR-USA
SEAL Helate-England Helate-England
AUTO LUBRICATION SL-CHINA SL-CHINA
SCREW AND BARREL 38CrMoAlA-China 38CrMoAlA-China

4.Platen drawing
