Adopt accumulator die head extrusion blow molding machine 20L chemical tank
Adopt accumulator die head extrusion blow molding machine 20L chemical tank
Adopt accumulator die head extrusion blow molding machine 20L chemical tank
Adopt accumulator die head extrusion blow molding machine 20L chemical tank
Adopt accumulator die head extrusion blow molding machine 20L chemical tank
Adopt accumulator die head extrusion blow molding machine 20L chemical tank
Specifications
Brand Name :
MEPER
Model Number :
MP85C
Certification :
CE/ISO9001:2008
Place of Origin :
Ningbo,China
MOQ :
1SET
Delivery Time :
15-60working days
Packaging Details :
wooden pallet(standard) wooden case(option)
Payment Terms :
T/T, L/C
platen open stroke :
400-900mm
screw diameter :
85mm
HDPE plasticizing capacity :
130kg
toggle stroke :
500mm
Description

Adopt accumulator die head extrusion blow molding machine 20L chemical tank

Brief introduction

MP85 adopted accumulator die head are suitable for producing large and various plastic products, such as tool boxes, water tanks, beer drums, jerry cans, and automobile components.

multi-point parison controllers with lateral take-out mechanism. Machine frame and die head are movable for replacing molds easily,Flexiable for various container.

Mainly applicable field:

10L,20L,25L chemical container (without view strip)

Toys

tool box

baby seat

toilet seat

Machine specification:

Max container capacity L 30
Number of die set 1
Machine Dimension(L×W×H) M 　4.8×2.6×3.2
Total weight ton 14
Clamping force kn 280
Platen opening stroks mm 400-900
Stroke of mould board mm 500
Max mould size(W×H) mm 600×1000
Screw diameter mm 85
Screw L/D ratio L/D 24
Plasticising capacity kg/h 130
Number of heating zone zone 4
Extruder heating power kw 24
Power of screw-bar machine kw 0.5
Extruder driving power kw 37
Hopper capacity L 5.5
Number of heating zone zone 4
Power of die heating kw 20
Max die-pin diameter mm 350
General power of machine kw 105
Average energy consumption kw 50

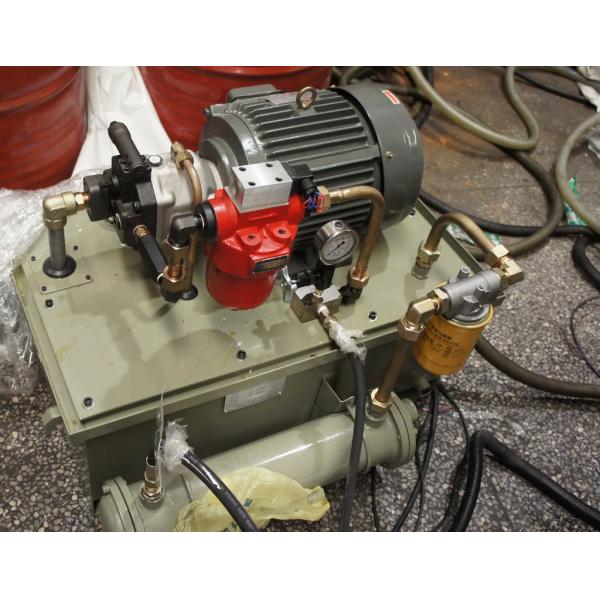

Power of the electric motor of oil pump kw 22
Air pressure Mpa 1
Using quantity of compression air m3/min 1.5
Using quantity of cooling water L/min 40

Machine parts:

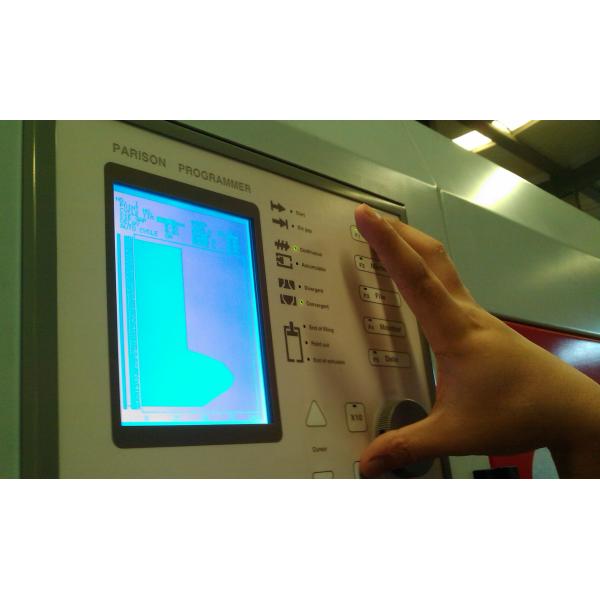

Moog parison thickness control system

Adopt accumulator die head extrusion blow molding machine 20L chemical tank

Adopt accumulator die head extrusion blow molding machine 20L chemical tank

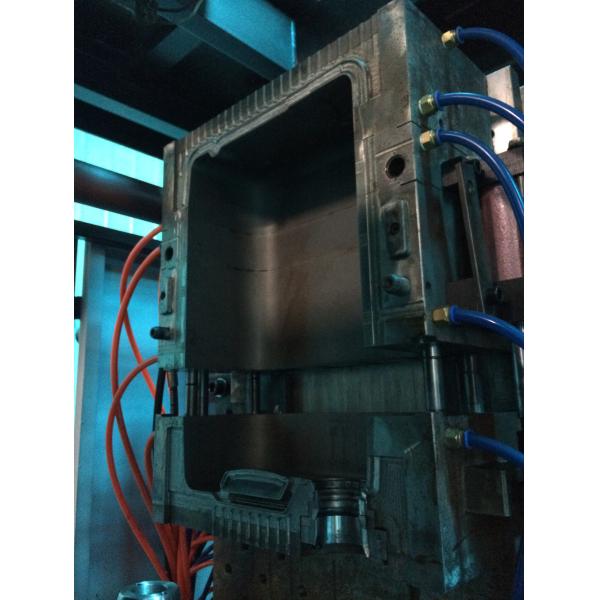

Mould assembled into the machine platen

Adopt accumulator die head extrusion blow molding machine 20L chemical tank
