Power saving single station extrusion molding machine for chemical barrel max 120L
Power saving single station extrusion molding machine for chemical barrel max 120L
Power saving single station extrusion molding machine for chemical barrel max 120L
Power saving single station extrusion molding machine for chemical barrel max 120L
Power saving single station extrusion molding machine for chemical barrel max 120L
Power saving single station extrusion molding machine for chemical barrel max 120L
Specifications
Brand Name :
MEPER
Model Number :
MP100
Certification :
CE/ISO9001:2008
Place of Origin :
Ningbo,China
MOQ :
1SET
Delivery Time :
15-60working days
Packaging Details :
wooden pallet(standard) wooden case(option)
Payment Terms :
T/T, L/C
Max container capacity :
120L
Platen open stroke :
500-1200mm
max mould size :
950*1400mm
machine size :
6*3*4.5M
Description

Power saving single station extrusion molding machine for chemical barrel max 120L

Brief introduction

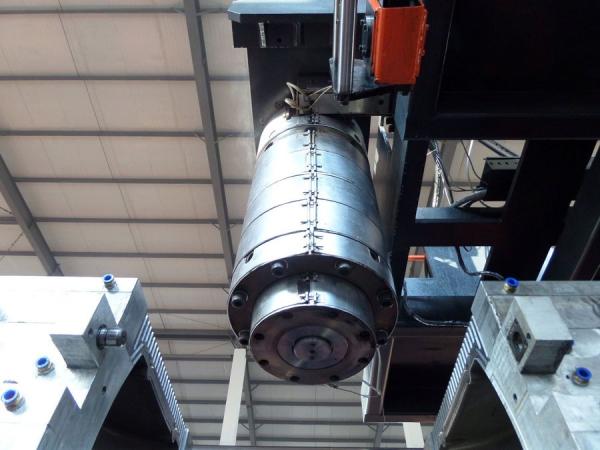

adopted accumulator die head are suitable for producing large and various plastic products up to 120L

multi-point parison controllers with lateral take-out mechanism. Machine frame and die head are movable for replacing molds easily,Flexiable for various container.

Machine specification:

Max container capacity L 120
Number of die set 1
Machine Dimension(L×W×H) M 6*3*4.5
Total weight ton 17
Clamping force kn 360
Platen opening stroks mm 500-1200
Stroke of mould board mm 700
Max mould size(W×H) mm 950*1400
Screw diameter mm 100
Screw L/D ratio L/D 24/1
Plasticising capacity kg/h 180
Number of heating zone zone 5
Extruder heating power kw 30
Power of screw-bar machine kw 0.75
Extruder driving power kw 75
Hopper capacity L 12
Number of heating zone zone 5
Power of die heating kw 25
Max die-pin diameter mm 450
General power of machine kw 175
Power of the electric motor of oil pump kw 30
Air pressure Mpa 1
Average energy consumption kw 75
Using quantity of compression air m3/min 2
Using quantity of cooling water L/min 40
