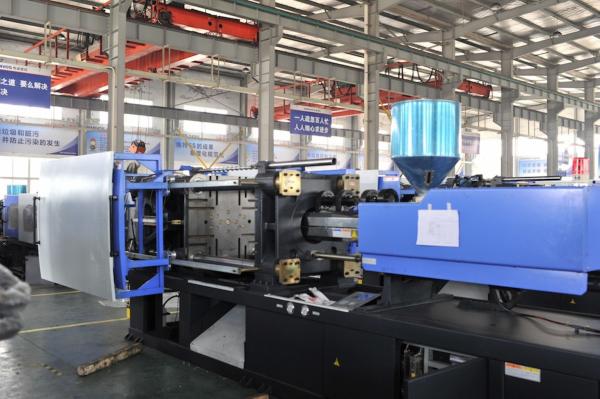

PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
Specifications
Brand Name :
VAINO
Model Number :
HM-270
Certification :
CE
Place of Origin :
CHINA
MOQ :
1SET
Price :
Please Click Inquiry Button
Delivery Time :
7-20 working days
Packaging Details :
wooden pallet(standard) wooden case(option)
Description

PPR Fitting PVC Injection Molding Machine 270ton with double core pulling

PVC

Based on the design of our general-purpose machine, we developed the PVC injection molding machine that ensures the strict requirement of PVC products

  1. specialized PVC plasticization components, hard chrome plated screw, nozzle(with bigger nozzle hole),and nozzle flange are adopt to ensure the quality of PVC production and extend the life of the mechanical parts. All the components are highly anti-corrosive
  2. oversized hydraulic motor matched to meet the large torque requirements neededfor plasticizing PVC material
  3. barrel are forced cooling by compressed air through air channels in individual zones with independent control or screw oil cooling connected to oil temperature controller ,to avoid thermal degradation of PVC powder in barrel
  4. widened safety door design, equipped with double core pulling device(each one has two inputs and two outputs)
  5. hardened chromed nozzle, large nozzle holt that ensure products flow and volume
  6. enlarged hydraulic motor, to fit the high torque requirement for PVC plasticization
  7. oil cooling and water cooling system in screw barrel for large-sized machine

Specification:

HM-270
INJECTION UNIT UNIT A B

C
SCREW DIAMETER mm 55 60 65
SCREW L/D RETIO L/D 22.9 20.9 19.3
INJECTION VOLUME cm3 594 707 829
INJECTION WEIHGT g 540 643 755
oz 19.06 22.68 26.62
INJECTION RATE cm3/ s 213.4 254 298
INJECTION PRESSURE Mpa 200 168 143
CREW SPEED rpm 160
CLAMPING UNIT
CLAMPING FORCE kN 2700
MOLD OPEN STROKE mm 550
SPACE BETWEEN TIE BARS mm 580×580
MAX.MOLD HEIGHT mm 200～550
EJECTOR STROKE mm 150
EJECTOR FORCE kN 70
OTHERS
MAX.PUMP PRESSURE Mpa 16
PUMP MOTOR POWER kW 22
HEATER POWER kW 16
MACHINE DIMENSIONS mm 6×1.5×2.2
OIL TANK CAPACITY L 365
MACHINE WEIGHT t 8.3

Advantage:

1. T Slot Platen;

2.Machine Weight more than most factory.

3.Machine base use rectangular Tube.

4.4pcs safe door are moveable,maintain the machine more easy;

5.Hydraulic tank is moveable,more easy to clean the tank,

6.heating band is made by cermics,use life is long

7.prepare more spare parts for customer

Platen drawing
PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
PPR Fitting PVC Injection Molding Machine 270ton with double core pulling
