PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304
Specifications
Brand Name :
XINTING
Model Number :
QXZL0508
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
NEGOTIATE
Payment Terms :
L/C, T/T
Supply Ability :
1 SET PER MONTH
Delivery Time :
45 WORKING DAYS
Packaging Details :
FILM PACKAGE PR WOODEN CASE PACKAGE
Machine material :
stainless steel 304
motor power :
optional
total line :
with crushing washing drying line and pelletizing line
washing type :
cold washing and hot washing
pelletizing type :
water ring type and strand type (noodle type)
heating type :
eletrc heating or gas or petrol
Description

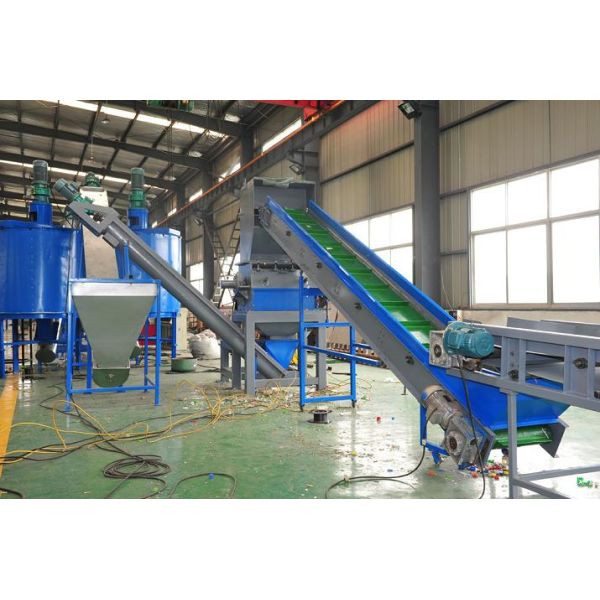

Waste PET plastic bottle recycling (crushing, washing, and drying) machine line:
Raw material & formulation Post-consumer bottles

Capacity range

 300kg/hour
500kg/hour
1000kg/hour
2000kg/hour

Description of final product

 Moisture: below 1%
Particle size: 17mm
Impurities: 100 ppm
PVC label content: 100 ppm
Production standard CE, ISO9001
Main components (1000kg/h)
(Name) (power)
Belt conveyor 2.2kw
Mechenical label remover 22kw
Manual separating table 1.5kw
Metal detector 0.4kw
Belt conveyor 2.2kw
Crusher 55kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
Hot washer 36kw
Screw conveyor 2.2kw
High speed frication machine 22kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
Vertical dewatering machine 11kw
Drying system 36kw+7kw
Zig Zag air classification system 11kw
Storage hopper
Control cabinet

Siemens contact

Japan Fuji invertor

Japan Omron temperature controller

click below picture for vedio show
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304

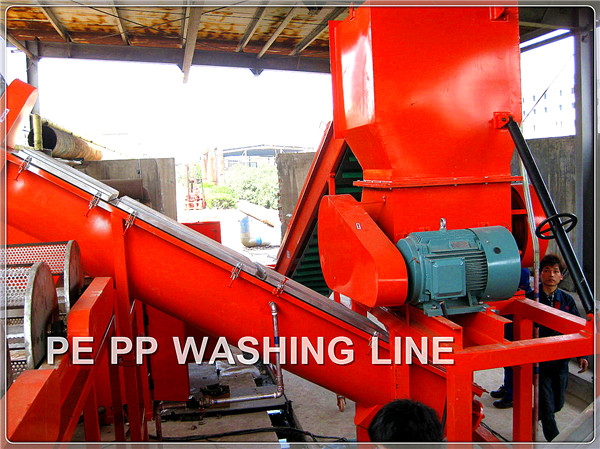

Waste pe pp film bags recycling (crushing, washing, and drying) machine line:
Raw material & formulation PE/PP rural film, twist bag, shopping bag, packing bag etc

Capacity range

 300kg/hour
500kg/hour
1000kg/hour
2000kg/hour
Description of final product Moisture: below 5%
Particle size: 30-110mm
Production standard CE, ISO9001
Main components (1000kg/h)
(Name) (power)
Belt conveyor 2.2kw
Crusher 55kw
Screw conveyor 2.2kw
Belt conveyor 2.2kw
Crusher 55kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
High speed frication machine 37kw
Screw conveyor 2.2kw
Vertical dewatering machine 110kw +1.5kw
Drying system-1 45kw+7kw
Transition storage hopper
Drying system-2 38kw+7kw
Storage hopper 2.2kw
Control cabinet

Siemens contact

Japan Fuji invertor

Japan Omron temperature controller
PP PET PS HDPE Waste Plastic Recycling Pelletizing Machine Stainless Steel 304

SJ series single stage pe pp film granulator machine
Model SJ-65 SJ-80 SJ-100 SJ-120 SJ-150 SJ-200
Screw Dia. 65 80 100 120 150 200
L/D 28-30 28-30 28-30 28-30 28-30 28-30
Capacity 60-80kg/h 80-100kg/h 150kg/h 300kg/h 400kg/h 500kg/h
SJ series double-stage pe pp film granulator machine
Model SJ-100/100 SJ-120/120 SJ-150/150 SJ-200/200
Screw Dia. 100 120 150 200
L/D

28-30

10-15

28-30

10-15

28-30

10-15

28-30

10-15
Capacity 120-180kg/h 220-300kg/h 300-400kg/h 500-600kg/h

TSSK series Parallel twin screw PET granulation line/pelletizing machine
Model TSSK-50 TSSK-65 TSSK-75 TSSK-92
Screw Dia. 50.5 62.4 71.2 91
L/D 32-48 32-48 32-48 32-40
Output (kg/hr) 80 150 300

500

More information please ask me .
