Specifications
Brand Name :
XINTING
Model Number :
XT
Certification :
CE ISO9001
Place of Origin :
ZHANGJIAGANG CITY
MOQ :
1 set
Price :
NEGOTIATE
Supply Ability :
1 line one week
Delivery Time :
45 days
Packaging Details :
film package wood packing
keywords :
plastic pvc pipe production line two pipes in one machine four pipes in one machine for drainage pipe
material :
pvc
screw design :
double screw
diameter :
16-63,63-110,110-160,160-200
power :
90-420kw
after sale service :
engineers available overseas service
Description

plastic pvc pipe production line two pipes in one machine four pipes in one machine for drainage pipe
Application:
PVC Plastic pipe making machine is mainly used in the production of Agricultural water supply & water discharge system, architectural water supply & discharge system, wire laying system, etc. purposes.
The unit consists of Conical (Parallel) double screw extruder-PVC pipe mold-Vacuum forming tank-Haul-off machine-Cutting machine-Stacker/Belling machine.
Producing pipe diameter range: Φ16mm-Φ630mm.
And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

Advantages:
♦ Specified screw design for better material plasticizing &mixing effect, For high filling formula, bimetallic screw and barrel can guarantee perfect solution;
♦ Spider type die head can reduce joint line of the melt material, with reasonable compression ratio design;
♦ Vertical integrated structured gear box with adopts NSK/SKF bearings guarantee stable operation and long uselife;
♦ Vacuum calibration tank adopts high-efficiency two chamber and large length design, providing faster calibration and more
efficient cooling;
♦ Planetary cutter adopts hydraulic feeding of blade which providing perfect chamfering processing and cutting surface;
♦ U type, R type and Air blow type socket can be provided according to applications;
♦ Intelligent PLC controlling system with human-friendly interface make the operation easily and conveniently.

Technical Parameter:

Diameter ranges(mm)Extruder modelMax. Capacity(kg/h)Max. lineal speed(m/min)Extruder motor power(kw)
16-32 (4-cavities)XT 65/13230010*437
20-63 (Dual)XT 65/13230015*237
50-160XT 65/132300837
75-250XT 80/156500655
110-315XT 80/156500455
75-160 (Dual)XT 92/1888506110
315-630XT 92/1888501.2110


Technical Parameter of Main extruder:

ModelPower
(kw)
Screw Diameter (mm)Screw Qty.Designed Output (kg/h)Center Height (mm)Dimension(L*W*H)
(mm)
XT -45/9015Φ45/9027010003360x1290x2127
XT-51/10518.5Φ51/105212010003360x1290x2127
XT -55/11022Φ55/110218010003620x1050x2157
XT 65/13237Φ65/132230010003715x1520x2450
XT -80/15655Φ80/156250010004750x1550x2460
XT -92/188110Φ92/188275012006725x1550x2814


Main components:
Motor: Siemens, WEG, SEW
Gear reducer: SEW, FALK
Bearing: SKF, FAG, NSK
Air cylinder: Festo, SMC, AirTac
PLC interface and module: Siemens, Schneider, Beckhoff
Frequency inverter: ABB, Schneider, Siemens
Servo motor: Lenze, Delta
Pressure sensor: Dynisco, Gefran
Low voltage component: Siemens, Schneider, Omron, LS
Temperature controller: Omron, RKC
Solid state relay: Crydom, Celduc

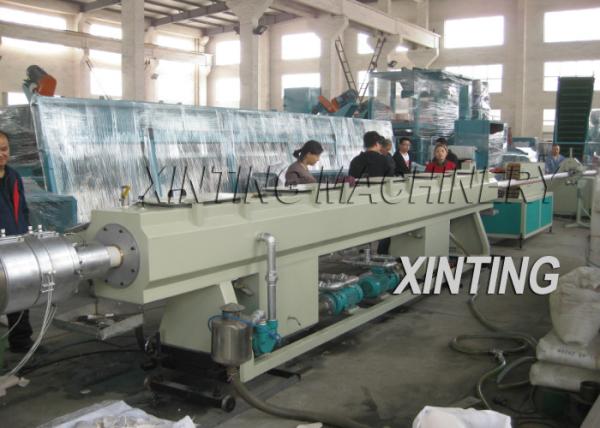

Double Screw PVC Pipe Production Line 90-420kw Durable For Drainage Pipe
About XINTING:
XINTING is a creative company, focusing on R & D of plastic extrusion system, and providing the equipments and solutions for plastic pipe, profile, tile, sheet and board.
XINTING products fulfill the needs of users in a very direct way due to over 25 years of knowledge and experience in plastic extrusion field, which also helps us to contribute actively to the success of customers by offering sustainable solutions that meet industry needs.
XINTING offers a complete portfolio of support and consulting services all the time, from project engineering to custom financing solutions, after sales service at its best, ongoing production optimization, training and advisory services, even end product development.

Why XINTING:
• Specialized R & D team involved in plastic extrusion industries over 25years.
• Ability to provide the customized plastic extrusion solutions.
• Complete sales system covering the pre-sales, sales and after-sales service jobs.
• Professional sales team with local language speaking ability for English, Portuguese, Spanish, Turkish and Russian markets.
Double Screw PVC Pipe Production Line 90-420kw Durable For Drainage Pipe
Double Screw PVC Pipe Production Line 90-420kw Durable For Drainage Pipe
Double Screw PVC Pipe Production Line 90-420kw Durable For Drainage Pipe
XINTING 'S service:
• Pre-sale: we give our client the detailed technician offer, Layout design, Water/electricity/gas arrangement. Product simple marketing analyze, other necessary guidance
• In-sales: we supply the details layout, installation instruction, and technician support for the clients.
• After sales: we arrange engineer to install the machine and train the workers for our client.
• We have 24 hours service line to solve the after sales problem.
• We have free spare parts with the machine.
• We supply long term spare parts for every customer.
• We always update the new technology to every customer.
Inquiry to XINTING:
In order to match your requirement and provide you a proper quotation, please advise:
• Diameter specification;
• Wall thickness specification/pressure class;
• Pipe application;
• Socket type;
• Capacity requirement in KG/meter per minute;
