PVC Plastic Pipe Crusher Machine PPR Pipe Grinder Machine With SKD11 Blades
PVC Plastic Pipe Crusher Machine PPR Pipe Grinder Machine With SKD11 Blades
PVC Plastic Pipe Crusher Machine PPR Pipe Grinder Machine With SKD11 Blades
PVC Plastic Pipe Crusher Machine PPR Pipe Grinder Machine With SKD11 Blades
Specifications
Brand Name :
xinting machine
Model Number :
XT
Certification :
CE ,TUV
Place of Origin :
CHINA ZHANGJIAGANG CITY
MOQ :
1 SET
Price :
ASK ME
Supply Ability :
10 SET PER MONTH
Packaging Details :
FILM PACKAGE
Use :
pvc pipe crusher machine
diameter :
20-63 63-110,110-200mm
Voltage :
as per client's request
Power(W) :
11-132kw
OEM :
yes
Material of Plastic Crusher Blades :
D2,dc53
Usage :
KS fast pipe shredder Waste Plastic Cusher
keywords :
pvc pe ppr pipe cutting machine
Description

PVC Plastic Pipe Crusher Machine PPR pipe Grinder Machine with SKD11 blades


Application
PVC pipe recycling crushing is used for recycling all kinds of plastic pipe, profile.
Suitable: Plastic pipes, plastic sheet, plastic filament,long plastic etc.
Raw material: PVC, PE, PP, PC
Capability: 250-650kg/h.
Pipe diameter: Less than 250mm.

Features
1) Specialized blades for crushing pipes (PP-R, PE, PVC).
2) Steel body and clamping blade prevent the machine from cracking
3) Stepped blades increase shearing strength and crushing efficiency
4) Movable screen is easily to assembly, disassemble and wash
5) Sound separation layer in the feeding door lowers operations noise levels

Our Services

1. We provide one-year warranty for all the accessories for free.
2. Our engineer is abailable for loading, testing and training abroad.


PVC Plastic Pipe Crusher Machine PPR Pipe Grinder Machine With SKD11 Blades

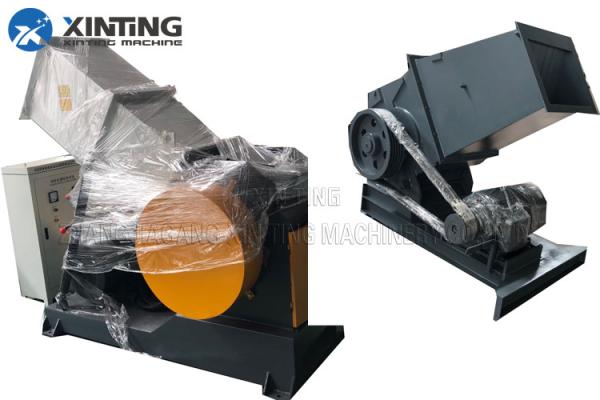

This Plastic crusher is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others


The blade base and blade on the rotary roller can be disassembly .it is easy to clean and maintenance.
The main axis is drive by gearbox, its running very stably, low noise and strong power.
The material push feeding system is hydraulic ways , ,its running very stably.
Technical Parameter
Model
SWP-400
SWP-500
SWP-560
SWP-650
SWP-800
SWP-1200
Moving knife
5 pcs
5pcs
10 pcs
10 pcs
10 pcs
12pcs
Static knife
2 pcs
2 pcs
4 pcs
4 pcs
4 pcs
4pcs
Blade specification
315*100*22mm
415*100*22mm
250*100*22mm
300*100*25mm
400*100*25mm
300*100*25mm
Motor power
15 kw
18.5 kw
22-30 kw
37 kw
45 kw
55kw
Screen plate thickness
10mm
10 mm
10 mm
12 mm
12 mm
12mm
Material of kinfe
qsicr
qsicr
qsicr
qsicr
qsicr
qsicr
Output
200-300 kg/h
300-350kg/h
350-500kg/h
450-650kg/h
650-800kg/h
800-1000kg/h
Spindle diameter
110mm
118mm
110 mm
120mm
140mm
160mm
Source voltage
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
Dimensions
1850x900x1630mm
1850*1050*1680mm
2050*1150*1730mm
2400*1350*1850mm
2550*1550*1950mm
2050*1650*1900mm
Weight
1200kg
1300kg
1600kg
2100kg
2300kg
2800kg


PVC Plastic Pipe Crusher Machine PPR Pipe Grinder Machine With SKD11 Blades

FAQ

· How about the quality of your product?

·Our products manufactured strictly according to national and international standard.
· We have CE, ISO certification.
· We take a test on every product before delivery.

1. Question: If I need the machine urgently, what will you do?
Answer: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.
2. Question: If my machine can not work when I receive it, what will your factory do?
Answer: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.
3. Question: If my machine is broken within one year, what your factory will do?
Answer: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.
