5 Inches Capacity CNC Tube Bender , Steel Bending Machine Global Warranty
5 Inches Capacity CNC Tube Bender , Steel Bending Machine Global Warranty
5 Inches Capacity CNC Tube Bender , Steel Bending Machine Global Warranty
5 Inches Capacity CNC Tube Bender , Steel Bending Machine Global Warranty
Specifications
Brand Name :
XINTING
Model Number :
xtDW63CNMTSR
Certification :
ce gsg
Place of Origin :
china
MOQ :
1 set
Price :
NEGOTIATE
Supply Ability :
1 set per week
Packaging Details :
wood case package
pipe material :
steel ,metal pipe
Model :
DW38CNCMTSR
Processing Types :
Metal Pipe
Power :
CNC Servo
Installation :
Available
Function :
Pipe Bending
Operation :
Easy and Stable
Description

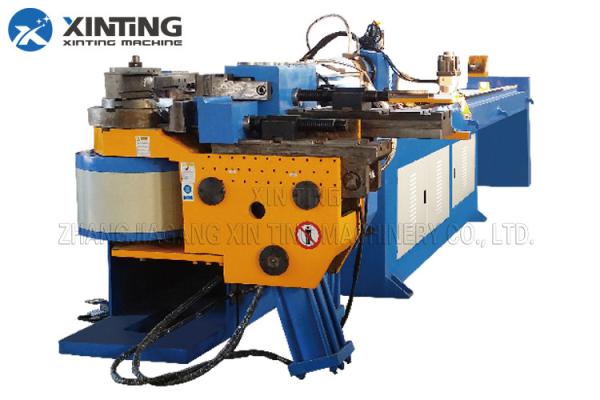

5 Inches Capacity CNC Tube Bender , Steel Bending Machine Global Warranty



Product Details

1. Bend-arm (C-axis) by hydraulic. Clamp die by hydraulic, Pressure die by hydraulic.

2. Carriage (Y-axis) by servo motor. Collet (B-axis) : rotation by servo motor, grip by hydraulic.

3. Anticipated mandrel retraction unit. Standing pedestal, serves emergency stop and remote control
4. Fan-cooling system. Diagnosis error immediately.
5. Central Automatic lubrication system.
6. Foot pedal for safe start.
7. It is fully automatic pipe bending machine, with PLC control system, two servo for rotary, feeding.
8. Touch screen panel display English, have different bending degree prefabricate, dialogue operation, can choose manual,
semi-automatic and full automatic operation manual, portable pedal switch with start and emergency stop function.Multi axes working simultaneously.
9. Bending pipe — Automatic. Rotating pipe — Automatic. Feeding pipe — Automatic.
10. One key back up of programs for USB or disk storage or through INTERNET. Management and storage of bend data and tools is done in standard text files on the hard disk of the control PLC. In case of requirement it is also possible to integrate the PLC into bending machine. Therefore an Ethernet adapter is included. The number of tools and products is practically unlimited. Product and tool files can easily be edited (also on a separate PLC) and printed out.
11. Security code for the protection the data setting and selected operation features.
12. To access to the history bending setting data to the facilitate study of malfunction with one set of tooling.
13. All the parts of hydraulic system, control system, driver system and display system are imported from famous brand, with high accuracy, high efficient, suitable for mass production.
14. CNC fully auto, have cubical space bending equipment, loading the whole bending process is automatic.
15. The machine is convenient operation, stable performance and high safety factor. The machine is the ideal choice for the pipe processing.
16. CE, ISO9001 Certification.

Features of pipe bending machine

Interactive PLC touch screen offers easy access to auto and manual operating modes.
System diagnostics and multiple language capability.
Standard clockwise bending direction.
Fully hydraulic clamping on clamp die and pressure die.
Drop-way hydraulic clamping.
Direct acting hydraulic pressure die with adjustable speed valve.
Maximum 100 sets of program storage,Maximum 32 bends for each program.
With Independent programmable speeds Y, B, and C axes.
Programmable material spring back settings for each bend angle.
Automatic release of tube prior to final bend.
Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
Foot Pedal Cycle start.
With Air Cooling System.
One set of Tooling for Draw Bending.
Wiper die Bracket.
1 Mandrel Rod.
Operation and Maintenance Manual.
Tool Box with Adjusted Tools.
Electric: As required (3 phase 220V or 380V or 415V...)
Optional

Industrial Computer Controlling
Anticipate Mandrel Extraction
Automatic mandrel/machine lubrication
Anti-clockwise bending direction
Machine effective length over mandrel
Safety Mat

Specification of metal pipe bending machine/tube bender

Technical Data:
Item Name Data
1 Max bending capacity Φ130 mm×12 mm
2 Max bending radius R400mm
Can according to customer’s requirement
3 Min bending radius R50mm
4 Max feeding length 4000mm
Can according to customer’s requirement
5 Max bending degree 190 Degree
6 Control Panel PLC Mitsubishi
7 Touch Screen Taiwan Smart Face
8 Bending unit 16 Pieces
9 Working speed Bending speed 25 Deg/sec
Rotary speed 80 Deg/sec
Feeding speed 600 mm/sec
10 Accuracy Feeding ±0.1 mm
Rotary ±0.1 Degree
Bending ±0.1 Degree
11 Rotary Pipe By Servo Motor Power 2 KW
Japan Mitsubishi
12 Data input 1.Coordinate ( X, Y, Z )
2.Working value ( Y, B, C )
13 Feeding Pipe By Servo Motor Power 5 KW
Japan Mitsubishi
14 Bending Pipe By Hydraulic Valve
15 Oil motor power 22 Kw
16 Max storage units 1000 Group
17 Max pressure 14 MPa
18 Hydraulic control system Magnetic exchange valve
Japan Yuken
19 Oil tank 500 L
20 Machine weight 10000 Kg
21 Machine size 6200×1900×1300 mm

Configuration
NAME Supplier
Hydraulic Motor Wuxi Taihu
Hydraulic Valve Japan Yuken
Over Flow Valve Japan Yuken
Stacked Valve Japan Yuken
Servo Motor Japan Mitsubishi
Servo Controller Japan Mitsubishi
PLC Japan Omron
Touch Screen Taiwan Weinview
Encoder Japan Nemicon
Hydraulic Pump TAIWAN YONGLING
Linear Guide TAIWAN HIWIN
Sealing Element Taiwan Ding Zing
Reducer Taiwan PHT
Contactor France SCHNEIDER
Over-Thermal Relay France SCHNEIDER
Air Switch France SCHNEIDER
Proximity Switch Taiwan YANGMING
Power Switch Taiwan Meanwell
Tansformer Dong Lin Electric
Oil Tube Taiwan Lianhui
