160mm plastic pvc upvc cpvc pipe making machine

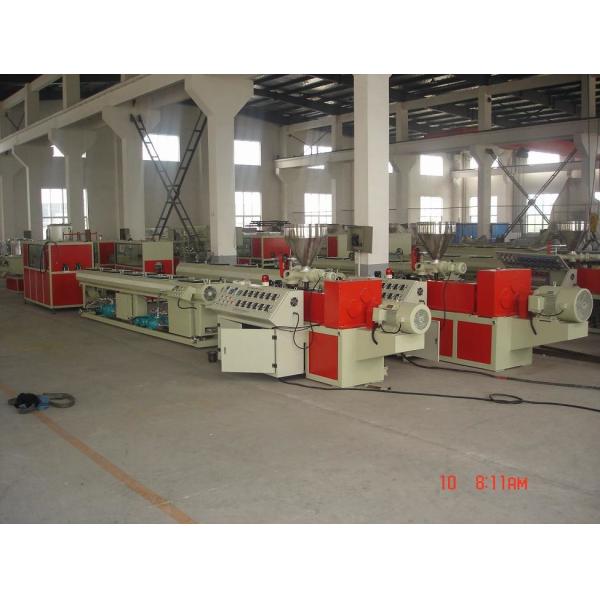

PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage and Sewage and constructional plumbing cable laying etc. The unit consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine-Tripping table/Belling machine. Producing pipe diameter range: Φ160mm-Φ400mm. And the line can be equipped with comptroller thickening instrument, computer ink-jet printer, crusher, shredder, pulverizer ,water chiller, air compressor etc. to achieve the production and manufacture of high-grade tubing. Advanced design for screws and barrel supplies powerful safeguard for the PVC plasticization.
mould :Main materials of Body, bin and push: 40Cr, Surface polishing and CR-plating Calibrator: copper or stainless steel, water-ring type Inside flow channel Mirror polished Special chrome plated treatment: 20-30 um Ceramic heaters, high efficient and long life Spider structure for excellent plasticization.
Equipment list: water pipe PVC pipe machine/SWR pipe making machine/UPVC pipe machine
No. | Equipment list for PVC pipe manufacturing plant | Quantity |

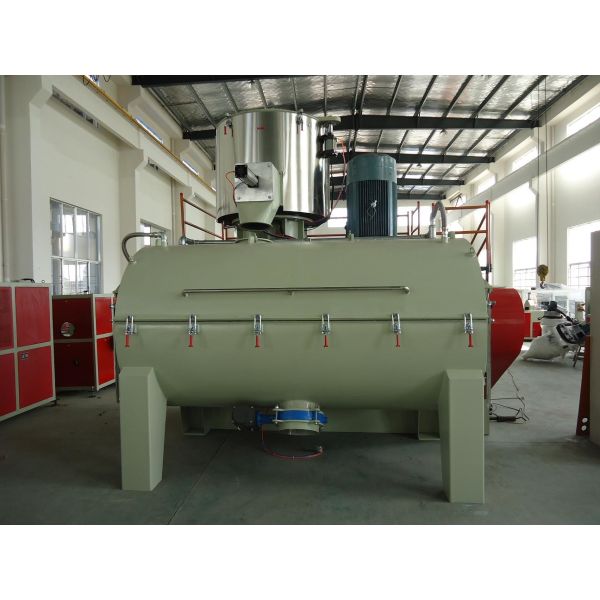

1 | Mixing machine | 1 set |
2 | Auto feeder | 2 sets |

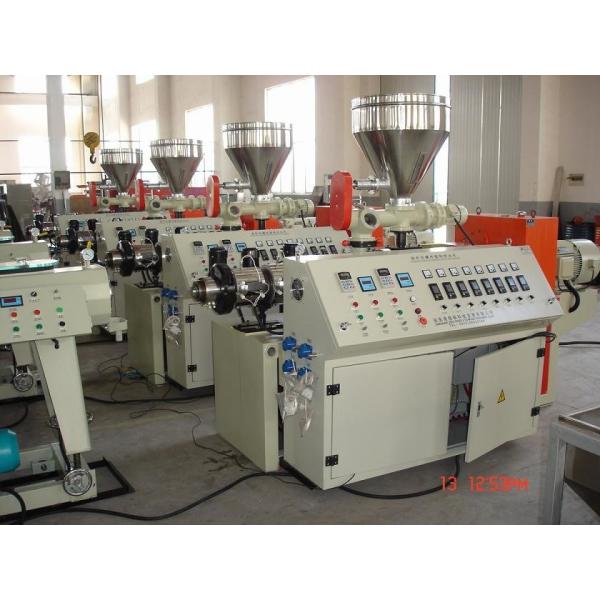

3 | Conical double screw extruder | 1 set |
4 | Die head and sizing mold | customized |

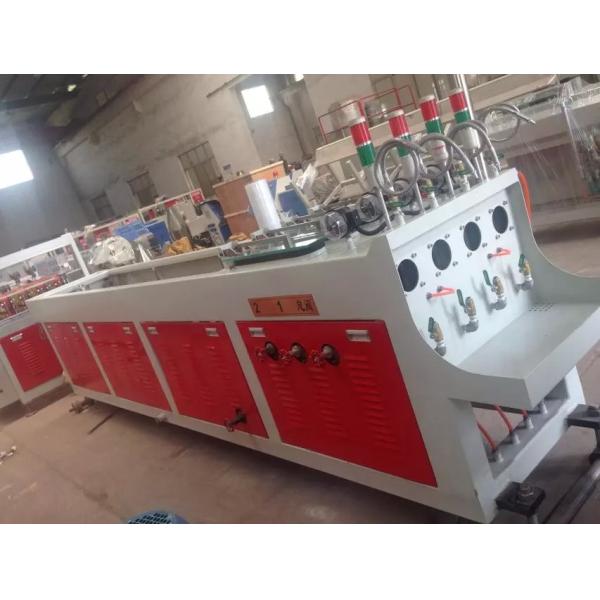

5 | 1st cooling tank | 1 set |
6 | 2nd cooling tank | 1 set |
7 | haul off device | 1 set |
8 | auto cutting machine | 1 set |
9 | Laser printer or ink jet printer | 1 set |
10 | PVC pipe stacker | 1 set |
11 | PVC pipe joint belling machine | 1 set |
12 | Crushing machine | 1 set |
13 | PVC powder milling machine | 1 set |
14 | Air compressor | 1 set |
15 | water chiller | 1 set |
This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm
Main parameter of PVC pipe making machine
Mode | Pipe range (mm) | extruders | Max. output (kg/h) | Max. speed (m/min) | Total power (kw) | Line length (m) |
PVC-50x2 | 16-50 | SJSZ51/105 | 150 | 6m | 60w | 20m |
PVC-63 | 16-63 | SJSZ45/90 | 120 | 10m | 45w | 20m |
PVC-110 | 50-110 | SJSZ51/105 | 150 | 6m | 60w | 24m |
PVC-160 | 63-160 | SJSZ65/132 | 300 | 5m | 100w | 24m |
PVC-250 | 110-250 | SJSZ80/156 | 400 | 3.5m | 120w | 28m |
PVC-315 | 160-315 | SJSZ 80/156 | 400 | 3m | 160w | 28m |
PVC-450 | 250-450 | SJSZ 92/188 | 700 | 1.5m | 200w | 36m |
PVC-630 | 315-630 | SJSZ92/188 | 700 | 0.9 | 230kw | 36m |
