Design Different PET Bottle Recycling Machine , Pet Bottle Flakes Washing Line
Design Different PET Bottle Recycling Machine , Pet Bottle Flakes Washing Line
Specifications
Brand Name :
XINTING
Model Number :
800
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
ask me
Payment Terms :
L/C, T/T
Supply Ability :
1 line per month
Delivery Time :
45 days
Packaging Details :
film package
Warranty :
1 Year
Condition :
New
appilcation :
PET Bottle Recycling Machine
After-sales service provided :
Engineers available to service machinery overseas
Voltage :
Customer Standard
Description

design different pet bottle flakes washing line PET Bottle Recycling Machine

We can design different pet bottle flakes washing line for you according to your request:

a: There are different capacity can be supplied:500kg/h,1000kg/h.....2000kg/h.

b: You can choose different devices according to your material.

c: According to your country condition, you can choose full automatic line or semi-automatic line.

d: You can purchase separate device based on your own conditions.

e: We providing turn-key project for you. Design-product-installment-testing.

Basically the standard process design as below:

Belt Conveyor ------ Label Remover -------- Manual Selection platform (Metal Detector) ------ Belt Conveyor ----- Crusher ------- Screw Feeder ------- Hot Washer ------- Screw Feeder -------- High Speed Friction Washer -------- Floating Washing Tank ------- Dewatering ------- Dryer and Storage

1. We have the Bale opening and feeding system which and equally feeding the material save labor;
2. You can use the manually sorting system to selecting out different color bottles and non-PET material;
3- Metal detector is optional for you which used to take out any kind of metal from the PET bottles;

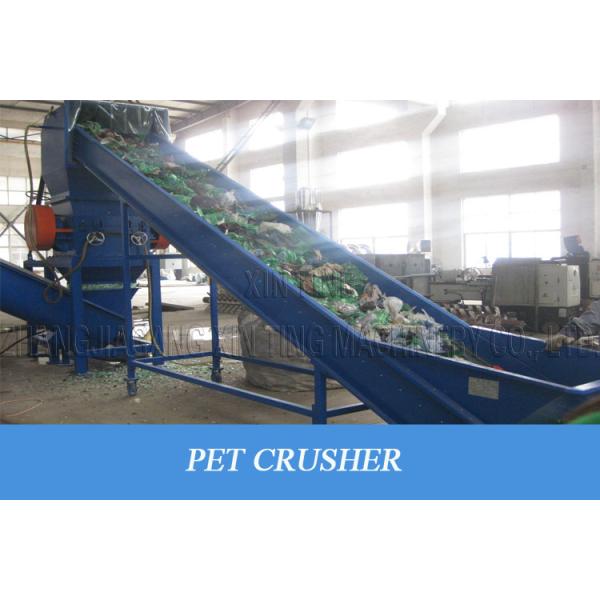

4- Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation;
5- High speed Dewatering machine and the drying system can guarantee the final PET flakes moisture <1%.
6- The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content..

The whole production line with CE certification, ISO9001 certification

Input capacity 500kg/h 1000 kg/h 2000 kg/h
Workshop(M*M*M) 42 (L)×10(W)×6(H) 55(L)×15(W)×6(H) 70(L)×18(W)×6(H)
Ancillary staff 6Persons 8 Persons 12 Persons
Installation power 156KW 307KW 420KW
Water Consumption: 2Ton/h 3.5Ton/h 5 Ton/h
Final product

Moisture: max 1%

Bulk density: 0.3G/CM3

Particle size: 14-18mm

Metal content: max.20ppm

Floatable contamination: less than 200ppm

Total impurity: 320ppm

Moisture: max 1%

Bulk density: 0.3G/CM3

Particle size: 14-18mm

Metal content: max. 20ppm

Floatable contamination: less than 200ppm

Total impurity: 320ppm

Moisture: max 1%

Bulk density: 0.3G/CM3

Particle size: 14-18mm

Metal content: Max. 20ppm

Floatable contamination: less than 200ppm

Total impurity: 320ppm
