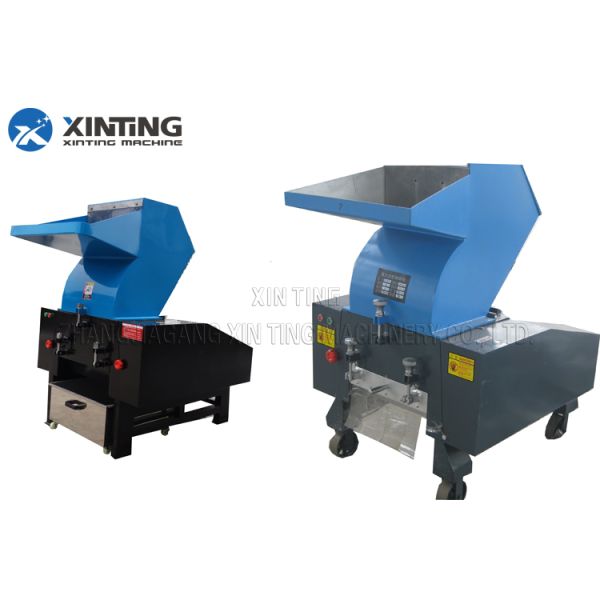

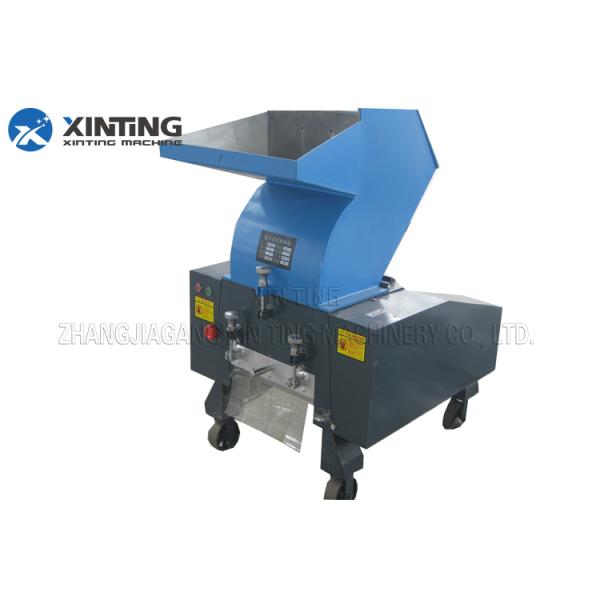

One Shaft Industrial Plastic Crusher Machine / Plastic Grinder Machine
One Shaft Industrial Plastic Crusher Machine / Plastic Grinder Machine
One Shaft Industrial Plastic Crusher Machine / Plastic Grinder Machine
One Shaft Industrial Plastic Crusher Machine / Plastic Grinder Machine
Specifications
Brand Name :
XINTING
Model Number :
XT PC SERIOUS
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATE
Supply Ability :
10 sets per month
Delivery Time :
45 days
Packaging Details :
film package wooden package
plastic type :
HDPE Recycling Machine crusher
power :
18.5kw 45kw 55kw 90kw
blade material :
skdII made in Japan
keywords :
plastic crusher
application :
single shaft shredder
material for cutting type :
PP/PE/PET/LDPE Plastic Crusher
Description
single shaft shredder in plastic crusher machine plastic Grinder Machine
plastic crusher machine As recycling equipment for waste plastics,PP/PE/PET/LDPE Plastic Crusher/ Shredder/ Grinder Machine is mainly used for breaking plastic material, such as pet bottle, plastic sheet ,plastic profile and plastic pipe, sheet, etc.
Applicable to the crushing and reuse of various plastics, especially for all types of rigid plastics (such as material heads, shoes, etc.).
Plastic Crusher
The plastic crusher is easy to operate, the tool change is simple and convenient, and the tool holder is optimized. The claw cutter can disperse the force and make the shear force of each knife increase. It is suitable for crushing thick materials, hard material blocks, material heads, etc. The tool cutting force is improved and the tool wear is reduced. The electronically controlled safety design is provided. The hopper adopts a double-layer structure and is filled with sound-insulating material, so that the equipment has good safety and environmental protection, and is power-saving and durable. 1, all-steel welding base, sturdy and durable.
2, easy to disassemble design, easy cleaning and maintenance.
3, imported Ming-steel tools, sharp edges, easy replacement, durable.
4, smash all kinds of soft and hard plastic, easy and easy.
5, with motor over-planting and electrical chain protection system to ensure safe use.
6, can choose different tools and different holes through the screen.
Model Power(KW)

Dimension of feeding part

(mm)

 Crushing capacity (kg/h) Rotary cutter Stationary cutter

Dimension of machine

(mm)

Weight

(Kg)
XT-200 2.2 200×210 20-80 9PCS 2PCS 550*420*1000 150
XT-250 4 250×210 130-250 9PCS 2PCS 750*620*1040 280
XT-300 5.5 310×220 200-300 9PCS 2PCS 850*680*1220 350
XT-400 7.5 410×240 400-500 12PCS 2PCS 880*840*1300 450
XT-500 11 510×320 500-600 6PCS 2PCS 1100*1000*1520 650
XT-600 15 610×320 600-800 18PCS 2PCS 1200*1120*1630 850
XT-630 22 630×340 700-800 27PCS 4PCS 1200*1120*1630 1000
XT-700 30 710×480 800-900 21PCS 4PCS 1300*1380*2030 1450
XT-800 37 800×480 800-1000 24/12PCS 4PCS 1900*1580*2200 2000

Maintenance for crusher
1. The plastic crusher should be placed in a ventilated position to ensure that the motor working heat is dissipated and its life is extended.
2. Lubricate the bearing regularly to ensure the lubrication between the bearings.
3. Check the tool screws regularly. After using the new plastic crusher for 1 hour, tighten the movable knife with the tool and fix the screws of the knife to enhance the fixing between the blade and the knife holder.
4. In order to ensure the sharpness of the tool incision, the tool should be inspected to ensure its sharpness and reduce unnecessary damage to other components caused by the blunt blade.
5, when changing tools, the gap between the moving knife and the fixed knife: 20HP more than the best 0.8MM crusher, 20HP following 0.5MM better than the crusher. The thinner the recycled material, the larger the gap can be.
6. Before the second start, the remaining scraps in the machine room should be cleared to reduce the starting resistance. The inertial cover and pulley cover should be opened periodically to remove the ash outlet below the flange. The plastic crusher chamber discharges the powder into the shaft bearing.
7. The machine should be well grounded.
8. Regularly check whether the plastic crusher belt is loose and tighten it in time.


One Shaft Industrial Plastic Crusher Machine / Plastic Grinder MachineOne Shaft Industrial Plastic Crusher Machine / Plastic Grinder Machine
