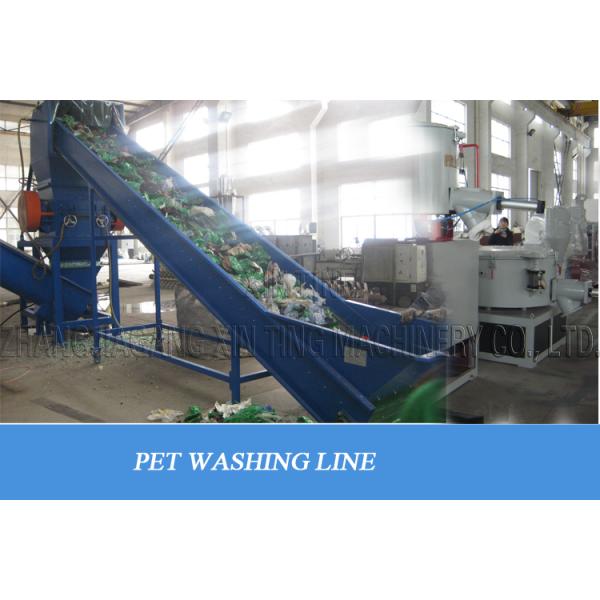

Mineral Bottle / Post Consumer Bottle Pet Bottle Washing Recycling Line Big Capacity
Mineral Bottle / Post Consumer Bottle Pet Bottle Washing Recycling Line Big Capacity
Specifications
Brand Name :
xinting
Model Number :
BMQX-0508
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
NEGOTIATE
Supply Ability :
1 set per week
Delivery Time :
30 working days
Packaging Details :
film package and wood case package PET bottle washing
washing type :
hot washing and cold washing
heating method :
with gas heating ,electric heating or petrol heating
Application :
Plastic Recycling Machine
Capacity :
300-3000kg/hr
keywords :
post consumer bottle recycling machine
Certification: :
CE ISO9001
Description

PET bottle washing and recycling machine line ,mineral bottle post consumer bottle recycling machine

Final products has good quality. When processPET bottle, final products humidity below 1%, impurities100ppm,PVC label content 100ppm . The whole line capacity between 300kg/h-3000kg/hour
Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time
World famous brand components applied on the production line- SKF bearing, Siemens contactor, Omron temperature, ABB invertor, Siemens PLC control, etc.
The whole production line with CE certification, ISO9001 certification

PET recycling machine (crushing, washing and drying) working flow:

Waste plastic pet bottle washing recycling machine main components
Name: Power:
Belt conveyor 2.2kw
Mechenical label remover 22kw
Manual separating table 1.5kw
Metal detector 0.4kw
Belt conveyor 2.2kw
Crusher 55kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
Hot washer 36kw
Screw conveyor 2.2kw
High speed frication machine 22kw
Screw conveyor 2.2kw
Floating washer 2.2kw+2.2kw+2.2kw
Screw conveyor 2.2kw
Vertical dewatering machine 11kw
Drying system 36kw+7kw
Zig Zag air classification system 11kw
Storage hopper
Control cabinet

We can produce the Line according to your requirement based on our suggestion. We have different components and capacity line for your choose;

Introduce of pet bottle recycling plant:
PET bottle recycling plant is widely used to treat PET bottle and scrap PET plastic broken into flakes. It is a crushing, washing, drying line. With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad.
This pet recycling machine could be display "L" or "U" shape according clients' workshop.
We can design different PET bottle recycling plant for you according to your request:
a: There are different capacity can be supplied:500kg/h,1000kg/h.....2000kg/h.
b: You can choose different devices according to your material.
c: According to your country condition, you can choose full automatic line or semi-automatic line.
d: You can purchase separate device based on your own conditions.
e: We providing turn-key project for you. Design-product-installment-testing.
Basically the standard process design as below:
Belt Conveyor ------ Label Remover -------- Manual Selection platform (Metal Detector) ------ Belt Conveyor ----- Crusher ------- Screw Feeder ------- Hot Washer ------- Screw Feeder -------- High Speed Friction Washer -------- Floating Washing Tank ------- Dewatering ------- Dryer and Storage
Features and Application of pet bottle recycling plant:
a. Equipment name: PET Recycling machinery
b. Production capacity: 300-2000kg/h
c. Material processed: PET bottle (such coca-cola ,small oil drum etc )
d. Main usage: This plant is used to remove bottle labels,crush bottle into flakes,wash by water,dry flakes,then get the clean and dry bottle flakes.
e. Superiority: Easy operation, high capacity, low energy consumption, safety, reliability, etc.
f. Cleaned material: Impurity content<=0.1%; Water content<=3%
g. Production capacity: can reach 3000kg/h (if without label remover machine).
Mineral Bottle / Post Consumer Bottle Pet Bottle Washing Recycling Line Big CapacityMineral Bottle / Post Consumer Bottle Pet Bottle Washing Recycling Line Big Capacity
