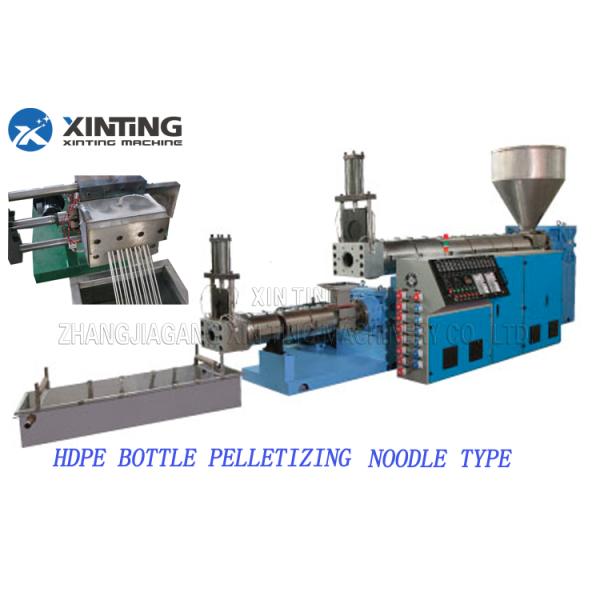

XT Plastic Waste Recycling Machine With TSSK Parallel Twin Screw Granulator
XT Plastic Waste Recycling Machine With TSSK Parallel Twin Screw Granulator
XT Plastic Waste Recycling Machine With TSSK Parallel Twin Screw Granulator
XT Plastic Waste Recycling Machine With TSSK Parallel Twin Screw Granulator
Specifications
Brand Name :
XINTING
Model Number :
XT
Certification :
CE ISO9001
Place of Origin :
Zhangjiagang city Jiangsu province
MOQ :
1 set
Price :
NEGOTIATE
Supply Ability :
2 sets per month
Delivery Time :
60 days
Packaging Details :
film package
type :
Parallel Twin Screw Granulator
Used on: :
PE PP HDPE LDPE
keyword :
under water pelletizer
application :
Waste Plastic Recycling Pelletizing Machine
hydraulic control system :
YES
non stop screen changer :
yes
Description

plastic recycling granulating production line with Compactor Granulator and TSSK Parallel Twin Screw Granulator

Summary:

Plastic pelletiziing machines are adopt for producting pellets such as ,PE,PP,PS ,ABS,PA,PVC,PC,POM,

Description:

1. This PP PE Film Pelletizing line Granulating Machine line can process recycled PP PE film and turn them into PP PE granules.
2. The granules are cutted in the water which make the granules smoothly and rounded, which can command a higher price in the market.
3. It adopts Japanese technology for automatic temperature control.
4. It's easy to operation, stable working and excellent quality, making it your first choice for plastic recycling.


The customer can select a suitable machine among double segment style, three-segment style, and four-segment style according to production requirements.
The special design can assure the good compounding effect and more solid pellet.
This kind of pelletizing line is especially suitable for recycling dirty waste and production of repelletizing.

XT Plastic Waste Recycling Machine With TSSK Parallel Twin Screw Granulator

Main Advantages:

1. Multifunctions of crushing and granulation. Whole plastic bags can undergo direct granulation without crushing
2. Double-column online screen exchanger with larger filtering area.
3. Water ring granule cutting avoid material staining.

Technical Parameters:

Model Extruder Screw diam.(mm) L/D Ratio Power(kw) Capacity (PE) (kg/h) Capacity (PP) (kg/h)
XT-100 SJ100/33 100 33:1 210 280-350 250-300
XT-130 SJ130/33 130 33:1 300 480-550 400-480
XT-160 SJ160/33 160 33:1 370 650-750 550-650
XT-180 SJ180/33 180 33:1 460 800-1000 750-850

TSSK Parallel Twin Screw Granulator

Filled masterbatch pelletizing machine

TSSK65 twin-screw granulator
screw mixing extrusion unit, the aspect ratio of 40: 1, the main motor 75KW AC
1, Metering screw feeder
1) Feeding motor is AC motor, the main feed motor power: 1.5KW.
2)In feeders, speed control system uses Frequency Control.
4) The motor and reducer with direct coupling, feeding the body with a horizontal agitator, a smooth, even feeding, no bridge.
Reduction ratio of feeder motor: 3: 1
2) Output shaft speed: MAX500RPM
2. The master gear box reducer and torque distribution as one part, using a parallel three-shaft design, compact structure. Deceleration, torque distribution and two output shaft radial bearings are using NSK bearings.
3, lubricating oil cooling system
1) The pump motor 0.55KW
2) Oil type: Shanghai Hai brand 6402 load of gear oil, model 85W / 90GL-4
4, twin-screw granulation machine main motor
1) Main Motor: 75KW (AC motor) Motor Brand Wannan
2) Motor speed (MAX): 1500RPM
5, the screw
1) Screw diameter: 62.4mm
2) L / D = 40: 1
3) Screw the modular
4) The screw core shaft is 40CrNiMoA material, threaded element and the mandrel involute coupling, high strength, load bearing, easy disassembly and assembly.
5) The screw components made of high-speed tool steel W6MO5Cr4V2, high-temperature vacuum hardening heat treatment.
6, barrel
1) Barrel: length L = 240mm / festival, a total of 10 cylinder, made of 45 steel inlay alloy sleeve (α101 material), the cylinder with water cooling.
2) of the barrel for the feeding cylinder, the cylinder is a vacuum cylinder IX, the rest is closed barrel.
7, temperature heating systems segment barrel section ten district heating plate type screen changer head with molten aluminum temperature thermocouple special test material melting temperature, measured by a pressure sensor designed material pressure.
8, the vacuum degassing apparatus
1) SK-0.4 water ring vacuum pump,
2) Drive motor: 1.5KW AC
3) inspiratory volume: 62m / h
4) the amount of working fluid: 0.2 m / h
5) vacuum pipe chrome plated
9, soft water circulation system
10, the interlock control system
11, for filter exchange net system, double position,non stop
XT Plastic Waste Recycling Machine With TSSK Parallel Twin Screw Granulator
XT Plastic Waste Recycling Machine With TSSK Parallel Twin Screw Granulator

more information please contact me

After sales service

XINTING warrants that the equipment shall be manufactured from good raw material and in accordance with the international accepted standard of sound engineering design.

XINTING warrants that the equipment shall be brand new and suitable for the work and shall be NO defects or deficiencies.

XINTING offers 12 month guarantee since the installation in the buyer’s factory. After the guarantee time, XINTING will offer life long spare parts supply

FAQ

Q: What about your machinery(HDPE bottle flakes granulator pelletizing machine with water ring air colling or water cooling hot cutting machine)?
A: Seeing is believing.Our strength technical team guarantee the highest quality,not only of machine,but also of precisely control and final product.

Q:What about the price?
A:Our price is based on reasonable competition.

Q- How to choose proper products you want?
• Please tell us as detail as what you want?
• What’s your raw material it is?
• What’s the final products you want to produce?
• What capacity you want it performance?


Q- How to control the quality?
• We have technical, engineer team design the sample machinery before enter into market
• Production QC team ensure the machine manufacturing quality
• We will running every machine after finished before shipment
• Optional choose by client running the machinery by material
