organic waste shredder / plastic single shaft shredder plastic shredder machine

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

The plastic shredding machine is suitable for crushing wide range of materials especially for plastics (pet bottles , lump, block, film, fiber, container.etc);

wood(block, root, pallet.etc); e-waste(circuit board, mobile, tv. etc); textile; paper and many others.

Description:
Single shaft shredder uses the interaction of movable cutter heads and fixed knives to tear, cut and extrude the material into small size. It can be available for shredding a wide range of materials including plastic, wood, rubber, metal scrap, and paper etc. The cutter head is consists of basic shaft and pieces of quadrangle cutter. There are four edges which are easy to change. ‘V’ shaped rotary cutters are fixed on single shaft. The fixed cutter is mounted at an angle in adjacent to rotary cutter to achieve better cutting. The material is grabbed between 'V' shaped rotary cutters and fixed cutter shreds repeatedly. During the grinding process, the evenly cutting, saving of energy and reducing of noise are ensured by the installation of 'V' shape rotor knives. Also the knives are very easy to install and remove.

1.Simple description of Single Shaft Shredder/Plastic Lump Shredding Machine/Crate Shredder:

Single Shaft Shredder/Plastic Lump Shredding Machine/Crate Shredder which efficiently capable for shredding materials that are quite thick and tough such as large plastic pipes,and especially for recycling different materials.shredder used close packed structures with hyfraulic feeding systerm.it’s featured as advanced equipment ,strong crushing capacity and high output .the machine use of schneide electric or siemens to ensure the safe operation of systerm .

2. Main character of Single Shaft Shredder/Plastic Lump Shredding Machine/Crate Shredder:

1).Precisely processed combined frame made of extra-thick plates; Lange-angle, hexagon prism of power slewing axis; big hopper with big caliber for feeding big volume material.

2). Unique hydraulic pushing system accelerates shredding speed.

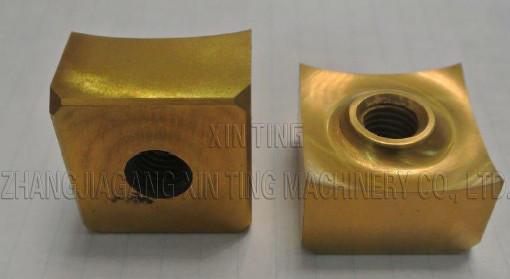

3). Each rotor blades has four cutting edges and fixed blades two edges enabling reutilization after one edges being abraded.

4). PLC control system with automatic overload protection and auto reverse switch.

5). The Single Shaft Shredder/Plastic Lump Shredding Machine/Crate Shredder can be adjusted by customers' special requirements for throughput volume, material to be processed etc.

Components:
