11-132 KW Single Shaft Shredder For Plastic And Electronic Scrap Recycling
11-132 KW Single Shaft Shredder For Plastic And Electronic Scrap Recycling
Specifications
Brand Name :
xinting machine
Model Number :
XT
Certification :
CE ,TUV
Place of Origin :
CHINA ZHANGJIAGANG CITY
MOQ :
1 SET
Price :
ASK ME
Supply Ability :
10 SET PER MONTH
Packaging Details :
FILM PACKAGE
Voltage :
380v 50hz 3 phrase as per client's request
Power(W) :
11-132kw
OEM :
yes
Material of Plastic Crusher Blades :
D2,dc53
Usage :
KS fast pipe shredder Waste Plastic Cusher
keywords :
Hard Disk Shredder Machine Single shaft shredder Waste Plastic Pipe Barrel Bottle Single Shaft Shredder
category :
plastic single shaft shredder
material :
big diameter plastic pipe , plastic lump , hard and soft material
Description

plastic recycling shredder for plastic and electronic scrap recycling

In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)

Features:

1. Low dust, low noise and easy to operate.

2. This machine is suitable to treat the big size of plastic product, such as headpiece material, thick-walled large diameter plastic pipe, film roller, paper, fibre and others.

3. The blade base and blade on the rotary roller can be disassembly. It is easy to clean and maintenance.

4. The rotary blade use V shape installation so that the blade can cut material evenly, it can decrease the noise and decrease energy consumption.

5. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continue to use.

6. Each fixed blade with 2 cutting knife dege, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continue to use.

7. The main axis is drive by gearbox, its running very stably, low noise and strong power.

8. The material push feeding system is hydraulic ways, its running is very stably.

9. PLC program control system, automatically rotating, shut down, safe and reliable running of the machine. The blade can rotate in opposite direction.

Applications:

- plastic lump and plastic block, like PP, PE, PET, PC, ABS, Nylon.

-Plastic pipes

-PP/PE film,Woven bags

- Living garbage,

- Medical waste

-Electronic Waste

-Copper Cable,Aluminum Cable with steel

- Aluminum cans

-Wood,Pallet,tree root,solid wood etc

Plastic single shaft shredder

Quick Details

Condition:New Place of Origin:

Jiangsu, China (Mainland) Brand Name:XINTING
Use:Single shaft shredder Plastic Type:All plastics

Shaft Design:Single Power:22-90kw

Capacity:400-1600kg/h Voltage:According to request

Power(W):22-90kw Dimension(L*W*H):8-20cbm

Weight:2-10T Certification:ISO SGS

After-sales Service Provided:

Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

Warranty:13 month

Belt conveyor:Optional

Metal detector:Optional

Crusher:Optional

Fan suction & silo:Optional

Knife material:SKD-11

Screen size of shredder:50mm

Screen size of crusher:10mm

PLC:Siemens

Contactor:Schneider

Main technical parameter

Model WT300 WT400 WT500 WT600
Quantity of rotated blade 22 20 24 28
Quantity of fixed blade 2 2 2 4
Rotated diameter 150 220 220 220
Input size 300*300 400*400 500*500 600*800
Motor power 4 11 15 18.5
Hydraulic power 0.75 0.75 2.2 2.2
Weight 300 1100 1100 2200
L*W*H 1200*800*1100 1300*1700*2000 1300*1700*2000 1300*1700*2000
Mesh diameter 22 22 22 22
Motor speed 80-100 80-100 80-100 80-100

Main technical parameter

Model WT800 WT1000 WT4080 WT40120 WT40800
Quantity of rotated blade 46 64 46 10 10
Quantity of fixed blade 4 4 4 2 2
Rotated diameter 400 400 400 400 400
Input size 800*800 1000*1000 800*800 120*120 150*150
Motor 37 45 37 1.5 1.5
Hydraulic power 2.2 3 2.2 0.25 0.25
Weight 3100 1500 3100 3000 3000

character:

1. this machine is suitable to treat the big size of plastic product ,such as big diameter plastic pipe ,pressing plastic film and others

2. The blade base and blade on the rotary roller can be disassembly .it is easy to clean and maintenance.

3. The rotary blade adopt the V design, It can decrease the noise and decrease energy consumption.

4. Each rotary blade with 4 cutting knife edge, when the rotary blade is wear, it can be rotated to 90 degree, then the blade can continues use.

5. Each fixed blade with 2 cutting knife edge, when the fixed blade is wear, it can be rotated to 180 degree, then the blade can continues use.

6. The main axis is drive by gearbox, its running very stably, low noise and strong power.

7. the material push feeding system is hydraulic ways , ,its running very stably the machine is control by PLC system ,.the blade can rotated in opposite direction ,and also can close automatic if something unexpected happen , with very high safety service

Plastic Lump Shredding Machine/Crate Shredder can be adjusted by customers' special requirements for throughput volume, material to be processed etc.

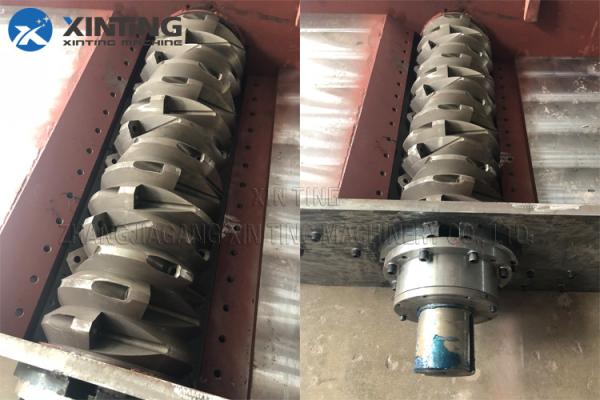

Components:

11-132 KW Single Shaft Shredder For Plastic And Electronic Scrap Recycling

11-132 KW Single Shaft Shredder For Plastic And Electronic Scrap Recycling

11-132 KW Single Shaft Shredder For Plastic And Electronic Scrap Recycling

11-132 KW Single Shaft Shredder For Plastic And Electronic Scrap Recycling11-132 KW Single Shaft Shredder For Plastic And Electronic Scrap Recycling

FAQ

·Q:Are you machinery factory or trading company?

A:We are machinery factory

Q:If we have very special request for the production line,could you help me to do the design?

A:Experienced mechanical designer customized-design provided.

Q: Installation and stuff training available from you?

A: Yes, our engineers will guide machine installation and train your workers.

Q: How can we visit your company and machines?

A : Our factory is in Jinfeng Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport.

Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
