PE PP PVC Pulverizer Machine For Powder , Mini Pulveriser Machine Disk Type
PE PP PVC Pulverizer Machine For Powder , Mini Pulveriser Machine Disk Type
PE PP PVC Pulverizer Machine For Powder , Mini Pulveriser Machine Disk Type
PE PP PVC Pulverizer Machine For Powder , Mini Pulveriser Machine Disk Type
Specifications
Brand Name :
XINTING
Model Number :
XT300 500 800
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
NEGOTIATE
Delivery Time :
30 DAYS
Packaging Details :
FILM PACKAGING
Model Number: :
SMF-400/500/600/800
warranty :
one year
keywords :
PVC pulverizer machine
Plastic type :
PVC,ABS,PS,PP
Condition :
New
Application :
PVC pulverizer machine
Description

PE PP pulverizer PVC pulverizer machine for sale

Product description


Advantages of SMW & SMF series disc type plastic pulverizer machine

1. Safe and simple adjustment of cutting gap.

2. Low energy consumption and high throughput.

3. Innovative and energy efficient design.

4. Easy to maintain and control.

5. Wide range of accessories.

6. Regrinding coarse powder automatically.

7. Dual cooling system.

Features:

Product Description
PVC pulverizer/pp pulverizer/plastic miller is suitable for recycling all kinds of grinding thermoplastic, like PP, PE, PVC,PET,EVA,ABS etc.
PVC Pulverizer/ PP Pulverizer/ Plastic Miller PVC Pulverizer/ PP Pulverizer/ Plastic Miller

Characteristics
1. This type can grind all kinds Hard & Soft materials into 10-80 mesh powders in normal temperature.
2. A widely use range, PVC/PE/PP/ABS/PS/PA/PC Materials.
3. This machine has a much higher output, 2 or 3 times than normal miller, equip with dust collector. An ideal energy saving machine in plastic industries.

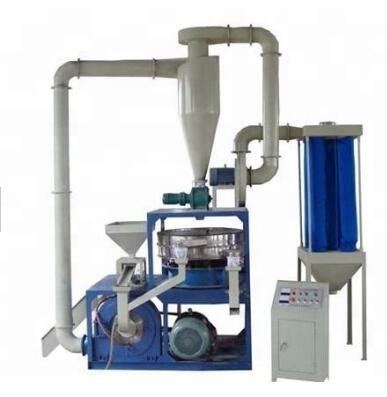

4. This miller includes automatic feeder, main engine, air fan conveying, cyclone separator, automatic shaker screen, auto coarse material milling ,high-efficiency dust collector system.
5. The sword adopts imported stainless steel, durable, can work continously.
6. Knives can be adjusted easily, easily maintained and controlled.

Application :
1. With water cycle and wind cooling,the machine can be applied into processing heat sensitive material.
2. With the tail-wagging air stream(partly eddy flow)produced by the tail-wagging of the main shaft capstan
of the machine(without sieving).
3. Both the board and the cutting blade are made of abrasion-resistant steel,with excellent performance after heat treatment.
4. With severeness of framework,the volume of the machine is quite small.If you open door closure,you can maintain it.It is completely air Proof and without any dust leakage.
5. With winding reclaiming equipment,the machine is features by cooling materials evenly,quick cooling and
some other characteristics.

Machine Model of PVC pulverizer machine:

Technical parameter:

1)SMW series pulverizer machine specification(for PVC)

Model SMW-500 SMW-600 SMW-800
Motor power (kw) 37kw 55kw 75kw
Blow power (kw) 3kw 5.5kw 11kw
Voltage

380V, 50Hz

(or according to customer)

380V, 50Hz

(or according to customer)

380V, 50Hz

(or according to customer)
Total power 41kw 52kw 90.5kw
Blade Dia. 500mm 600mm 800mm
Feeding material size Below 10mm Below 10mm Below 10mm
Output size 40-80mesh 40-80mesh 40-80mesh
Vibration model ZDS-800 ZDS-1000 ZDS-1200
Capacity 200-300kg/h 300-500kg/h 500-600kg/h

Machine size(mm)

(L*W*H)

 2500*2000*3000mm 3200*2600*3200mm 3500*2400*4000mm

2)SMF series pulverizer machine specification(for PE PP ABS, PET, PS, PC, EPS,PA, EVA, etc)

Model SMF-400 SMF-610 SMF-800
Blade disc size 400mm 610mm 800mm
Blade Disc quantity 2 pieces 2 pieces 2 pieces
Shaft rotary speed 4500 rpm 4200 rpm 3700 rpm
Main motor power 30kw 45kw 55kw
Blower power 3kw 5.5kw 7.5kw
Flow valve power 0.75kw 0.75kw 1.1kw
Powder size 10-100mesh 10-100 mesh 10-100 mesh
Cooling method Air cooling & water cooling Air cooling & water cooling Air cooling & water cooling
Capacity

150kg/h (PE)

80kg/h (PP)

20kg/h (PE)

250kg/h (PE)

160kg/h (PP)

350kg/h (PE)

350-400kg/h (PE)

200-250kg/h (PP)

500kg/h (PE)
Machine size 2500*2000*3000mm 2800*2300*3000mm 3200*2800*3200mm

If you want more details of our SMW& SMF series disc type plastic pulverizer, milling machine, please let us know!
