Low Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer Machine
Low Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer Machine
Low Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer Machine
Low Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer Machine
Low Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer Machine
Low Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer Machine
Specifications
Brand Name :
XINTING
Model Number :
PE 500-800
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set for PP PE film flake granulating squeezer machine PP PE film squeezer squeezing dryer machine
Price :
NEGOTIATE
Payment Terms :
L/C, T/T
Supply Ability :
1 set per week
Delivery Time :
30 days
Packaging Details :
film package or wood package
Application :
Plastic Recycling SQUEEZING MACHINE
Automatic grade :
Automatic
Name :
pe film recycling machine
keywords :
PP PE Plastic Film Squeezer Machine
Raw material :
PE films
Machine type :
plastic drying granulate machine
Description
PP PE film flake granulating squeezer machinePP PE film squeezer squeezing dryer machine

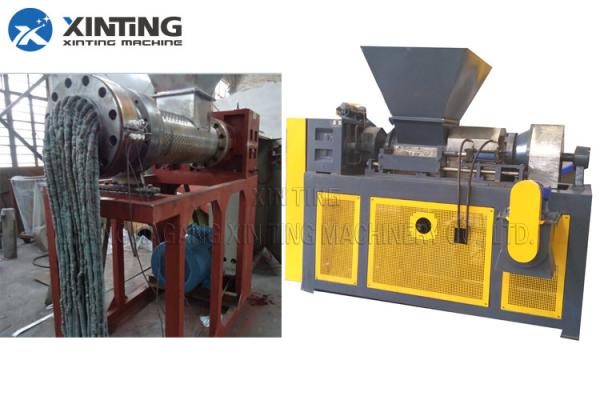

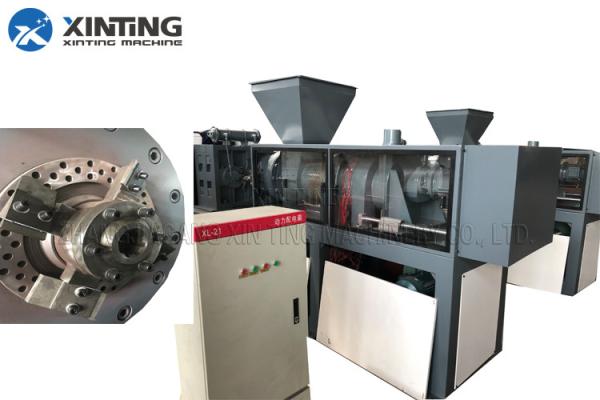

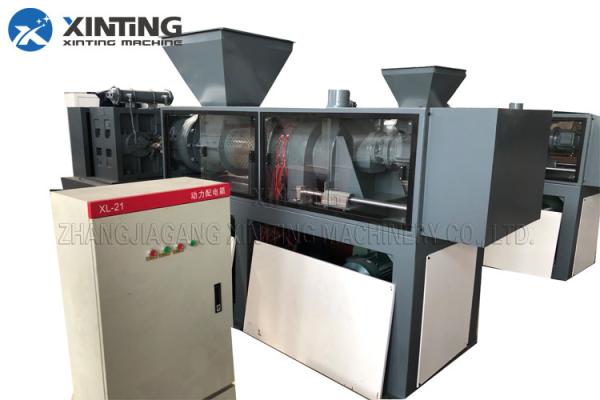

Description of PP PE film flake granulating squeezer machine
This squeezing machine can dry the plastic film . Equipped with rotating
screw, special reduction gear box, which could dewater and drythe film flakes.

The squeeze machine adopts Taiwan and Italian techniques

Model

XT500

XT1000

DIMENSION

2450X800X1800MM

2450X800X1800MM

INLET SIZE

700X670MM

700X670MM

MOTOR POWER

18.5KW

22KW

ROTATED SPEED

42R/MIN

42R/MIN

CAPACITY

500-700KG/H

800-1000KG/H

DRAINAGE METHOD

DRAIN AT THE BOTTOM

MATERIAL OUTLET

FREE FALLING

HYDRAULIC STATION MOTOR

1.5-2.2KW


Features


Features of PP PE film flake granulating squeezer machine

1. This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing design;

2. It is equipped with electric control cabinet, feeder mouth is easy to control the die-
face cutting effect;

3. This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags.
Solve the drying problem in the past.

4. Instead of the dewatering machine, hot blower in the recycling lineand energy saving equipment.

5.Dries the plastic film material by squeezing mechanically. Final mositure content
≤1%

6. By transferring the dirty material to the squeezing machine after the washing phase. The humidity of the material is minimized via the squeezing method and therefore energy consumption for the second phase at the agglomeration machine is minimized.

7.While the squeezing rate was at 10% on the previous models, after modifications and improvements that rate reduced to minimum levels.

Production Flow


Application of PP PE film flake granulating squeezer machine

The plastic film squeeze machine have three functions, drying, semi-melting and
cutting. It can process the film flake into loose plastic ball which is easier for
pelletizing, So its market price is much more higher than the common plastic flake
Low Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer MachineLow Noise HDPE Recycling Machine PP PE Film Flake Granulating Squeezer Machine
