Supported OS

• Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64)
• Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)

Supported APIs

• Windows
  • DirectShow
  • DirectKS
  • Wave API/DirectSound/WASAPI
• Linux
  • V4L2
  • ALSA

Supported Software

• VLC
• VirtualDub
• OBS
• xSplit
• vMix
• VidBlaster
• Wirecast
• Microsoft Media Encoder
• Adobe Flash Media Encoder
• Any other DirectShow/V4L2 encoding/streaming software

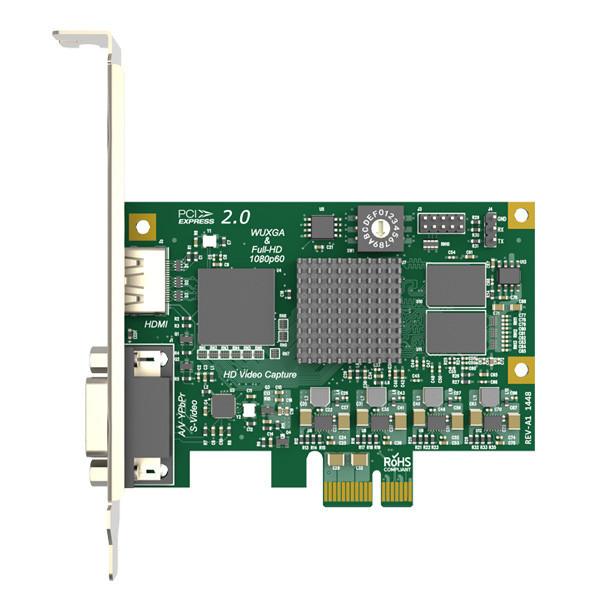

Input Interfaces

• HDMI type A
  • DVI 1.0
  • HDMI 1.4a
• DB9
  • YC (S-Video)
  • Composite video
  • Analog audio (L+R)
  • Component video

Output Interfaces

• PCIe Gen2 x1

Input Features

• Auto scan of video input sources when there is no signal input to the currently selected input source
• Manual selection of video input source
• Auto selection of linked (embedded) audio input source when the video input source changes
• Manual selection of audio input source
• Support for standard crossbar based on video input source selection
• Support for input video resolutions up to 2048×2048 pixels

Component Specific Features

• 12-bit ADC
• Support for RGB & YCbCr (YUV) color formats
• Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
• Support for DMT, CEA, CVT, GTF video timings
• Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
• Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT officially supported)
• Auto detection of RGB & YCbCr color formats
• Auto or manual sampling phase adjustment
• Auto horizontal alignment
• Support for customized video timings
• Support for customized video resolutions for CVT/GTF timings

HDMI Specific Features

• 225MHz HDMI receiver
• Adaptive HDMI equalizer support for cables lengths up to 30M
• Support for customized EDID
• Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
• Full colorimetry support
• Support for 8/10/12-bit color depths
• Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
• Support for up to 8-channel IEC60958/IEC61937 audio streams
• Support for extraction of audio formation information & channel status data
• Support for extraction of video timing information
• Support for extraction of 3D format information
• Support for extraction of Sony/Canon DSLR time code

YC & Composite Specific Features

• 12-bit ADC
• Support for NTSC, PAL and SECAM standards
• Auto detection of video input standard

Video Output Formats

• Support for output image resolutions up to 2048×2048 pixels
• Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
• Support for 4:2:0 8-bit output formats: NV12, I420, YV12
• Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
• Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
• Support for 4:4:4 10-bit output formats: V410, Y410
• More output formats are supported via Pro Capture SDK for DirectKS

Video Processing Features

• Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
• Full 10-bit video processing
• Video cropping
• Video scaling
• Video de-interlacing
  • Wave
  • Blend top & bottom field
  • Top field only
  • Bottom field only
• Video aspect ratio conversion
  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of output aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
• Video color format conversion
  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of output color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range
• Video frame rate conversion
• Video OSD composition
  • Support for PNG OSD image (up to 2048×2048)
  • Support for dynamic loading of RGBA OSD image via SDK

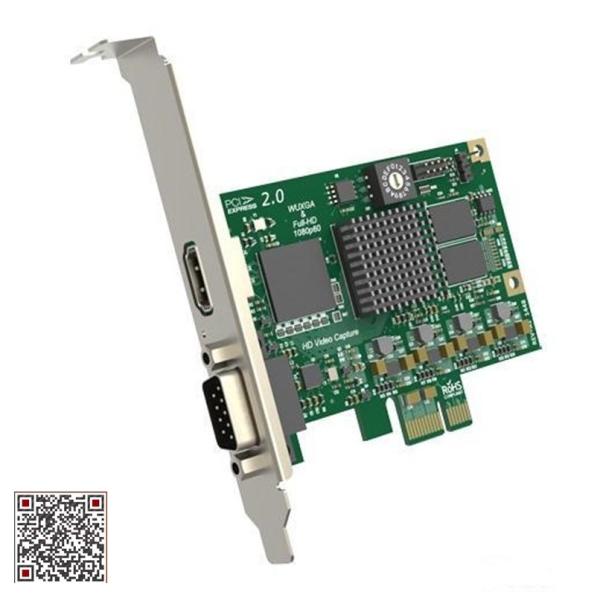

Multiple Cards per System

• Support for multiple cards plugged to one system
• On-board rotary switch to set card number, with 16 positions from 0 to F
• System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
• The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Output Streams

• Unlimited output streams for any one input channel
• Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

Ultra Low Latency Support

• Latency of 64 video lines
• Partial notification mode in SDK
