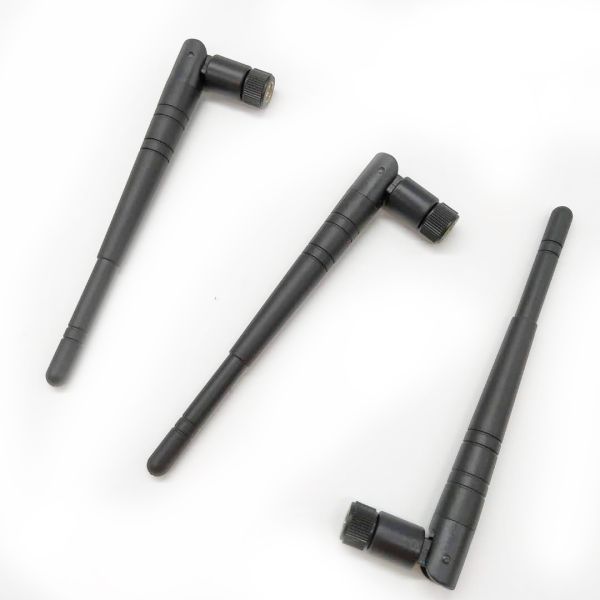

Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector
Specifications
Brand Name :
YUNDING
Model Number :
RB-005
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram,Paypal
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
5-10 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
3g antenna
V.S.W.R :
≤1.5
Frequency Range :
800-2100MHz/custom
Gain :
3DBI
Connector :
sma / custom
Color :
Black/white
Material :
plastic
Current consumption :
30mA
Description

3dB 3G Network Antenna , Directional External Rubber Duck Antenna with Black SMA Connector

Specifications :

• 2G/3G/4G/WiFi/Bluetooth/WLAN


Indoor desktop omni-directional antenna operates in the 3G and provides omni-directional operation,

which largely extends the wireless range and delivers much better wireless performance. The antenna

offers the ipex cable guaranteeing wider compatibility with most of the wireless equipments.

Frequency Range 800-2100Mhz/custom
Directionality Omnidirectional Antenna

VSWR

 <1.5
Use IP camera
Brand YUNDING
Origin China (Guangdong)
Gain 3DBI
Input Impendance 50 ohm
Connector SMA or others

Environment performance test

Project

 Test condition Test results

Storage environment

 Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times		 Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal

Feature:


► wireless


► directional amd wide coverage


► Strong signal reception


► Eexquisite appearance.


► SMA connector or optional

Application:

1.Wi-Fi /WLAN /MEMO /Bluetooth System

2. Router

3. IEEE802.11 WLAN System

4. Wireless Communication System

Our advantages:


1. Low MOQ:2pcs/5pcs/10pcs/30pcs,depends on different items.


2. Fast Delivery Time :5~10days, On-Time Delivery.


3. Good After-Sales Service: we could offer technical support or return service in short time.


4. 1 Year Warranty.


5. OEM/ODM service.


We can give you a promise


• 100% product quality protection


• 100% on-time shipment protection


• 100% payment protection for your covered amount

Directional External 3dB 3G Network Antenna Rubber Duck With Black SMA Connector

Tag:GSM ,LTE ,WIFI
