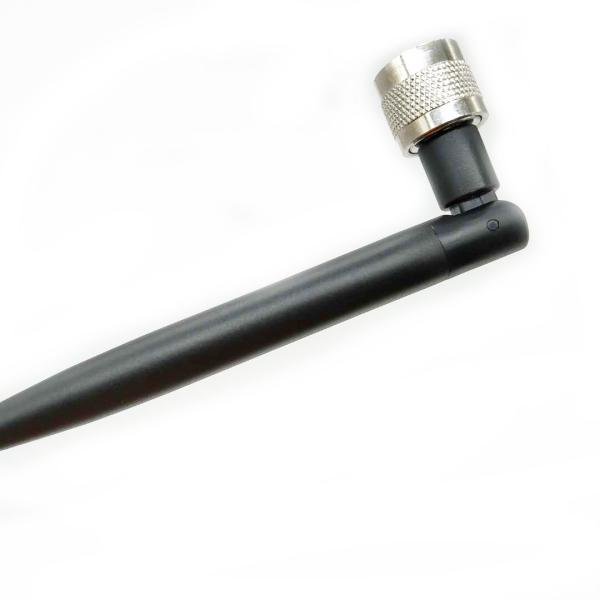

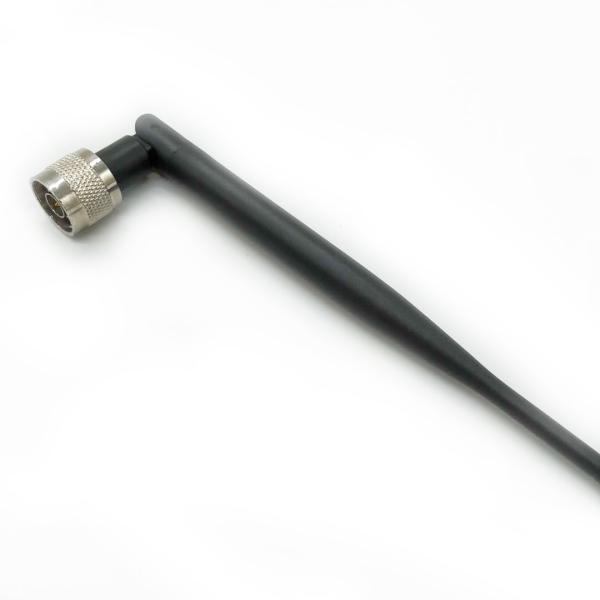

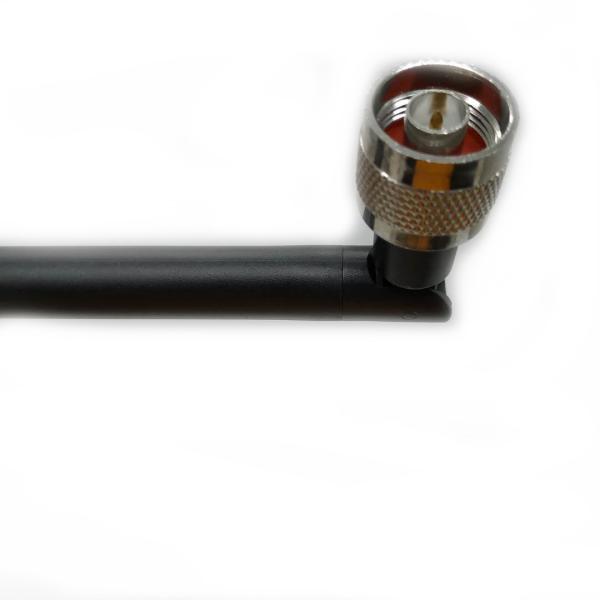

F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
Specifications
Brand Name :
YUNDING
Model Number :
JG-006
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
5-10 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
lte 4g antenna
V.S.W.R :
≤1.5
Function :
2/3/4/G /WIFI
Frequency Range :
800-2700MHz/Custom
Gain :
5DBI
Connector :
F/custom
Description

F Connector 5DBi Gain Black 4G LTE Aerial / 4G WiFi Antenna for ip camera

► Product type:4G LTE antenna

► Place of origin:China

► Price of term: EXW, FOB,CIF

► Payment term:T/T , Paypal,Western Union,MoneyGram

► MOQ:100pcs

► Brand Name: Yinding

Detail Product Description

Frequency: 800~ 2700 MHz

S.W.R: 2.0 MAX

Impedance:　50 ohm

Peak Gain: 5 dB

Connector: RP-SMA Male; SMA Male.

Electrical characteristics and Mechanical
Frequency Range 800-2700Mhz/custom
Gain 5DBI
Input Impendance 50 ohm
Connector SMA / or others
Cable length Custom
Environment
Working Humidity 20~80%
Maximum Input Impedance 50W
Working Temperature -40ºC~+85ºC

Environment performance test

Project

 Test condition Test results

Storage environment

 Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times		 Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal

Features:

1. it have several type :2dbi,3dbi,5dbi,7dbi,9dbi...

2. the connector can be F,SMA ,MCX.IPEX...

3. The antenna can be customized be GSM ,GPRS,LTE,WIFI ...

Application:

1.Wi-Fi /WLAN /MEMO /Bluetooth System

2. Router

3. IEEE802.11 WLAN System

4. Wireless Communication System

F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera

S Parameter Test Data

F Connector 4G LTE Antenna 5DBi Gain Black WiFi 50ohm Impedance For Ip Camera
