Specifications
Brand Name :
YUNDING
Model Number :
YDPCB-004
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
4-15 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
GSM antenna
V.S.W.R :
≤1.5
Function :
2/3/4G/433Mhz /WIFI
Frequency Range :
824-960Mhz
Gain :
3DBI
Connector :
SMA/custom
Color :
White / Custom
Type :
external
Description

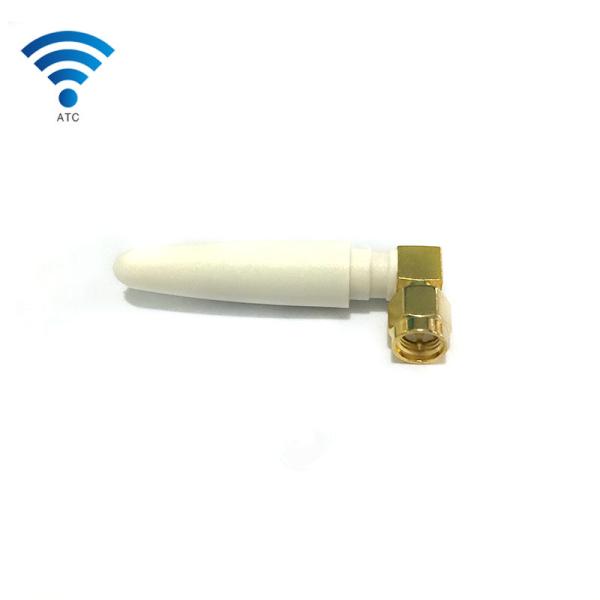

GSM 3G 10dbi High Gain Antenna SMA male connector for 3G Wireless Modem Antenna gsm

Specification:

  • Frequency Range(MHz): 800-960MHz/1710-2170MHz
  • VSWR ≤2
  • Gain(dBi): 10dbi

  • Input Impedance(Ω): 50
  • Connector Type: SMA male with socket folding to 90 degree

Environment performance test

Project

Test condition Test results

Storage environment

Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃~+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times
Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal




FAQ:

  • Is there any tracking Number for my item?

    Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

  • Is the product same as photos?

    Yes, all photos are real. We took these photos by ourselves.


  • Which size can fit me?

    We suggest you look at our size suggestion chart below and our product size chart if you are normal figure. if you have special figure, please contact us ( tell us your height and weight, bust, waist, hip size ).


  • Can you declare lower value?

    Yes, usually we'll declare $10-$20 for small parcels (1-5 pcs). If you have special request please contact us.


  • I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

    Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to
    us, we will give you the best price, thanks!


Advantage:

1. the function, shape and color are optional.

2. Once producing, our QC will check every link, we promise that we will give you the best products.

3. One by one testing to ensure that each parts performance are excellent.

4. In good condition, can be used in a wide range of signal with long life and high relibility.


What we can do for you:


1. OEM - special customize-made, all kinds of funcation and different frequency according to your need.

2. For some special items, you can offer samples.them we can customize-made for you.

3. Factory sales directly.

4. Certification: ISO9001, CE, ROSH


About payment:

1) We accept West Union, TT. Paypal. All major credit cards are accepted through secure payment processor ESCROW.

2) Payment must be made within 3 days of order.


About Shipment:

1) WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

2) Orders processed timely after the payment verification.

3) We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4) The images shown are not the actual item and are for your reference only.

5) SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6) If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

7) Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
