Mini Passive Internal Micro GPS Chip Antenna 25dBi Gain With Sma Connector
Mini Passive Internal Micro GPS Chip Antenna 25dBi Gain With Sma Connector
Mini Passive Internal Micro GPS Chip Antenna 25dBi Gain With Sma Connector
Mini Passive Internal Micro GPS Chip Antenna 25dBi Gain With Sma Connector
Mini Passive Internal Micro GPS Chip Antenna 25dBi Gain With Sma Connector
Mini Passive Internal Micro GPS Chip Antenna 25dBi Gain With Sma Connector
Specifications
Brand Name :
Yunding
Model Number :
KJ142
Certification :
CE, FCC, SGS, ROHS
Place of Origin :
GUA, CN
MOQ :
1pcs
Price :
negociation
Payment Terms :
L/C, T/T, paypal
Supply Ability :
10000pcs a week
Delivery Time :
5-8 work days
Packaging Details :
standard packing
Name :
Active Antenna Gps Tracking
Gain :
25dBi
Connector :
sma
Frequency Range :
1574-1610 MHz
Impedance :
50ohm
Color :
black
Description

Yunding Wholesale Mini Passive Internal Micro GPS Chip Antenna

Product Description

Structure

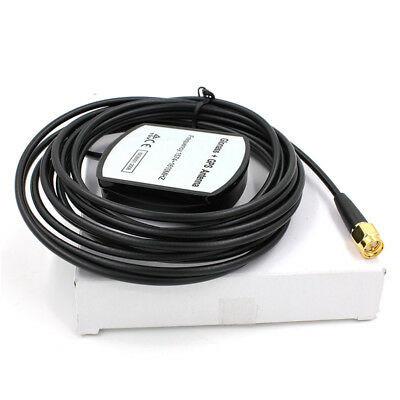

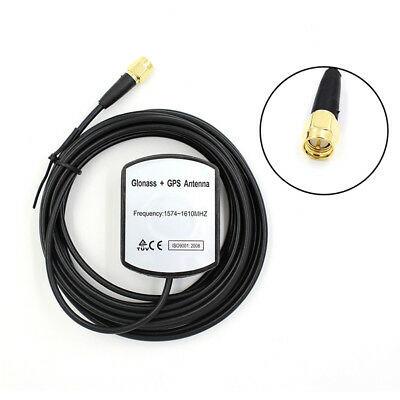

Mini Passive Internal Micro GPS Chip Antenna 25dBi Gain With Sma Connector
Antenna
1 Antenna model 2540A(25mm*25mm*4mm)
2 Frequency Range 1575.42MHz±1.02 MHz
3 V.S.W.R <2.0
4 Band With@10dB >10MHz
5 Gain 5.0 dB typ @70mm*70mm groundplane
6 Impendence 50Ω
Polarization RHCP
LNA
1 Frequency Range 1575.42MHz±1.02 MHz
2 DC Voltage 3.3±0.3V
3 DC current 11±2mA(@3.0V)
4 Gain 25±3 dB(without cable @25°C±10°C)
5 Output VSWR 2.0 MAX
6 Noise Figure 2.2 MAX
Overrall performance(Complete module including RF connector)
1 Frequency Range 1575.42MHz±1.02 MHz
2 DC Voltage 3.3±0.3V
3 DC current 11±2mA(@3.0V)
4 Gain 23 dB Typ
5 Noise Figure 2.2 MAX
6 Band With@10dB >10MHz
7 V.S.W.R <2.0
8 Impendence 50Ω

Material
No Part Name SPEC
1 Antenna Dielectric Ceramics
2 PCB FR4
3 Sheathing ABS (black)
43mm×37mm×13.6mm
4 RF Cable RG174
L=3m (or others)
5 RF Connector SMA-MALE (or others)

Environment Condition
1 Working Temp -40°C~+85°C, 10%~95% RH
2 Storage Temp -55°C~+100°C, 10%~95% RH
3 Vibration

Sine sweep @1.5mmAM

10~55Hz each Axis
4 Waterproof IP66

Testing Curve
Patch Simth& VSWR
Noise Figure
Patch Directional diagram
LNA Gain
