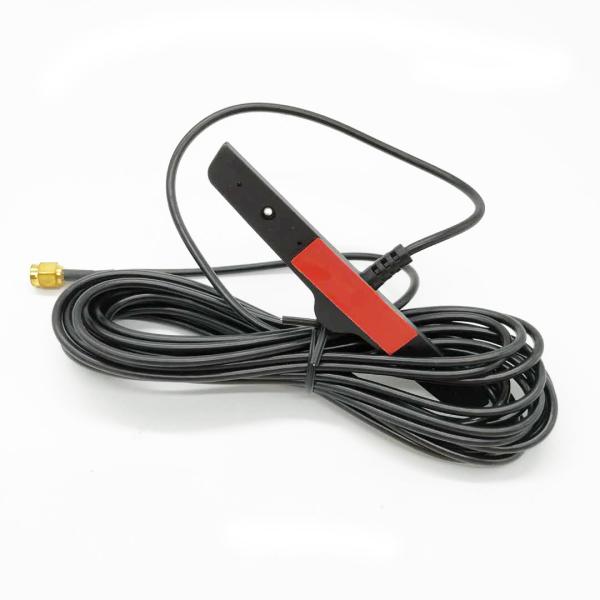

High Gain 5dBi GSM Directional Antenna Long Range Indoor With SMA Male Connector
High Gain 5dBi GSM Directional Antenna Long Range Indoor With SMA Male Connector
High Gain 5dBi GSM Directional Antenna Long Range Indoor With SMA Male Connector
High Gain 5dBi GSM Directional Antenna Long Range Indoor With SMA Male Connector
High Gain 5dBi GSM Directional Antenna Long Range Indoor With SMA Male Connector
High Gain 5dBi GSM Directional Antenna Long Range Indoor With SMA Male Connector
Specifications
Brand Name :
YUNDING
Model Number :
JG-005
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
5-10 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
2g antenna
V.S.W.R :
≤1.5
Function :
2/3/4/G /WIFI
Frequency Range :
800-2100MHz/Custom
Gain :
5DBI
Connector :
SMA/custom
Color :
Custom
Type :
Indoor
Description

High Gain 5dBi GSM GPRS Antenna / Long Range Antenna With SMA male connector

GSM ANTENNA

Electrical characteristics and Mechanical
Frequency Range 800-2100Mhz/custom
Gain 5DBI
Input Impendance 50 ohm
Connector SMA / or others
Cable length Custom
Environment
Working Humidity 20~80%
Maximum Input Impedance 50W
Working Temperature -40ºC~+85ºC

Environment performance test

Project

 Test condition Test results

Storage environment

 Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times		 Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal

Features:

1. it have several type :2dbi,3dbi,5dbi,7dbi,9dbi...

2. the connector can be F,SMA ,MCX.IPEX...

3. The antenna can be customized be GSM ,GPRS,LTE,WIFI ...

4G /LTE ANTENNA

Electrical characteristics and Mechanical
Frequency Range 800-2700Mhz/custom
Gain 5DBI
Input Impendance 50 ohm
Connector SMA / or others
Cable length Custom
Environment
Working Humidity 20~80%
Maximum Input Impedance 50W
Working Temperature -40ºC~+85ºC

High Gain 5dBi GSM Directional Antenna Long Range Indoor With SMA Male Connector
