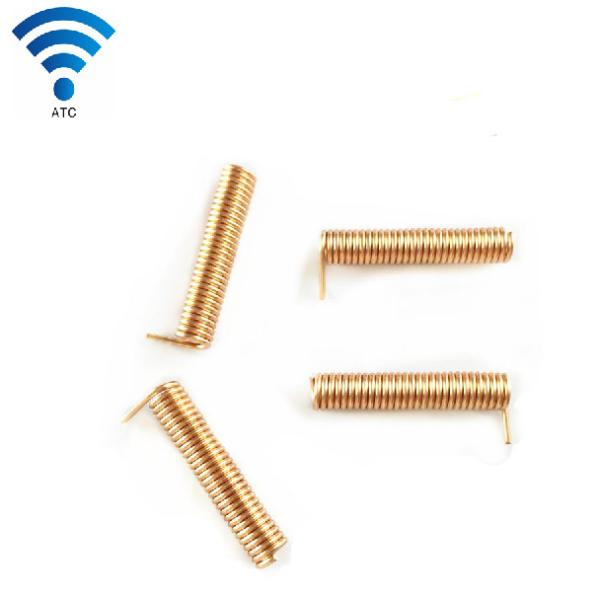

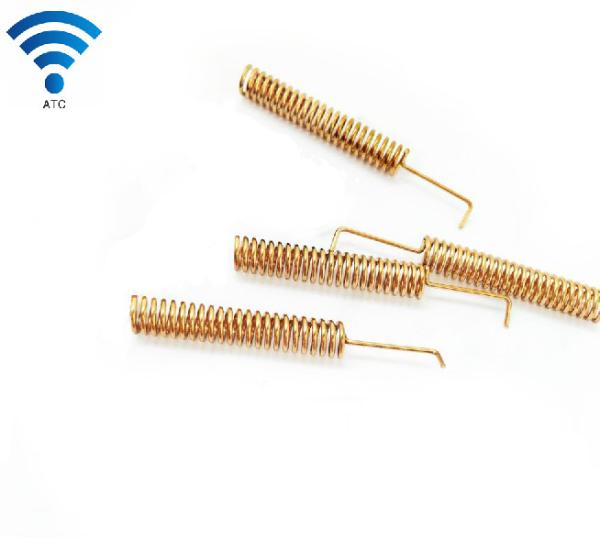

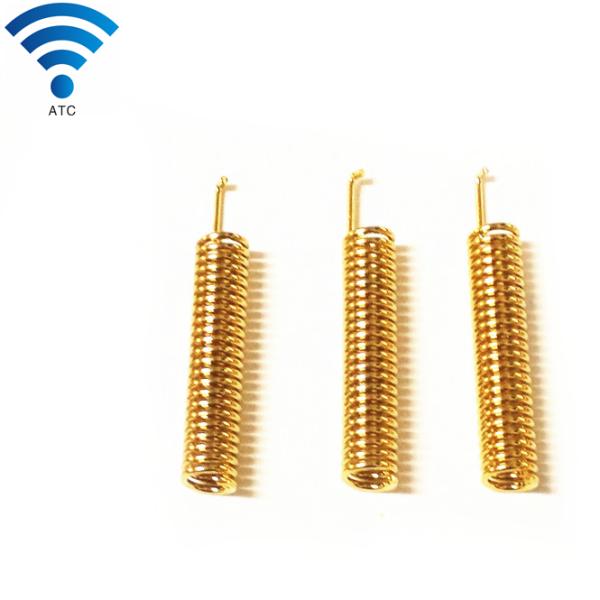

Copper Helical Spring 2DBi GSM GPRS Antenna , Built - In 433 MHz GSM Network Antenna
Copper Helical Spring 2DBi GSM GPRS Antenna , Built - In 433 MHz GSM Network Antenna
Copper Helical Spring 2DBi GSM GPRS Antenna , Built - In 433 MHz GSM Network Antenna
Copper Helical Spring 2DBi GSM GPRS Antenna , Built - In 433 MHz GSM Network Antenna
Specifications
Brand Name :
YUNDING
Model Number :
TH-002
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
5-10 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
GSM Spring Antenna
V.S.W.R :
≤1.5
Function :
2/3G
Frequency Range :
800-2100MHz/Custom
Gain :
2DBI
Connector :
custom
MOQ :
100PCS
Length :
10cm
Description

2dbi GPRS GSM Copper Helical Spring Antenna Built-in Antenna 433mhz Antenna

Specifications:

1. Frequency Range : 800-2100MHz/Custom

2. Gain : 2DBI

3. Input Impendance : 50 ohm

4. Connector : custom

5. Maximum Input Power : 50W

6. Working Temperature : 20-80%

Applications :

Wireless sensor networks

Industrial monitoring and control

Wireless alarm and security systems

Home and building automation

Project

 Test condition Test results

Storage environment

 Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality.

Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality.

Measurement satisfied with electrical and mechanical performance normal.
Vibration test

Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times

 Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal

Copper Helical Spring 2DBi GSM GPRS Antenna , Built - In 433 MHz GSM Network Antenna

Our Services:

1. We are factory sales directly.

2. 100% high quality, all failed parts get free warranty within 30 days after received.


3. Accept 1 years warranty upon customer requirement.


4. Unique designed package for you can be provided upon customer requirement.


5. Special feature and service can be provided upon requirement.


6. Delivery fastly 5-10 days can ship out.
