Specifications
Brand Name :
YUNDING
Model Number :
YDPCB-003
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
4-15 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
Patch antenna
V.S.W.R :
≤1.5
Function :
2/3/4/G /433Mhz/WIFI
Frequency Range :
433Mhz
Gain :
5DBI
Connector :
IPEX/SMA/custom
Color :
Green / Custom
Type :
Indoor
Description

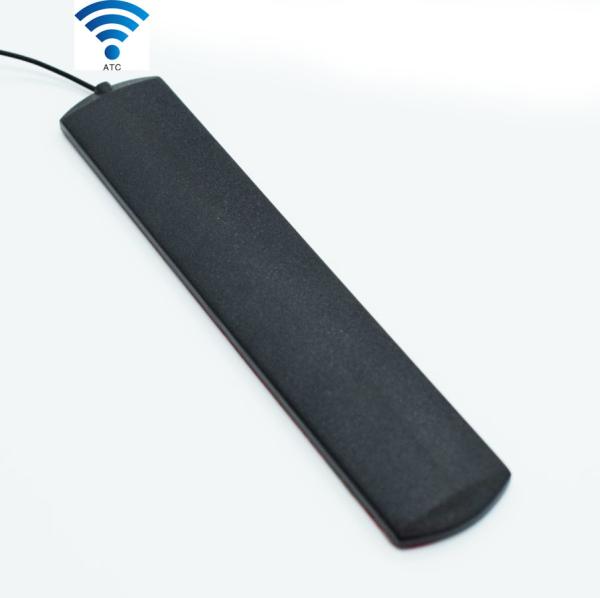

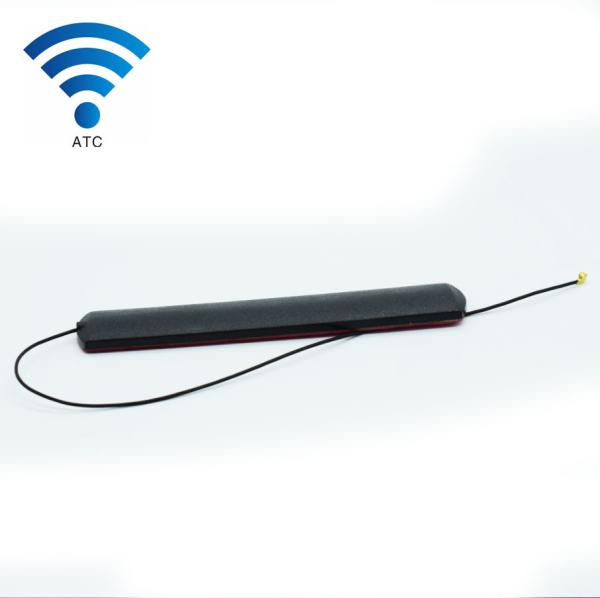

SMA Male Connector High Gain Antenna 433MHz GSM GPRS Patch Antenna

  • Type:patch antenna
  • Frequency: 700~960 MHz / 1700-2700MHZ
  • Gain: 5dbi

  • Connector: IPEX/sma
  • Cable length: 10cm
  • Custom service is offered, please feel free to contact us.

Environment performance test

Project

Test condition Test results

Storage environment

Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃~+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times
Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal

SMA Male High Gain GSM Antenna 433MHz GSM GPRS Patch Antenna Indoor Type



FAQ:

  • Is there any tracking Number for my item?

    Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

  • Is the product same as photos?

    Yes, all photos are real. We took these photos by ourselves.


  • Which size can fit me?

    We suggest you look at our size suggestion chart below and our product size chart if you are normal figure. if you have special figure, please contact us ( tell us your height and weight, bust, waist, hip size ).


  • Can you declare lower value?

    Yes, usually we'll declare $10-$20 for small parcels (1-5 pcs). If you have special request please contact us.


  • I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

    Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to
    us, we will give you the best price, thanks!

Our Services

1. We offer factory price and MOQ is 1000pcs

2. OEM order is warmly welcome, we have 10 years OEM professional experience.

3. Good quality: Our QC staffs inspect product one by one and the defect rate is under 2%, we can assure the best quality.

4. Fast delivery: 3-5 days for sample, 10-15 days for bulk order.

5. Warranty:12 months after-sale service.

6. We promise to give you feedback within 24 hours and find solution in the next 48 hours.



Packing:

Normal packing: 100 pcs per tray or polybag ,1000pcs per carton.

Private packing and label service are available as per your requirement.


Shipping:

1. The parts from us are sure to have quality warranty,and they are double tested before shipping.

2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.

3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
