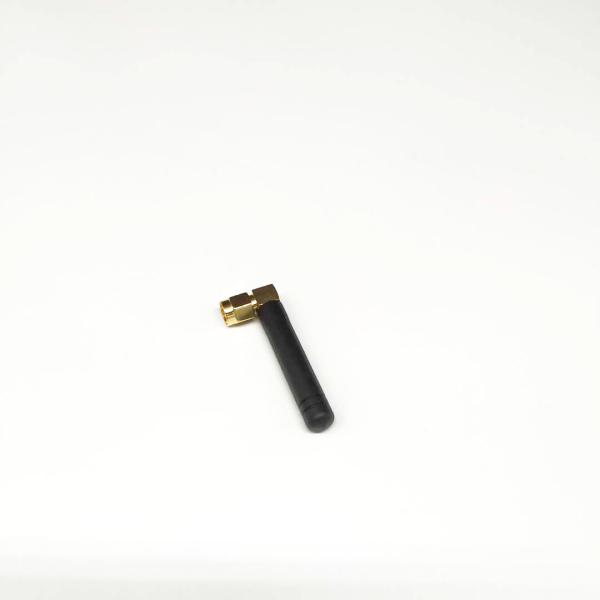

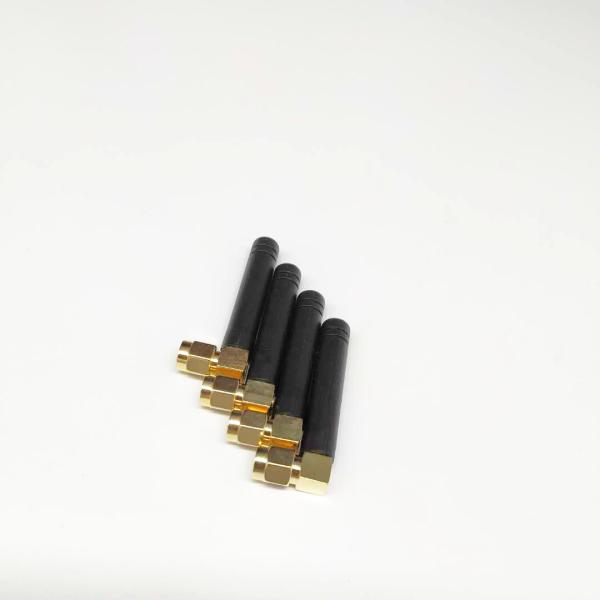

Omni 2DBi Rubber Duck SMA Bending Head GSM GPRS Wireless Antenna
Omni 2DBi Rubber Duck SMA Bending Head GSM GPRS Wireless Antenna
Omni 2DBi Rubber Duck SMA Bending Head GSM GPRS Wireless Antenna
Omni 2DBi Rubber Duck SMA Bending Head GSM GPRS Wireless Antenna
Omni 2DBi Rubber Duck SMA Bending Head GSM GPRS Wireless Antenna
Omni 2DBi Rubber Duck SMA Bending Head GSM GPRS Wireless Antenna
Specifications
Brand Name :
YUNDING
Model Number :
JG-002
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
5-10 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
GSM Antenna
V.S.W.R :
≤1.5
Function :
2/3G
Frequency Range :
800-2100MHz/Custom
Gain :
2DBI
Connector :
SMA/custom
Color :
Custom
Type :
Indoor
Description

Omni Small 2dbi Rubber Duck SMA Bending Head GSM GPRS Antenna Wireless Antenna

Specifications:

1. Frequency Range : 800-2100MHz/Custom

2. Gain : 2DBI

3. Input Impendance : 50 ohm

4. Connector : IPEX/ or others

5. Maximum Input Power : 50W

6. Working Temperature : 20-80%

Application:

1. Bluetooth System

2. Router

3. Wireless Communication System

Project

 Test condition Test results

Storage environment

 Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality.

Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality.

Measurement satisfied with electrical and mechanical performance normal.
Vibration test

Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times

 Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal

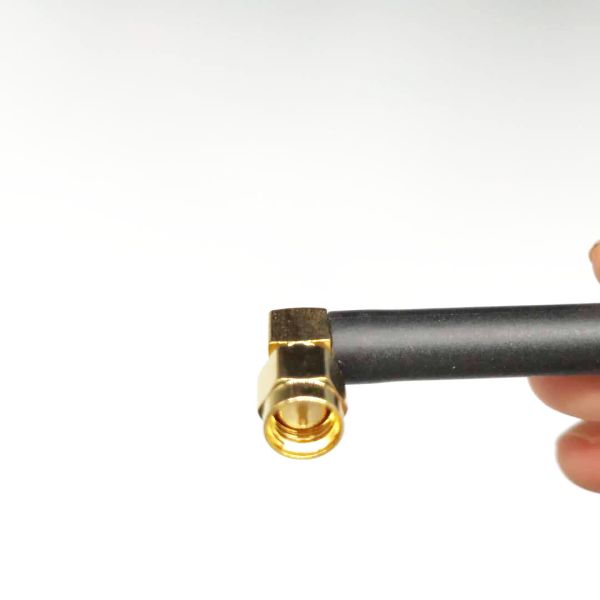

Omni 2DBi Rubber Duck SMA Bending Head GSM GPRS Wireless Antenna

Our Services:

1. We are factory sales directly.

2. 100% high quality, all failed parts get free warranty within 30 days after received.


3. Accept 1 years warranty upon customer requirement.


4. Unique designed package for you can be provided upon customer requirement.


5. Special feature and service can be provided upon requirement.


6. Delivery fastly 5-10 days can ship out.
