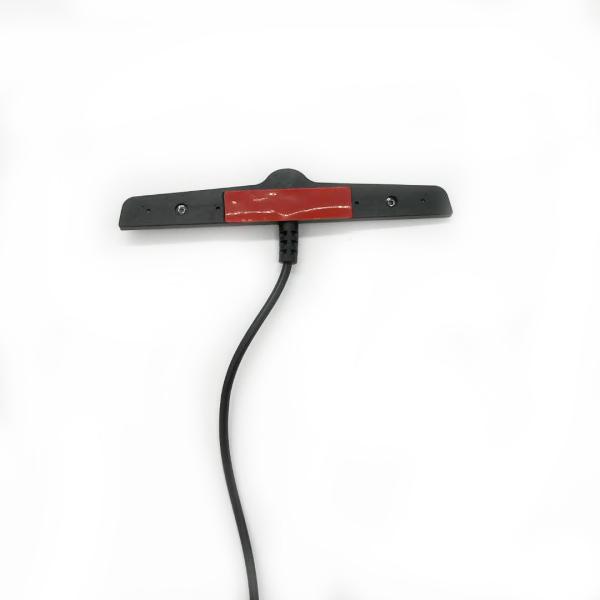

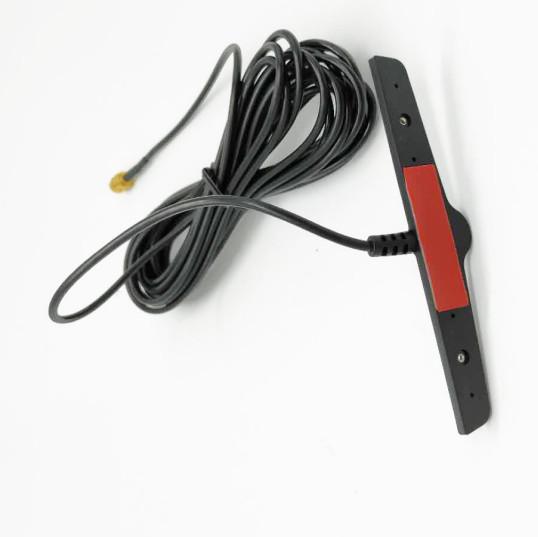

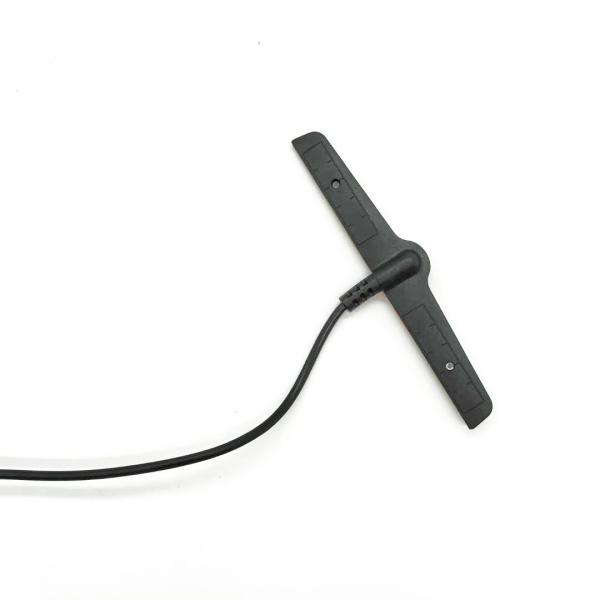

Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz
Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz
Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz
Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz
Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz
Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz
Specifications
Brand Name :
YUNDING
Model Number :
JG-005
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
5-10 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
3G Network Antenna
V.S.W.R :
≤1.5
Function :
2/3/4/G /WIFI
Gain :
5DBI
Cable type :
RG174
Cable length :
3 meter
Description

High Gain 5dBi 3G Network Antenna / Long Range Antenna With 3 meter cable​

Electrical characteristics and Mechanical
Frequency Range 800-2100Mhz/custom
Gain 5DBI
Input Impendance 50 ohm
Connector SMA / or others
Cable length Custom
Environment
Working Humidity 20~80%
Maximum Input Impedance 50W
Working Temperature -40ºC~+85ºC

Antenna - S Parameter Test Data

Test Items Requirements No.1 No.2 No.3 No.4 No.5
C1 S.W.R TBD ok ok ok ok ok
C2 Insertion Loss TBD ok ok ok ok ok
C3 Voltage Breakdown > 500V > 500 > 500 > 500 > 500 > 500
C4 Insulation Resistance > 500 Mohm > 500 > 500 > 500 > 500 > 500
M4 Pull Force Spec ok ok ok ok ok
M6 Dimension drawing ok ok ok ok ok

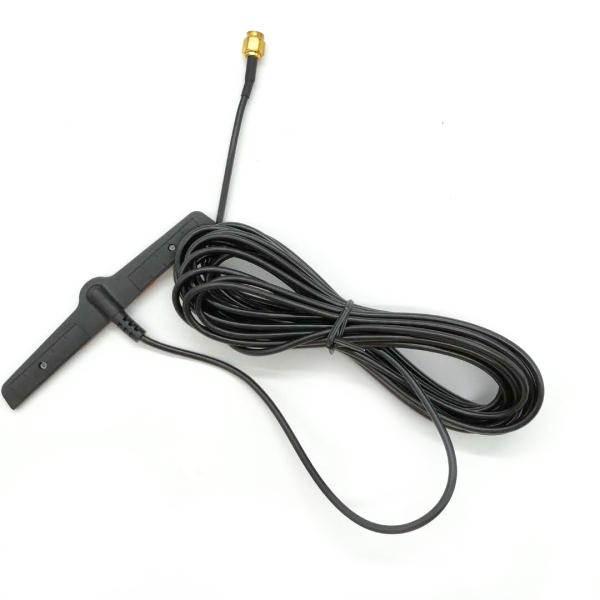

Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz

Characteristics and Reliability Test

Test Items Test Condition and Procedure Requirements
C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification
M1 Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%
M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%
M3 Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage
M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%
M5 Dimension

Inspection of dimension, color, material, package,

surface process

 Directive DUT specification
E1 Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%
E2 Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%
E3 Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%
E4 Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

Features:

1. it have several type :2dbi,3dbi,5dbi,7dbi,9dbi...

2. the connector can be F,SMA ,MCX.IPEX...

3. The antenna can be customized be GSM ,GPRS,LTE,WIFI ...

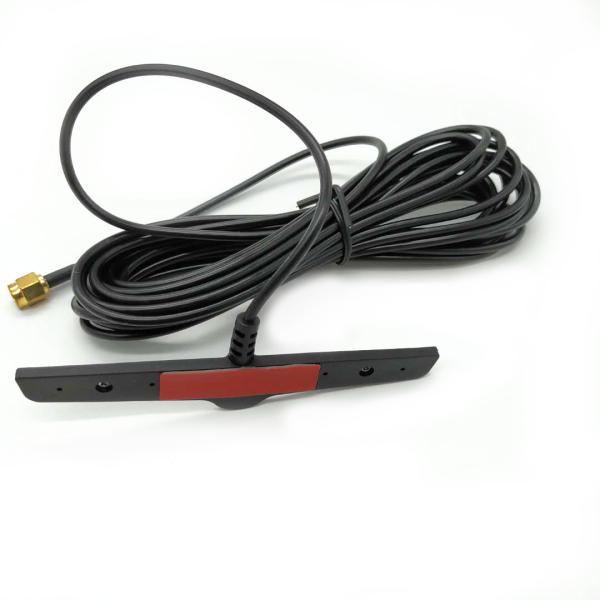

Long Range 3G Signal Booster Antenna High Gain 5dBi 3 Meter Cable 800-2100Mhz
