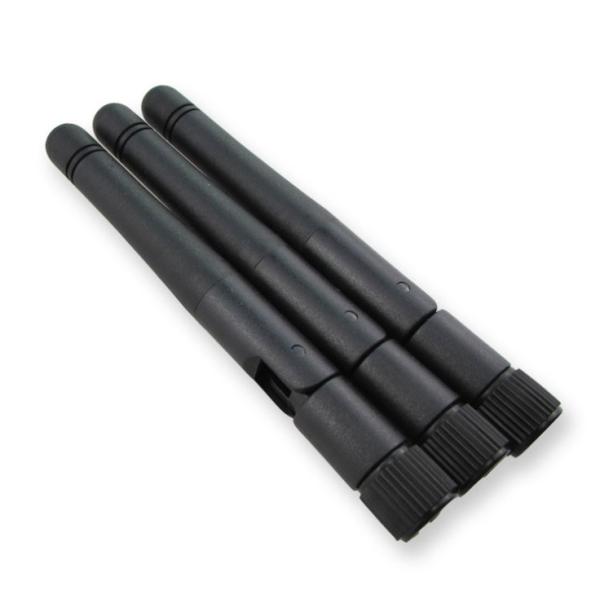

3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance
3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance
3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance
3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance
3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance
3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance
Specifications
Brand Name :
Yunding
Model Number :
KJ131
Certification :
ROHS, CE , SGS, ISO
Place of Origin :
GUA, CN
MOQ :
1pcs
Price :
negociation
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs a week
Delivery Time :
5-8 work days
Packaging Details :
According to the customers' requirements.
Name :
omini wifi antenna
Connector :
SMA
Gain :
3dBi
VSWR :
1.5:1
Impedance :
50 Ohm
Polarization :
Vertical
Length :
1.5M or 3m
Input impedance :
50Ω
Description

3dbi Vertical Polarization External 2.4G outdoor SMA Antenna

Product Description

A. Electrical Characteristics

Working Frequency

2400MHZ~2500MHZ

5150MHZ~5850MHZ

S.W.R.

2400MHZ~2500MHZ: <2.0

5150MHZ~5850MHZ: <2.0

Antenna Gain

See Page 3~8

Efficiency

2400MHZ~2500MHZ:>50%

5150MHZ~5850MHZ:>60%

Impedance

50 Ohm

Polarization / Azimuth

Linear / Omni-directional

B. Mechanical Dimension

Cable Length Of Main Ant

Cable Length Of Aux Ant

C. Material

Stamping Metal

Coaxial Cable

Copper 50 Ohm / O.D.1.8mm

Mini Coaxial Connector

SMA STD PLUG

D. Environmental

Operation Temperature

-40℃~ +85℃

Storage Temperature

-40℃~ +85℃

3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance

3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance3dbi Vertical Polarization External 2.4G Outdoor SMA Antenna 50 Ohm Impedance

Packaging & Shipping

Delivery:

We help you find the best transport mode based on your quantity, schedule and freight budget.

Our Main transportation mode including DHL, UPS, TNT, FedEx, EMS, etc.

Payment:

We accept payment via TT, L/C, Western Union, Paypal and so on.
