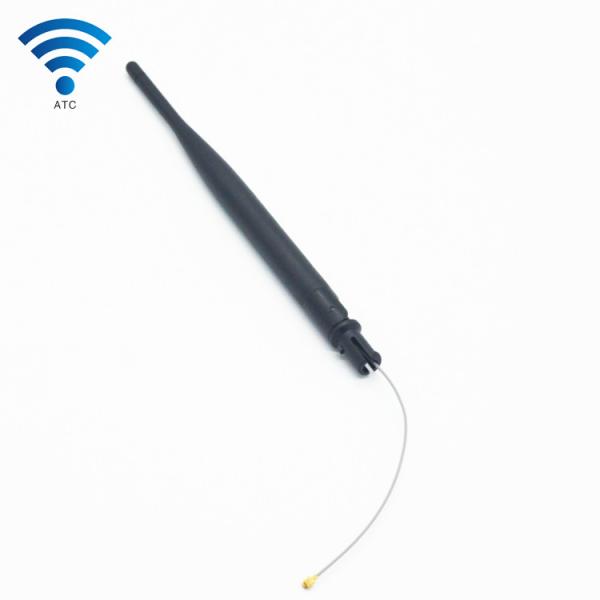

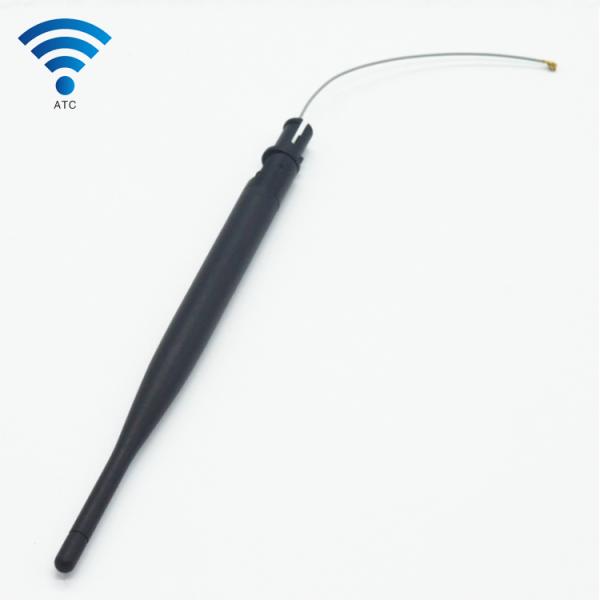

5DBi UMTS Wireless Rubber Terminal 3G External Antenna with IPEX Connector
5DBi UMTS Wireless Rubber Terminal 3G External Antenna with IPEX Connector
Specifications
Brand Name :
YUNDING
Model Number :
JG-005
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100pcs
Price :
negotiation
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
300000 Piece/Pieces per Day
Delivery Time :
5-10 work days
Packaging Details :
1pcs put into a transparent polybag, 40 bags put into a carton.
Product name :
3G antenna
V.S.W.R :
≤1.5
Function :
2/3/4/G /WIFI
Frequency Range :
800-2100MHz/Custom
Gain :
5DBI
Connector :
IPEX/custom
Color :
Custom
Type :
Indoor
Description

5DBI 3G UMTS External Wireless Rubber Terminal Antenna Network Antenna WIth IPEX Connector

Frequency Range 800-2100MHz/Custom
Gain 5DBI
Input Impendance 50 ohm
Connector IPEX/ or others
Maximum Input Power 50W
Working Temperature 20-80%
Cable length Custom

Environment performance test

Project

 Test condition Test results

Storage environment

 Test temperature, humidity, pressure without stated condition as follwings:1.Temperature: -30℃～+80℃;2.Relative humidity: 45%-85%;3,Pressure: 86kpa-106kpa Electrical and mechanical performance normal
High and low temperature test Having 5 times cycle between -40℃ to 70℃,Then in common condition 1-2 hours test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Resistance constant hot and humid test Relative humidity:95±3%,Test temperature: 40℃,last 2 hours ,put it after 5 min test the electrical function .Test products during common condition 1-2 hours ,Then test exterior quality. Measurement satisfied with electrical and mechanical performance normal.
Vibration test Vibrate Frequency:10-55HZ;
Distance :0.35mm;Acceleration :50.0m/s;Sweep frequency cycle:30 times		 Vibration test
Fall test From 1m height fall down 3 times freely (vertical direction) Electrical and mechanical performance normal

Features:

1. it have several type :2dbi,3dbi,5dbi,7dbi,9dbi...

2. the connector can be F,SMA ,MCX.IPEX...

3. The antenna can be customized be GSM ,GPRS,LTE,WIFI ...

Our services:

1. The price is competitive ,because we are factory sales directly.

2. Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis

of our cooperation!


3. Accept 1 years warranty upon customer requirement.


4. Unique designed package for you can be provided upon customer requirement.


5. Special feature and service can be provided upon requirement.


6. Delivery fastly 5-10 days can ship out.

7. We can offer free sample.

5DBi UMTS Wireless Rubber Terminal 3G External Antenna with IPEX Connector
