PBT 2.54mm Pitch Mini Jumper Connector 1-10 Poles Bottom Open 3.0AMP
PBT 2.54mm Pitch Mini Jumper Connector 1-10 Poles Bottom Open 3.0AMP
PBT 2.54mm Pitch Mini Jumper Connector 1-10 Poles Bottom Open 3.0AMP
PBT 2.54mm Pitch Mini Jumper Connector 1-10 Poles Bottom Open 3.0AMP
Specifications
Brand Name :
RealRun
Model Number :
Mini Jumper2.54-2*nP 2P
Certification :
ISO9001, SGS, Rohs, Reach
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
100000pcs/day
Delivery Time :
3~7workdays
Packaging Details :
CAP+Reel Tape Packing/Tube Packing
Place of origin :
GuangDong, China
Brand :
RealRun
Applycation :
PCB
Type :
Mini Jumper Connector
Insulator :
PBT+30%G.F (UL94V-0)
Contact :
Brass
Contact Plating :
Au or Sn over Ni
Current Rating :
3.0AMP
Withstanding Voltage :
1000V AC Min
Insulation Resistance :
1000 MΩ Min
Contact resistance :
20m Ω Max
Operation Temperature :
-40℃ to +105℃
Description

Product Description:


Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

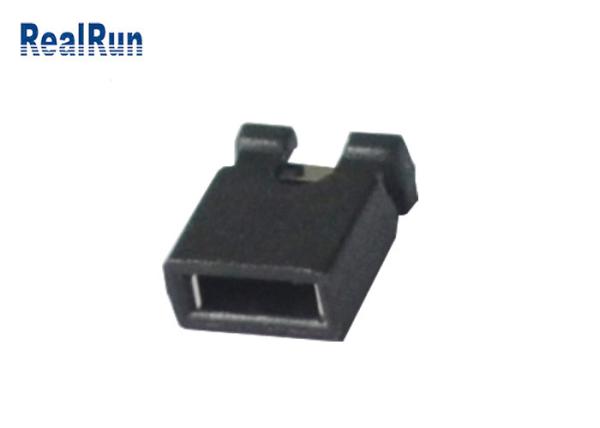

2.54mm Pitch Mini Jumper Connector 1-10 Poles Bottom Open Type

Product features: High temperature resistant, stable, powerful and long life cycle


Product function: Jumper cap is a small square plastic cap on hardware such as Motherboard and hard disk, whose interior is metal. The function is to change the circuit. The voltage drop generated by the metal connection line used to connect the two demand points of the circuit board (PCB) changes the performance.

Scope of application: It is usually used in printed circuit board of electronic products.

Specification:

Product Name Mini Jumper Connector
Place Of Origin GuangDong, China
Brand Name RealRun
Applycation PCB
Number Of Pins 2 Pin
Gender Female
Insulator Color Black
Insulator Material PBT+30%G.F (UL94V-0)
Contact Brass
Contact Plating Au or Sn over Ni
Current Rating 3.0 AMP
Withstanding Voltage 1000V AC/Minute
Insulation Resistance 1000 MΩ Min
Contact resistance 20mΩ Max
Operation Temperature -40℃ to +105℃
Packing PE bag, Tube, Tube+Cap, Tray, Tape & Reel
OEM/ODM Accepted

PBT 2.54mm Pitch Mini Jumper Connector 1-10 Poles Bottom Open 3.0AMP

Please feel free to contact us and we will send you the drawings you need.

PBT 2.54mm Pitch Mini Jumper Connector 1-10 Poles Bottom Open 3.0AMP

FAQ

Q: Are you trading company or factory?

A: We are a factory with 15 years of connector manufacturing experience, almost all of our products are made by ourselves.

Q: When i can get quotation?

A: After you confirm the products you need, we will offer you a quotation.

Q: Do you accept customization?

A: Yes,we can accept customization as long as it is within our business scope, but you need to provide us with your demand quantity.
