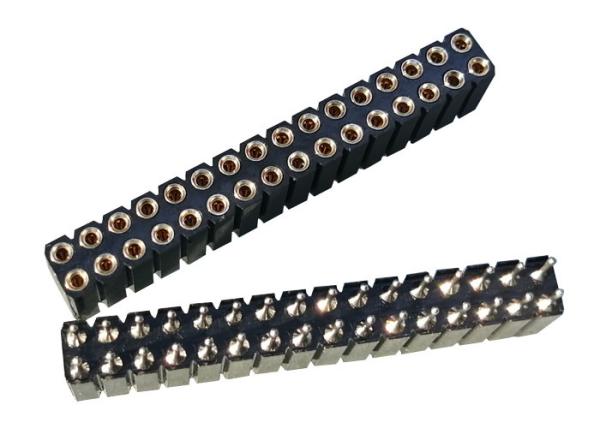

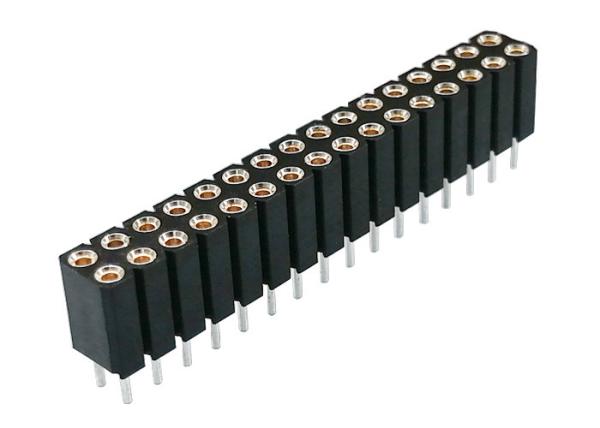

2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment
Specifications
Brand Name :
RealRun
Model Number :
FH2.54*7.0-2*nP 32P
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
100000pcs/day
Delivery Time :
3~7workdays
Packaging Details :
Tube Packing
Certification :
ISO9001, SGS, Rohs, Reach
Color :
Black
Insulator Material :
PPS
Contact Material :
Brass Machined CuZn38Pb2
Withstanding Voltage :
500V AC/minute
Operation Temperature :
-40~+105℃
Insulation Resistance :
1000MΩ Min
Contact Resistance :
4mΩ Max
Mechanical Life Cycle :
Min.200
Description

2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment

Name Female Header Connector
Pitch 2.54mm
Type DIP type
Insulator Color Black
Insulator Flammability UL 94V-0
Current Rating 3A
Contact Resistance(max) 4m ohm Max
Operating Voltage 60V AC/DC
Insulation Resistance(min) 1000M ohm Min at DC 500V
Contact materials Gold/Tin plating
Contact Plated Tin or gold over nickel
Insulator material PA6T
Processing Temperature -40~105℃
Packing Tube Packing
OEM/ODM Accepted
Mechanical Life Cycle Min.200

2.54mm Round Pin Female Header DIP Type Straight For Medical Equipment

What is a PCB Connector?
Printed Circuit Board connectors are connecting systems, which are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. As PCBs are not hard-wired to each other and can be assembled later in a production process, providing an easy method of Design for Manufacture.

PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Why Choose RealRun

Research and Development Capability:

Strong research and development capability on product designing and mould developing makes Realrun able to evaluate the new product,which could help clients save the time cost.

OEM/ODM Producing

RealRun has our own assembly lines from electroplating,stamping,moulding,injection and packaging.

Quality Guarantee

Strictly following the demands of ISO9001-2015,RealRun is able to produce products of highest quality.

Competitive Price

More than 10 years of producing experience,Realrun is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
