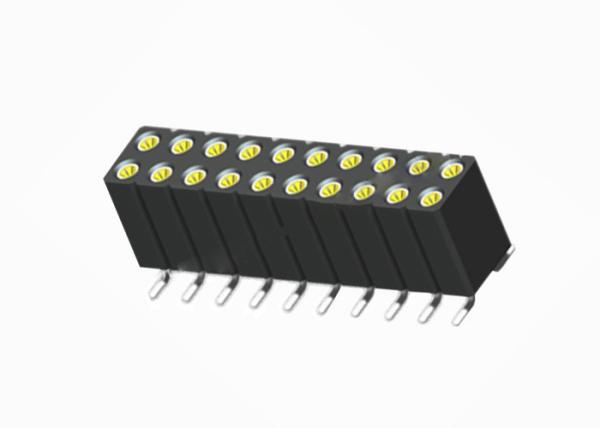

High Temperature Round Female Pin Header Connector 1.27mm Pitch Dual Row

Description

1. Female header connector is a kind of connector.

2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.

1. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.

Category

1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.

2. According to whether it has convex points, the convex points are divided into half convex and full convex.

3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.

4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.

5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.

6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal;

Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.

We are specialized in electronic connectors, electronic wire harnesses and hardware development,

if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
