Specifications
Brand Name :
RealRun
Model Number :
FH2.54*7.0-2*nW 10W
Certification :
ISO9001, SGS, Rohs, Reach
Place of Origin :
China
MOQ :
2000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,PayPal
Supply Ability :
100000pcs/day
Delivery Time :
3~7workdays
Packaging Details :
CAP+Reel Tape Packing
Type :
round pin header
Pitch :
2.0mm
Current Rating :
2A
Contact Resistance(max) :
20M ohm
Insulation Resistance(min) :
1000M ohm
Insulator Flammability :
UL 94V-0
Withstanding Voltage :
500AC
Application :
All Electric Area
Description

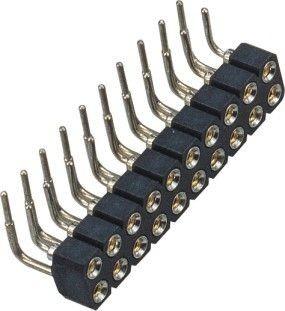

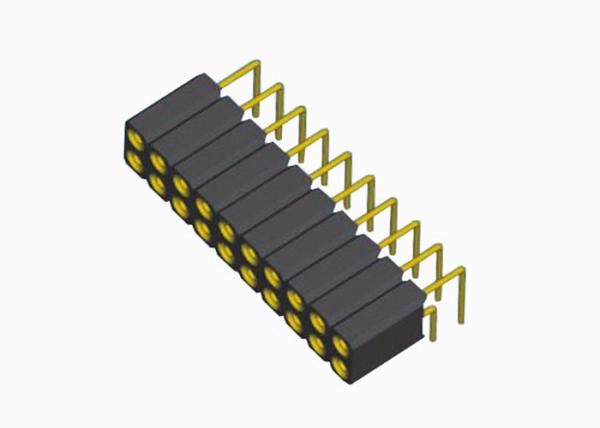

Through Hole Female Double Row Header Connector 10 Pin Right Angle Type

Specifications

1. Pitch:2.0mm(0.1'')

2. Connector Name: PCB Connector/Female Pin Header

3. Insulation Material:PA9T UL 94-V0

4. Contact Material: Copper Alloy

5: Mounting Type: Through Hole

6: Number of Row: Four Row

7: Contact Finish: Gold Over Nickel

8: Termination: Solder

9: Color:black/White

10: Current Rating:2A

11: Withstand Voltage:500V AC/DC

12: Contact Resistance:20mΩ Max

13: Pin Length: Customization

14: Pin Available:2Pins to 80Pins

15. Number of Row:3Rows

16. Fastening Type:Push-Pull

17. Contact Type:Female Socket

18. Style:Board to Board

19. Platic Height: 6.35mm

Product name: 2.0mm female pin connector
1. product features: the use of a wide range of environmental protection, fire resistance, high temperature,oxidation resistance.
2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
3. scope of application: It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.

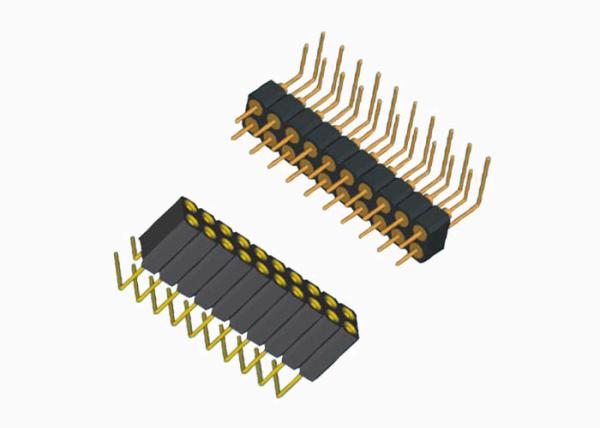

Through Hole Female Double Row Header Connector 20 Pin Right Angle Type

Packaging Details

Most product not have MOQ,the common connectors are in stock.Small order can be accepted.

Box/Tape & Reel/ Tray/ Tube/ PE Bag.

special Packing depend on customer.

Shipping

If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.

Payment

Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.

Why choose RealRun

1. Professional R & D, production, sales as one of the industrial companies;

2. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities;

3. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification;

4. Main board to board, board to line, line to line, I / O, IC base, storage connector;

5. The products are widely used in mobile devices, LED displays, computer peripherals, automobile peripherals, power peripherals, medical equipment, household appliances and monitoring equipment, TV and TV set-top boxes, instruments and meters, network peripherals and other equipment products.

After-sales service:

1. We deal with you complains within 24 hours.

2. Production configuration design using modular approach can be developed and produced according to user need all kinds of special speciation production to meet the diverse need of the market.

3. All staffs in our company with philosophy of “Integrity, dedication, truth-seeking, enterprise”, would be dedicated to provide high quality service and products for you, and wish to create better future with you!
