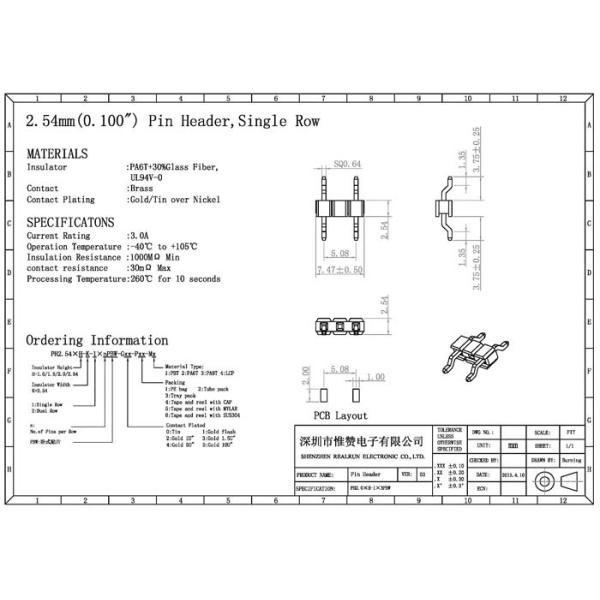

Single Row Pin Header Connector Double Horizontal 3 Pin Header Fireproof

Description

1. features: the use of a wide range of environmental protection fireproof anti-oxidation conductive and strong, to be blocked in the circuit between the circuit or isolated, to the bridge function, assume the current or signal transmission task.

2. material: it is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.

3. scope of application: pin are widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. As the most reliable connection plate to plate, wire to board provides.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. Number of stitches: 02 to 80; 02 to 100;

9. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.

Q: How can we get a quote?

A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.

Why choose RealRun?

1. We has already acquired ISO9001, TS16949 quality management system certification; ISO14001, QC080000 environment and management systems certification and OHSAS18001 occupation health safety management system certification.

2. All the products are available for customized packaging according to your demand.
3. Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.

4. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities;
